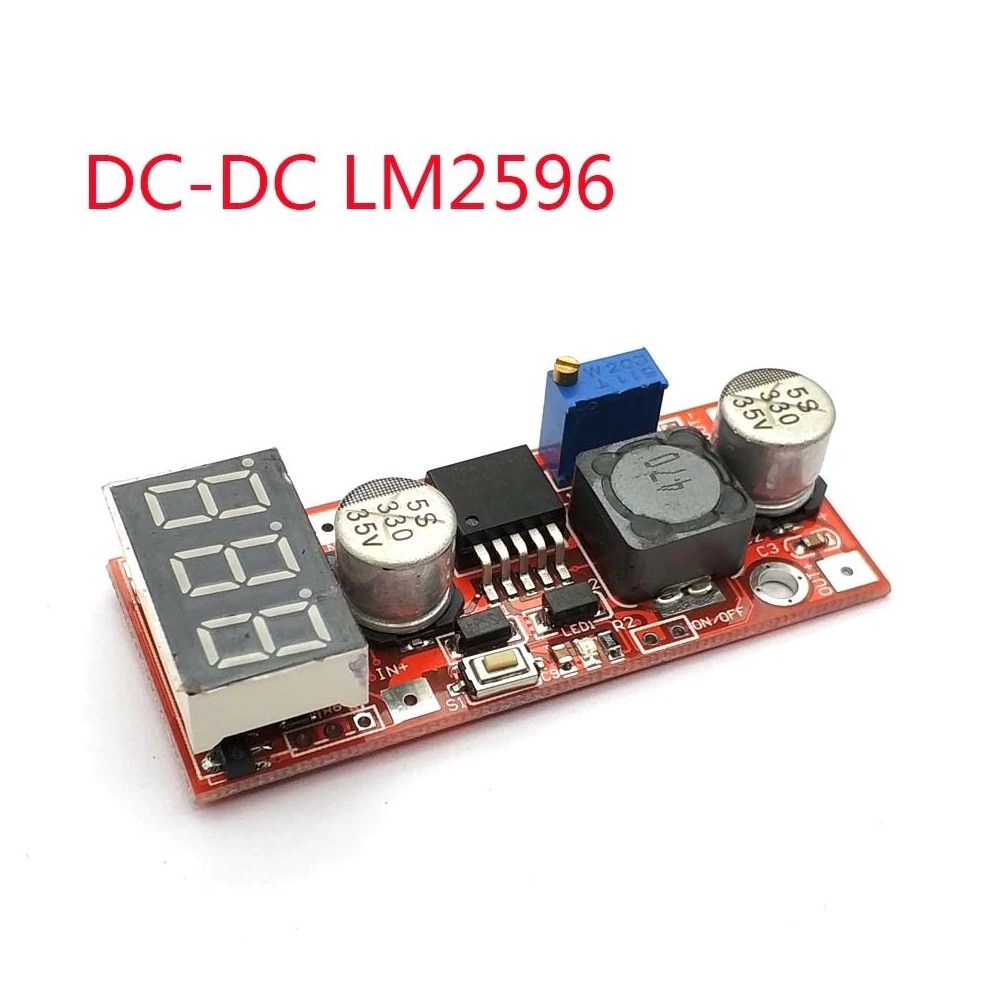

DC Adjustable Buck Step Down Converter Lm2596 Voltage Regulator Voltmeter
Description:
In :Input positive
In-:Input negative
Out :Output positive
Out-:Output negative
Dimensions: 62 *26 *14mm(length*width*height)
Ripple peak:About 100mV
Display color:Red/Green/Blue/Yellow
Input voltage: 4.5-28V
Output power:15W maximum
Output voltage:1.3v-25v (step-down mode, the input voltage must be 2v higher than the output voltage)
Output current:1.5A
Ripple frequency:About 150KHZ
Voltage meter accuracy:±(5 1 digit)
Static power consumption:Typical about 20mA
Function
Operating mode description
With key off function, and reduce power consumption.
Power state can be freely defined
Input and output voltages can be displayed alternately
On/0ff output status, high level means output off, low level means output on. (note: high level (3.3v), the maximum output current 5mA)
Output voltage mode:Boot default display it, LED indicator off
Input voltage mode:Press button switch to it , LED indicator on
Alternating mode:Press button again input/output voltage alternately display (3s). Press button again, switch to output voltage display

Package included:
1 Pcs DC Adjustable Buck Step Down Converter
