1 db - Új TP4056 1A Lipo akkumulátor töltőkártya töltő modul lítium akkumulátor DIY MICRO port Micro USB TP4056 lítium
110 Ft41% megtakarítás
186 Ft
Nincs adó

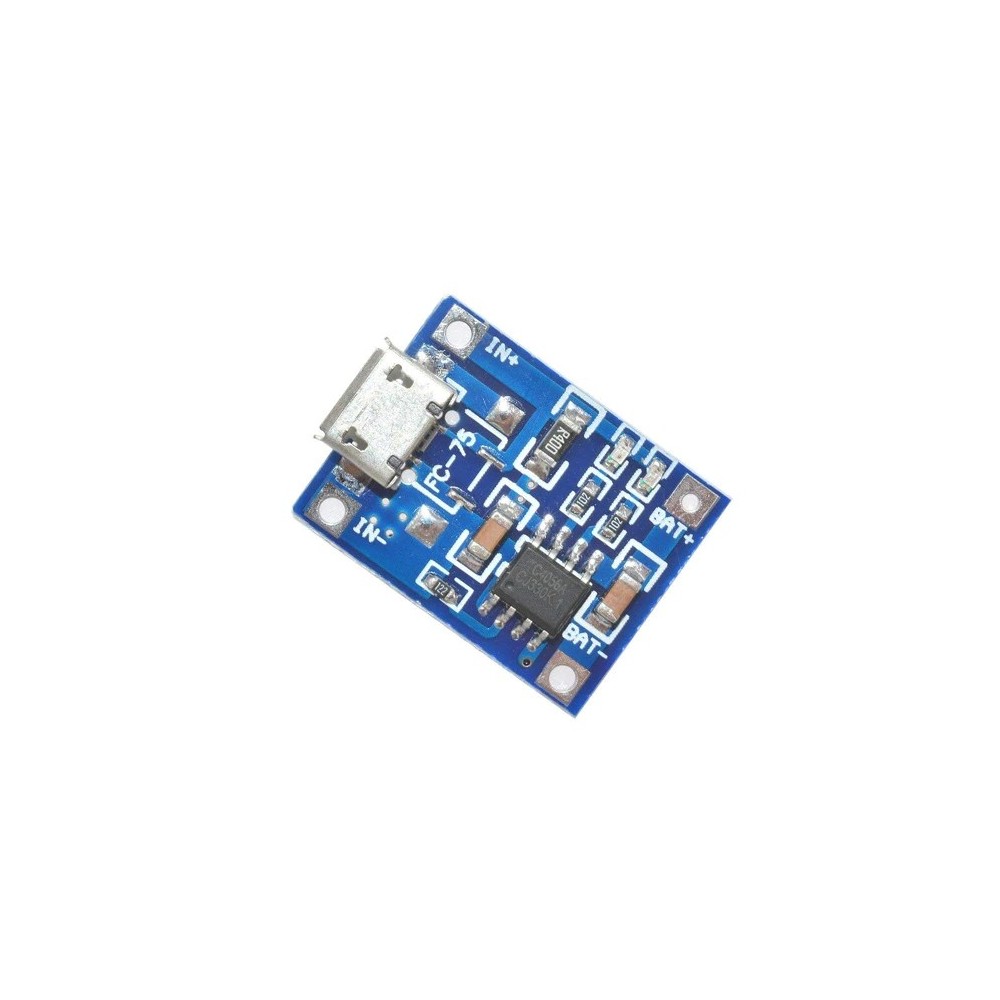

TP4056 1A Lipo Battery Charging Board Charger Module lithium battery DIY MICRO Port Micro USB TP4056 Lithium Battery Charger Charging chip TP4056, simple circuit, good protective value, high charging precision Automaticlly adjust the output current from 100 to 1000ma by simply changing the fixed resistor on the circuit board Power Indicator: Red stands for charging, Green stands for fullly charged It can be used to charge for one pcs of lithium battery or serval parallel lithium batteries Input interface: Micro interface,Item Size: 25mm*19mm. 1. Feature 1). Charging chip TP4056, simple circuit, good protective value, high charging precision 2). Complete mechanical automation processing 3). Automaticlly adjust the output current from 100 to 1000ma by simply changing the fixed resistor on the circuit board 2. Application It can be used to charge for one pcs of lithium battery or serval parallel lithium batteries 3. Parameter Input voltage: 4.5~5.5V Full charging voltage: 4.2V Max output current:1A Power Indicator: Red stands for charging, Green stands for fullly charged Input interface: Micro interface Item Size: 25mm*19mm Notes: 1). The Ampere meter can only be connected to 5v input port of the module 2). It is better that the charging current is 37% of the battery capacity. For example, the charging current should be 400 for the 1000mAH battery 3). The connection wire should not be too thick 4). Make sure the connect point is good 5). If the input voltage is too high, For example 5.2V or even 5.5V, then the charging current will be less than 1000mA, it is normal. When the voltage is too high, the chip will automatically reduce the charging current to protect the chip from burnning damage. Besides, it is normal that the chip feel hot when the working temperature of the chip is around 60℃
A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra! Új TP4056 1A Lipo akkumulátor töltőkártya töltő modul lítium akkumulátor DIY MICRO port Micro USB TP4056 lítium akkumulátor töltő New TP4056 1A Lipo Battery Charging Board Charger Module Lithium Battery DIY MICRO Port Micro USB TP4056 Lithium Battery Charger TP4056 1A Lipo Battery Charging Board Charger Module lithium battery DIY MICRO Port Micro USB TP4056 Lithium Battery Charger Charging chip TP4056, simple circuit, good protective value, high charging precision Automaticlly adjust the output current from 100 to 1000ma by simply changing the fixed resistor on the circuit board Power Indicator: Red stands for charging, Green stands for fullly charged It can be used to charge for one pcs of lithium battery or serval parallel lithium batteries Input interface: Micro interface,Item Size: 25mm*19mm. 1. Feature 1). Charging chip TP4056, simple circuit, good protective value, high charging precision 2). Complete mechanical automation processing 3). Automaticlly adjust the output current from 100 to 1000ma by simply changing the fixed resistor on the circuit board 2. Application It can be used to charge for one pcs of lithium battery or serval parallel lithium batteries 3. Parameter Input voltage: 4.5~5.5V Full charging voltage: 4.2V Max output current:1A Power Indicator: Red stands for charging, Green stands for fullly charged Input interface: Micro interface Item Size: 25mm*19mm Notes: 1). The Ampere meter can only be connected to 5v input port of the module 2). It is better that the charging current is 37% of the battery capacity. For example, the charging current should be 400 for the 1000mAH battery 3). The connection wire should not be too thick 4). Make sure the connect point is good 5). If the input voltage is too high, For example 5.2V or even 5.5V, then the charging current will be less than 1000mA, it is normal. When the voltage is too high, the chip will automatically reduce the charging current to protect the chip from burnning damage. Besides, it is normal that the chip feel hot when the working temperature of the chip is around 60℃ 1005003122210679/2 - modules
TP4056 1A Lipo Battery Charging Board Charger Module lithium battery DIY MICRO Port Micro USB TP4056 Lithium Battery Charger Charging chip TP4056, simple circuit, good protective value, high charging precision Automaticlly adjust the output current from 100 to 1000ma by simply changing the fixed resistor on the circuit board Power Indicator: Red stands for charging, Green stands for fullly charged It can be used to charge for one pcs of lithium battery or serval parallel lithium batteries Input interface: Micro interface,Item Size: 25mm*19mm. 1. Feature 1). Charging chip TP4056, simple circuit, good protective value, high charging precision 2). Complete mechanical automation processing 3). Automaticlly adjust the output current from 100 to 1000ma by simply changing the fixed resistor on the circuit board 2. Application It can be used to charge for one pcs of lithium battery or serval parallel lithium batteries 3. Parameter Input voltage: 4.5~5.5V Full charging voltage: 4.2V Max output current:1A Power Indicator: Red stands for charging, Green stands for fullly charged Input interface: Micro interface Item Size: 25mm*19mm Notes: 1). The Ampere meter can only be connected to 5v input port of the module 2). It is better that the charging current is 37% of the battery capacity. For example, the charging current should be 400 for the 1000mAH battery 3). The connection wire should not be too thick 4). Make sure the connect point is good 5). If the input voltage is too high, For example 5.2V or even 5.5V, then the charging current will be less than 1000mA, it is normal. When the voltage is too high, the chip will automatically reduce the charging current to protect the chip from burnning damage. Besides, it is normal that the chip feel hot when the working temperature of the chip is around 60℃
