1 db LCD 12864 grafikus intelligens kijelző vezérlőkártya adapterrel és kábellel a rámpákhoz 1.4 RepRap Mendel Prusa 3D nyomtató alkatrészei
1PC LCD 12864 Graphic Smart Display Controller Board With Adapter And Cable For Ramps 1.4 RepRap Mendel Prusa 3D Printer Parts

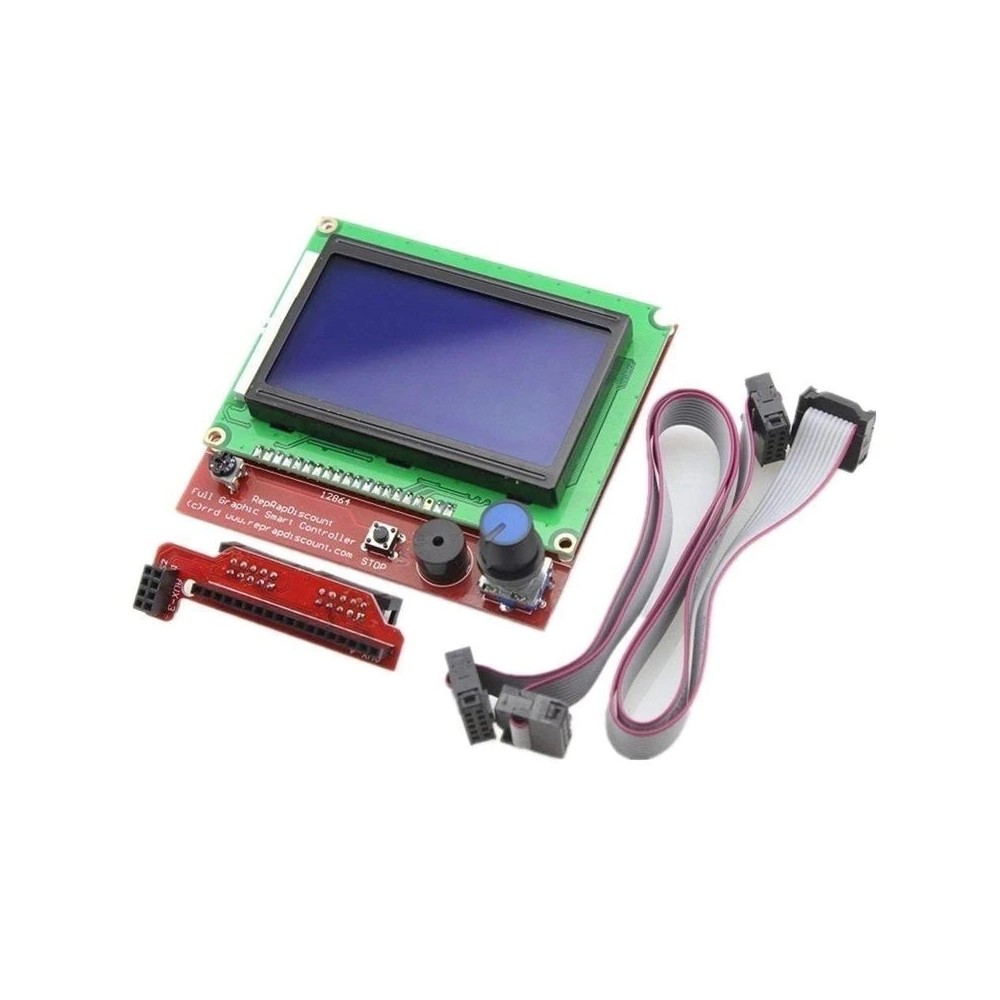

LCD 12864 Graphic Smart Display Controller Board with Adapter and Cable for 3D Printer Ramps 1.4 RepRap 3D Printer Mendel Prusa for Arduino
This full graphic Smart Controller contains a SD-Card reader, an rotary encoder and a 128 x 64 dot matrix LCD display. Please note: With a SD Card base on back,SD card not included.
This product is a LCD display module with Blue backlight, small and light appearance, suitbale for copiers, fax machines, laser printers, industrial test equipment, networking equipment etc.
Features:Using a large screen 12864LCD(3.2’’), it can support 8 GB
With a SD Card base on back, put slicing file into the SD Card and select the file on the LCD, then can be printing
Adapter for RAMPS 1.4 RepRap Electronics is included
Plug and play on the RAMPS, but need to modify the firmware to support
Proudct comes encoder parameter adjustment can be achieved, and the file selection print
Logic working voltage: 5.0 V
LCD drive voltage: 5.0 V
Backlight: Blue
View area: 7.0cm(L) * 4.4cm(W)
Dots size: 0.48mm (L) * 0.48mm (W)
Dots pitch: 0.52mm (L) * 0.52mm (W)
LCD type: STN (Blue)
Viewing angle: 6 o’clock
Operating temperature: -20 to 70°c
Storage temperature: -30 to 80°
Package :
1 x 12864 LCD Control Panel (SD card not included)
1 x Connector
2 x Cable
