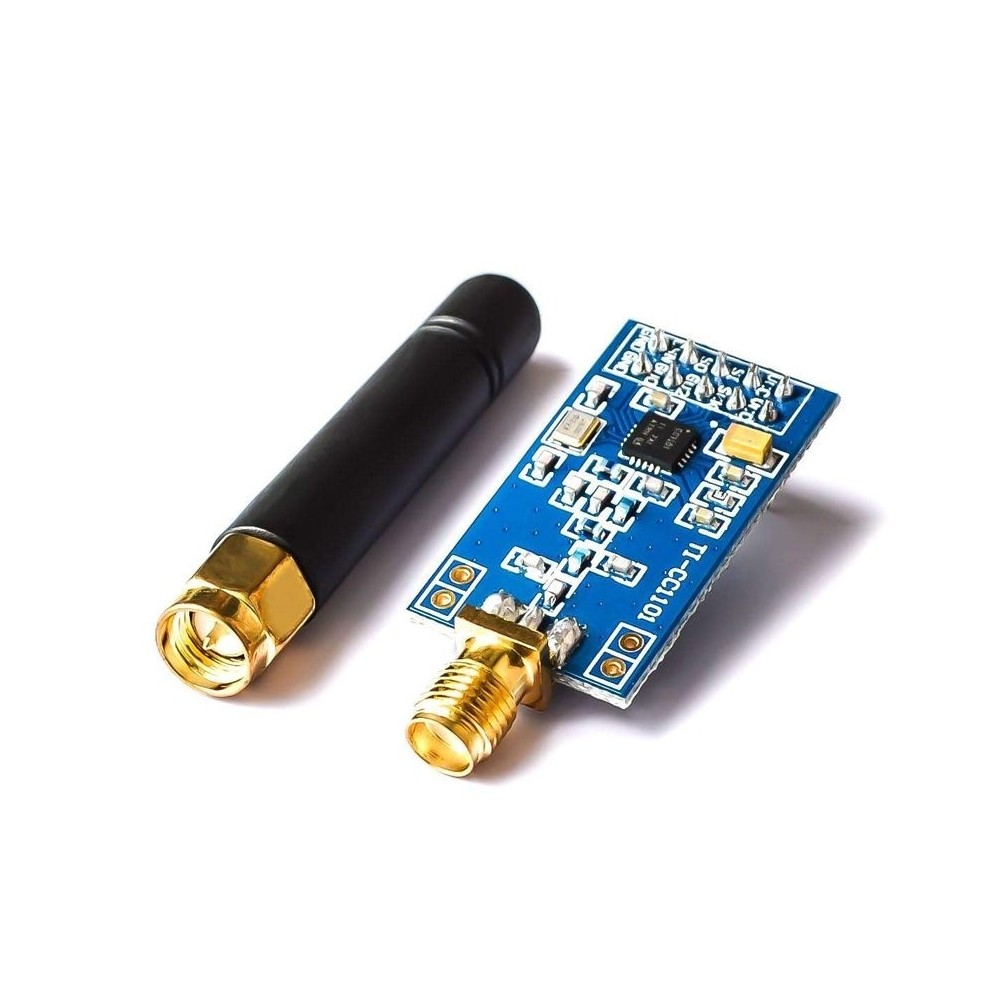

Új C1101 vezeték nélküli modul SMA antenna vezeték nélküli adó-vevő modullal Arduino 433MHZ-hez
Új C1101 vezeték nélküli modul SMA antenna vezeték nélküli adó-vevő modullal Arduino 433MHZ-hez
348 Ft
59% megtakarítás
848 Ft
Nincs adó
Features:
(1) Operating voltage: 1.8 V 3.6 V We recommend close to 3.3 V but not more than 3.6 V
(2), 915, 868, 433, 315 mh ism and SRD spectrum
(3) the highest rate is 500 KBPS, 2 FSK, GFSK and MSK modulation mode
(4) high sensitivity (DDM less than 1.2 KBPS-1% , 110 packet error rate)
(5) error detection and hardware control incorporated in the CDN Multipoint Communication Address
(6) low current consumption (RX, 15.6 mA, 2.4 KBPS, 433 Mhz)
(7) programmable control output power and support for all frequencies up to 10 DBM
(8) Wireless activation function, compatible with the low power electromagnetic activation function, will wake up the low power sleep mode equipment
(9) Supports automatic cleaning before access to the transmission channel (CCA), listen to the transport system
(10) frequency synthesizer with fast frequency jump system
(11) The address of the module can be configured software, software programming is very practical Separation by immersion
(12) Standard interface for integrated applications
(13) Separate 64 bytes RX and TX FIFO data
(14) Transmission distance: 200 m (depending on the specific environment condition and the transmission speed setting, etc.)
(1) Operating voltage: 1.8 V 3.6 V We recommend close to 3.3 V but not more than 3.6 V
(2), 915, 868, 433, 315 mh ism and SRD spectrum
(3) the highest rate is 500 KBPS, 2 FSK, GFSK and MSK modulation mode
(4) high sensitivity (DDM less than 1.2 KBPS-1% , 110 packet error rate)
(5) error detection and hardware control incorporated in the CDN Multipoint Communication Address
(6) low current consumption (RX, 15.6 mA, 2.4 KBPS, 433 Mhz)
(7) programmable control output power and support for all frequencies up to 10 DBM
(8) Wireless activation function, compatible with the low power electromagnetic activation function, will wake up the low power sleep mode equipment
(9) Supports automatic cleaning before access to the transmission channel (CCA), listen to the transport system
(10) frequency synthesizer with fast frequency jump system
(11) The address of the module can be configured software, software programming is very practical Separation by immersion
(12) Standard interface for integrated applications
(13) Separate 64 bytes RX and TX FIFO data
(14) Transmission distance: 200 m (depending on the specific environment condition and the transmission speed setting, etc.)
