1db HC-06 HC06 RS232 vezeték nélküli soros 4 tűs Bluetooth RF adó-vevő modul, támogatja a Slave és Master módot Arduinohoz

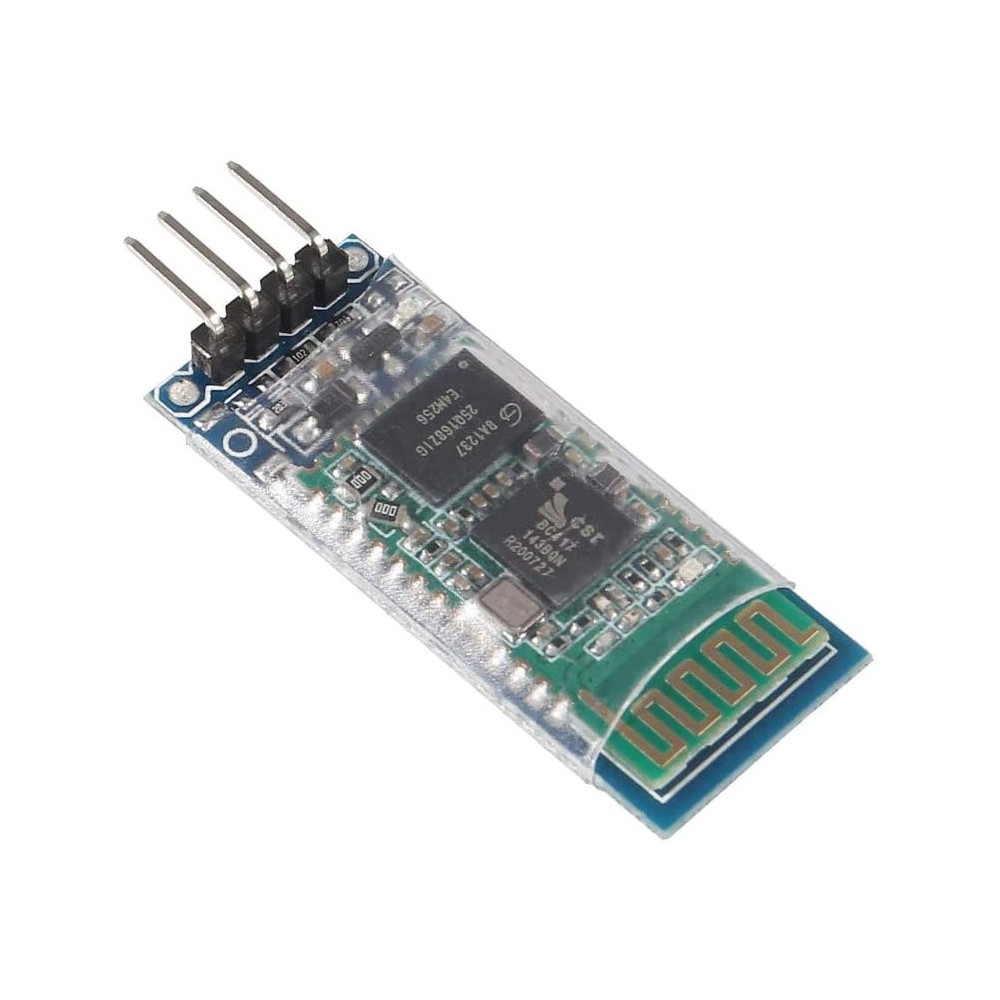

1pc HC-06 HC06 RS232 Wireless Serial 4 Pin Bluetooth RF Transceiver Module Support Slave And Master Mode For Arduino
working voltage 3.6V to 6V
With LED indicator light, use 150mA and 3.3V regulation chip. With VCC、GND、TXD、RXD foot for the Bluetooth
Small size, low power consumption,high sensitivity for send and receive.
It's HC-06 Bluetooth module; Allows your device to both send or receive the TTL data via Bluetooth technology without connecting a serial cable to your computer.
used for short-range data wireless transmission,such as Bluetooth wireless data transmission,Industrial remote control, telemetry,Traffic, underground positioning, alarm,Smart home ect.
Note:
Input power supply 3.3~6V, Prohibit more than 7V
No "Automatically prevent power supply peversing func", so please correctly connect power supply
We advise to install "Bluetooth master module"
The "State" is output foot for LED status, when bluetooth "Unconnected", output "Pulse" ; when bluetooth "connected", output "High level", we can determine the states from "MCU"
If only the board , No any "Bluetooth Function "

Specification:
Bluetooth version: V2.0 EDR
Operating voltage: 3.3V
Default Baud Rate: 9600,8,1,n.
Signal coverage: 30ft
Commercial Series: Bluetooth module board Series
With LED indicator light, use 150mA and 3.3V regulation chip.
With VCC、GND、TXD、RXD foot for the Bluetooth
With "Re-seach" button(ON/OFF/WAKE foot for it , external MCU outinput "High level" can control module to re-seach) Compatible with bluetooth master module"、slave module"or master-slave(whole) module.
Input voltage: 3.3~6V
