LCR-TC1 1,8" TFT LCD kijelző Több méteres tranzisztor tesztelő dióda trióda kondenzátor ellenállás teszt mérő ESR LCR NPN PNP MOSFET COD

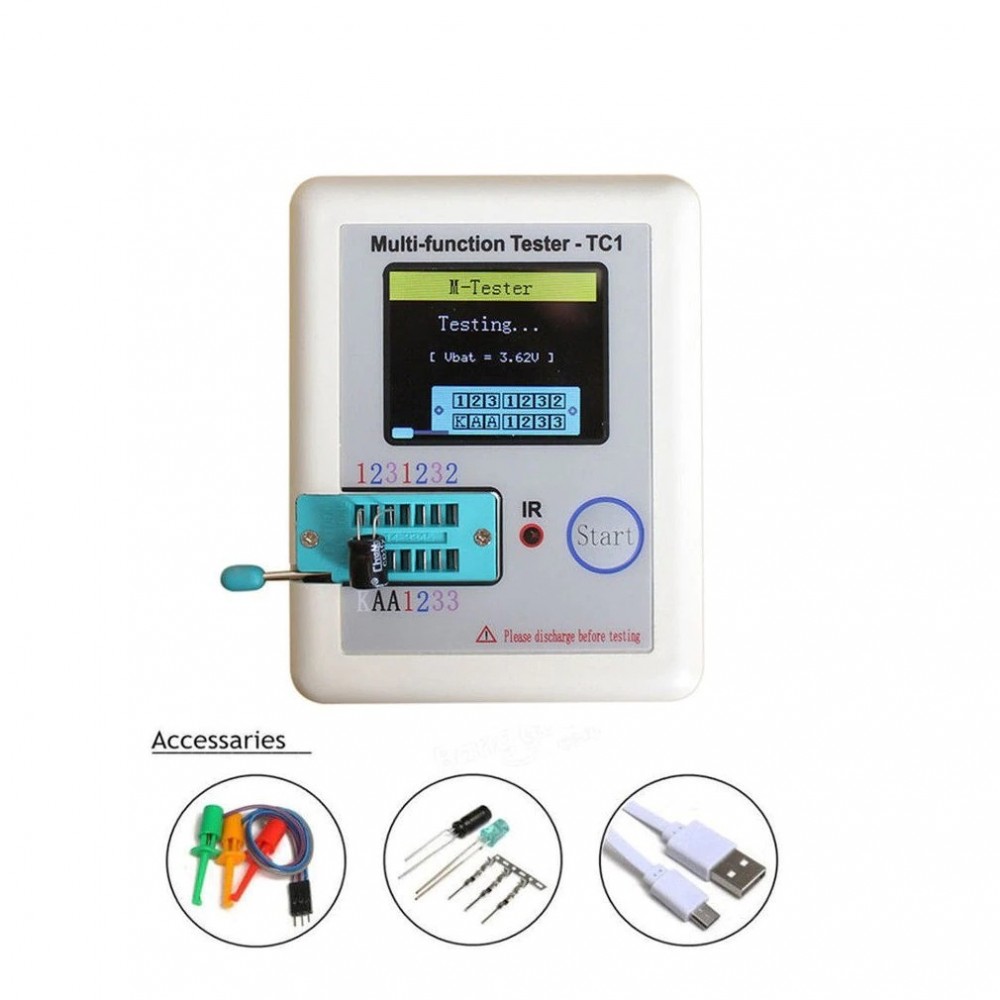

LCR-TC1 1.8" TFT LCD Display Multi-meter Transistor Tester Diode Triode Capacitor Resistor Test Meter ESR LCR NPN PNP MOSFET COD
Features:
1. It can be widely used to detect  NPN and PNP transistor, capacitor, resistor, diode, triode, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc.
2. One button operation, automatically detect and shutdown, and you can press the multi-functional button to close the detector too.
3. Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.

Description:
It can also be used to detect  infrared wave forms. It also can detect  zener diode and has the function of  self-calibration.

Specifications:
Display: 1.8 inch TFT Screen
Diode Range: < 4.5V
Zener Diode : Transistor Detect Area: 0.01-4.5V
Zener Diode Detect Area: 0.01-30V
Triac Range: IGT < 6mA
Capacitance: 25pF-100mF
Resistor: 0.01-50MΩ
Inductance: 0.01mH-20H
Battery: 0.1-4.5V
Power Mode: Rechargeable Lithium Battery (Include)
Size: Approx. 90 x 50 x 25mm
Color: white

Package Included:
1 x Multi-functional TFT Transistor tester
1 x Electronic component set(Send Randomly)
3 x Test hooks
1 x Cable
Notes:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2. Please allow slight dimension difference due to different manual measurement.
