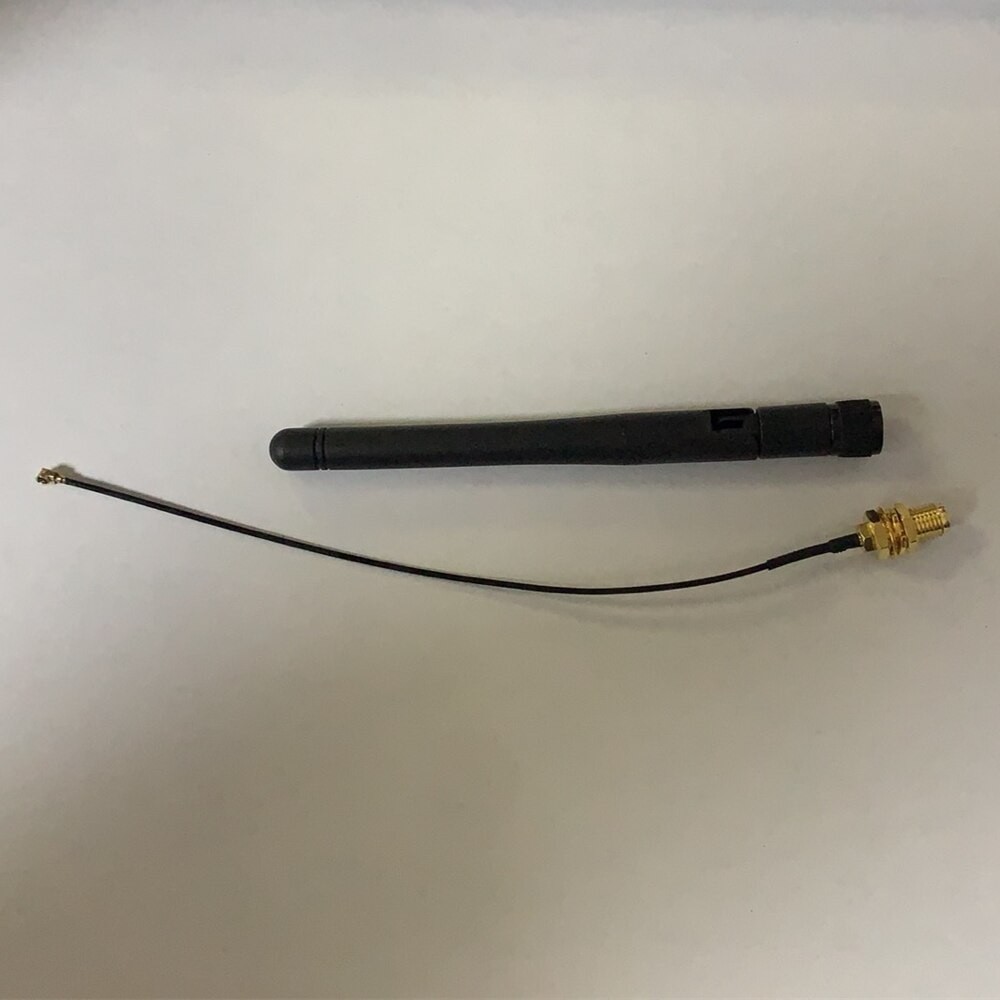

A 2.4G WiFi modul IPEX–SMA külső antenna adaptert használ, SMA apa antennával
A 2.4G WiFi modul IPEX–SMA külső antenna adaptert használ, SMA apa antennával
127 Ft
56% megtakarítás
289 Ft
Nincs adó
Parameters: 2dB gain antenna and antenna adapter
The length of the line is about 14cm, and the total length of the single line is about 16cm
Name: 2.4G omnidirectional antenna
Frequency band: 2400-2500
Detailed indicators: electrical specifications
Frequency range (MHz) 2400-2500
Gain (DBI) ＞ 2.5
Standing wave ratio v.s.w.r. ＜ 1.5
Polarization vertical
Non circularity (DB) ± 0.5
Input impedance (Ω) 50
Lightning protection direct ground
Maximum input power (W) 50
Mechanical specifications
Connector type SMA
Radiating element material copper
Radome material EVA
Radome color gray
Antenna dimension (mm) 110 (unbend) 92 (bend)
Tail cable length (mm) 100 / 120 / 200
Packing size (mm) 295 × one hundred and ten × sixty
Weight Wight (kg) 0.009/12
Application condition editor
Operating temperature (℃) - 40 ~ 70
Storage temperature (℃) - 55 ~ 80
The length of the line is about 14cm, and the total length of the single line is about 16cm
Name: 2.4G omnidirectional antenna
Frequency band: 2400-2500
Detailed indicators: electrical specifications
Frequency range (MHz) 2400-2500
Gain (DBI) ＞ 2.5
Standing wave ratio v.s.w.r. ＜ 1.5
Polarization vertical
Non circularity (DB) ± 0.5
Input impedance (Ω) 50
Lightning protection direct ground
Maximum input power (W) 50
Mechanical specifications
Connector type SMA
Radiating element material copper
Radome material EVA
Radome color gray
Antenna dimension (mm) 110 (unbend) 92 (bend)
Tail cable length (mm) 100 / 120 / 200
Packing size (mm) 295 × one hundred and ten × sixty
Weight Wight (kg) 0.009/12
Application condition editor
Operating temperature (℃) - 40 ~ 70
Storage temperature (℃) - 55 ~ 80
