AC 220V 2000W SCR feszültség szabályozó fényerőszabályzó fényerőszabályzók fordulatszám szabályozó termosztát

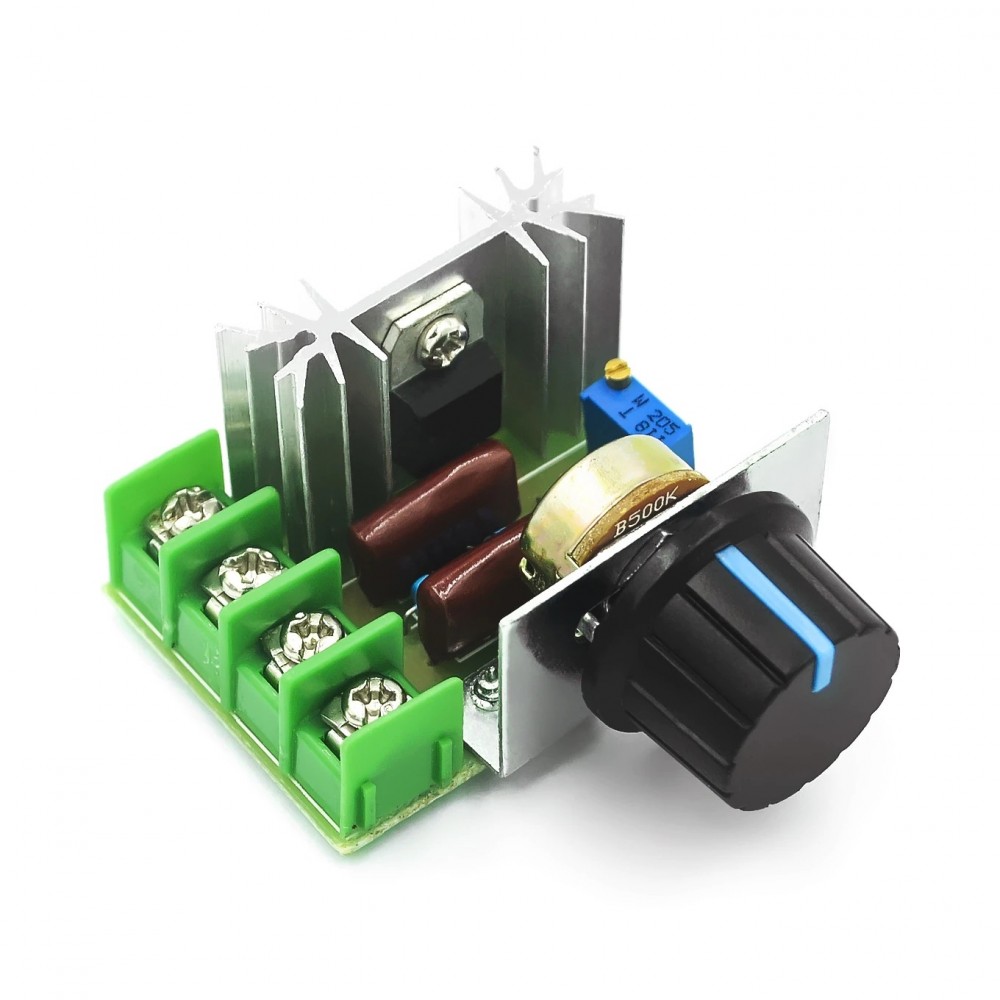

AC 220V 2000W SCR Voltage Regulator Dimming Dimmers Speed Controller Thermostat
The voltage regulator is a special improvement circuit for the motor speed can be adjusted by a precision multi ring potentiometer to adjust the output of the lowest voltage.

There is a connecting position on the board:
IN 220V, OUT output

Parameters:
Use voltage: AC 220V
Maximum power: 2000W
Voltage regulation: AC 90-220V
Size: high temperature resistant FR-4 circuit board
Weight: 45g

Pressure regulator material:
Italian semiconductor original imported silicon controlled, high voltage up to 1200 volts.
All are high-voltage capacitors,
All are metal film resistors,
ST trigger diode,
Precision multi turn potentiometer,
The main potentiometer is Taiwan goods manufacturers,
The material is not fine, are carefully selected a large number of purchase.
With heat sink, the buyer can use the hand,
Italian original imported special custom silicon controlled silicon, high voltage up to 1200 volts. Current 25A (greater than the others sold by 2500W)
1.6mm thick epoxy copper clad laminate, the pursuit of perfect welding work.

Using method:
Put this product is connected in series in a table lamp or the electrical circuit, namely the lamp, appliances such as broken open any live wire and zero line of a root, to the "product" of the two wires can) rotary potentiometers and rotary rod, can play to tone regulation, regulating speed and pressure, temperature effects; the use is very convenient.

This product is to use novel bi-directional power thyristor, because the current up to 25, very good solve the electric stove wire in the cooling of the resistance is too small due to the over flow; can be very convenient adjustment of the power output voltage, 90----220 volts between arbitrary adjustment, electric power supply and demand of use. Such as: electric stove, water heater, heat transfer lamp dimming, small motor, electric soldering temperature. In order to achieve dimming, temperature, pressure regulating effect. Can supply power less than 2000 Watt large electrical appliances due to the use of power has been great, so the general household electrical appliances or small factories enough. (inductive or capacitive load power should be reduced, the voltage regulator is provided with a bidirectional high power thyristor, potentiometer are provided with a screw cap without any element will be able to use, very convenient and practical.
