3D alaplap WIFI modul MKS HLKWIFI V1.1 távirányító MKS TFT érintőképernyőhöz HLK-RM04 nagy stabilitás alapján
3D motherboard WIFI module MKS HLKWIFI V1.1 remote control for MKS TFT touch screen based on HLK-RM04 high stability

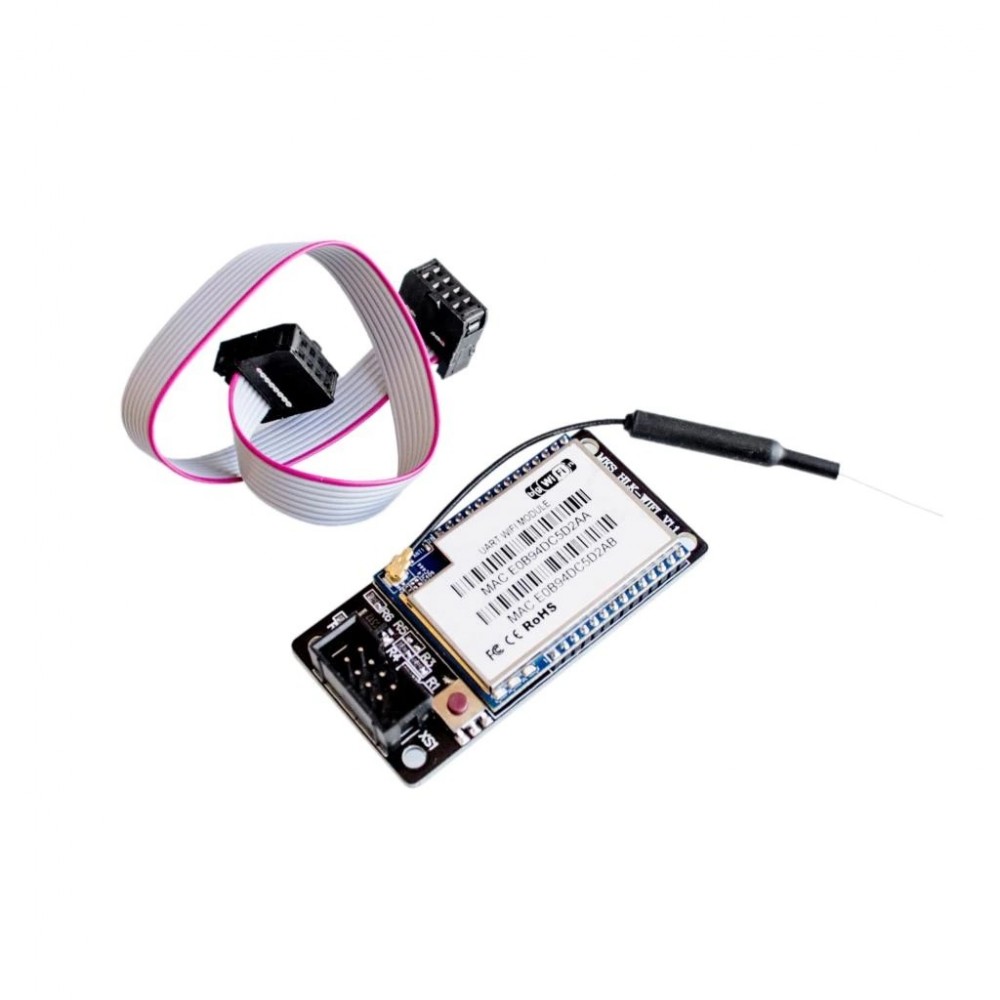

Name :  WIFI module  MKS HLKWIFI V1.1 remote control

Overview
MKS-HLKWIFI is created by MakerBase(MKS) based on HLK-RM04 module, which is
suitable for open-source 3D printer . Also, MKS-HLKWIFI is used for MKS Base
(updated version 1.2), MKS Gen, MKS Mini, MKS SBase, etc, those are
developed by MakerBase , as well as MKS TFT touch screen .

Features
1. Based on strong and stable HLK-RM04 module.
2. Using on MKS motherboard directly .
3. Work with MKS TFT touch screen.
Notice: Due to undercurrent, MKS HLKWIFI can not work with Ramps1.4.

Please visit our github to download firmware:
github.com/makerbase-mks

Connection
1.Connect to Aux-1 of MKS TFT28.
2. Connect to Aux-1 on MKS BASE, MKS MINI, MKS SBASE, MKS GEN.
 MKS BASE only supports V1.2  updated version.

Appendix 1

Usage on Motherboard
1.Connect WIFI module to AUX-1

2.Search for WIFI hotspot and connect.
1).Search hotspot HI-LINK-XXXX, and connect. Password: 12345678;
2).If you can not find the hotspot , press on button of module for 10 seconds,
then restore factory settings.
3).Attention: under default , the baud rate of HLKWIFI is 115200, which
must be as the same as firmware .

3. Configuration on MKS HLKWIFI
1).After enter HI-LINK-XXXX, connect to IP: //192.168.16.254;
2).Log in :  accounts: admin;  password : admin.
3).Proceed network configuration and modify the Client you need.
4).Any other help, please refer to HLK-RM04 user manual 1.31.pdf.
