Páratartalom-hőmérséklet-szabályozó digitális hőmérő, nedvességmérő vezérlőmodul, kettős kimenetű LCD automatikus állandó szabályozókártya
Humidity Temperature Controller Digital Thermometer Hygrometer Control Module Dual Output LCD Automatic Constant Regulator Board

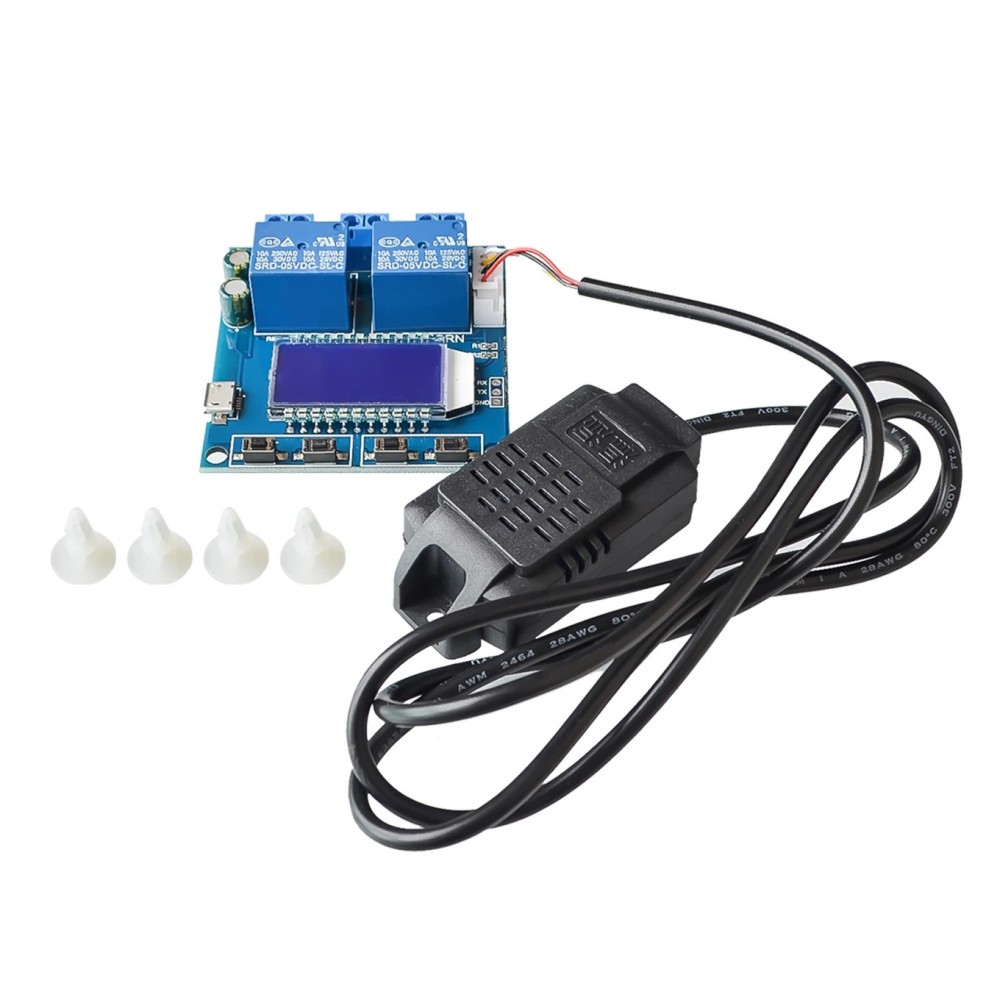

XY-TR01 Temperature and humidity control module high precision digital display word double output automatic constant temperature and humidity control panel
Product adopts industrial-grade chip, high-precision SHT20 temperature and humidity sensor.
Product Function:
Product features are two main types of classification: the functions of temperature and humidity;
Function of temperature are as follows:
1. The automatic identification of work mode:
The system automatically according to the start/stop temperature, identify work mode;
Start temperature > stop temperature, cooling mode 'C'.
Start temperature < stop temperature, heating mode 'H'.
2. Cooling mode:
When the temperature  Start temperature, relay conduction, red led on, refrigeration equipment begin to work;
When the temperature  Stop temperature, relay disconnect, red led off, refrigeration equipment stop to work;
3. Heating mode:
When the temperature  Start temperature, relay conduction, red led on, heating equipment begin to work;
When the temperature  Stop temperature, relay disconnect, red led off, heating equipment stop to work;

4. Temperature correction function OFE (-10.0 ~ 10°):
   The system is working for a long time and may be biased, through this function correction, the actual temperature = measuring temperature calibration value;
How to set the start/stop temperature:
1. In the running interface, Long Press ' TM  ' key more than 3 seconds, into the start temperature settings interface, can be modified by TM TM- key, to be modified, waiting for 6s automatic exit and save;
2. In the running interface, Long Press ' TM-' key more than 3 seconds, into the stop temperature settings interface, can be modified by TM TM- key, to be modified after the parameters, waiting for 6s automatic exit and save;


The humidity function is as follows:
1. The automatic identification of work mode:
The system automatically according to the start/stop humidity, identify work mode;
Start humidity> stop humidity, dehumidification mode 'D'.
Start humidity< stop humidity, humidification mode 'E'.
2. Dehumidification mode:
When the humidity Start humidity, relay conduction, green led on, dehumidification equipment begin to work;
When the humidity Stop humidity, relay disconnect, green led off, dehumidification equipment stop to work;

3. Humidification mode:
 When the humidity Start humidity, relay conduction, green led on, humidification equipment begin to work;
When the humidity Stop humidity, relay disconnect, green led off, humidification equipment stop to work;

4. Humidification correction function RH (-10.0 ~ 10% ):
   The system is working for a long time and may be biased, through this function correction, the actual humidity = measuring humidity calibration value;

How to set the start/stop humidity:
1. In the running interface, Long Press ' RH  ' key more than 3 seconds, into the start humidity settings interface, can be modified by RH RH - key, to be modified, waiting for 6s automatic exit and save;
2. In the running interface, Long Press ' RH-' key more than 3 seconds, into the stop humidity settings interface, can be modified by RH RH- key, to be modified after the parameters, waiting for 6s automatic exit and save;

Running Interface Description:
Working mode shows that the current mode ("H/C", "E/d") will be synchronized at the front of temperature/humidity, when the setting of temperature/humidity and stop temperature/humidity are completed.
Any relay conduction, the upper-left corner of the interface display "out", if the temperature relay conduction, the flashing display temperature working mode "H/C" to show reminders; if the humidity relay conduction, then flashing display humidity working mode "E/d", as a reminder;

Other features:
1. Parameter remote read/set:
Through the UART, set the starting temperature/humidity, stop temperature/humidity, temperature/humidity correction parameters;
2. temperature/Humidity Real-time reporting:
If the temperature/humidity reporting function is turned on, the product will detect the temperature/humidity and relay status by the 1s interval, and pass the UART to the terminal to facilitate data collection;
3.  Relay enabling (by default):
If the relay is disable, the relay remains disconnected;


How to modify the temperature/humidity correction value:
1. 1. In the operating interface, double-click the ' TM  ' key to enter the correction of the set interface, the downward display correction of the type, the upward display of specific values; (OFE: Temperature correction value RH: Humidity correction value)
2. At this time by a short press ' TM-' key, switch to modify the parameters, through the RH RH-key, modify the specific value of the support long press short;
3. When the parameters have been modified, double-click the ' TM  ' key, exit the correction positive setting interface, and save the data;
How to enable/disable relay:
In the running interface, Short press ' TM-' key, enable/disable the temperature relay(ON: enable OFF: disable), back to the running interface, if the temperature relay is disable, the temperature symbol ' ° ' flashes to remind.
In the running interface, Short press ' RH-' key, enable/disable the humidity relay (ON: enable OFF: disable), back to the running interface, if the humidity relay is disable, the humidity symbol '% ' flashes, as a reminder.

Serial control(TTL level)
Baud Rate:9600bps Data bits :8
stop bits :1
crc :none
Flow control :none
