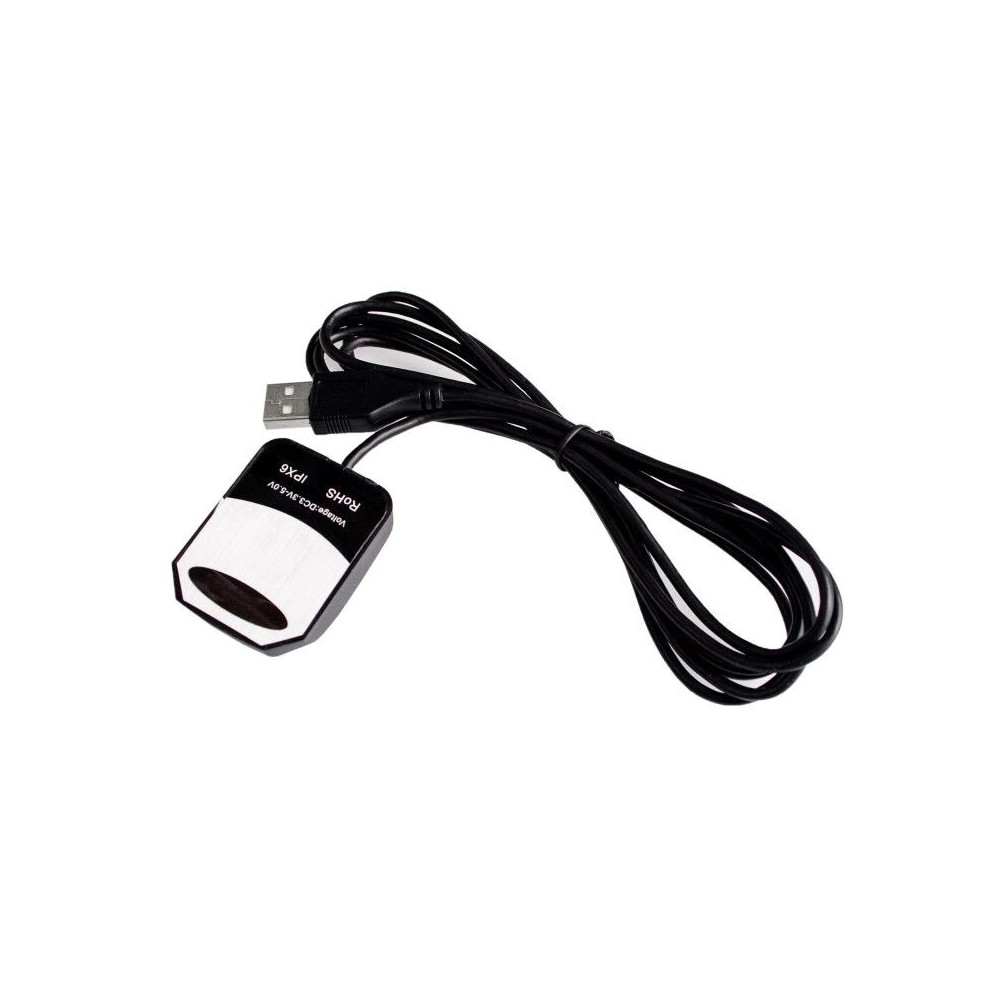

GPS motorkártya / Antenna USB interfésszel rendelkező modul G-Mouse LUY VK-162 Csere GlobalSat BU-353S4 Skylab SKM55
GPS motorkártya / Antenna USB interfésszel rendelkező modul G-Mouse LUY VK-162 Csere GlobalSat BU-353S4 Skylab SKM55
399 Ft
59,25% megtakarítás
978 Ft
Nincs adó
Model:VK-162
C / A code , 1.023MHz stream
receive frequency : L1 [1575.42MHz]
Tracking Channels: 50
Support DGPS [WAAS, EGNOS and MSAS]
Positioning performance
2D plane : 5m [ average ]
2D plane : 3.5m [ average ] , there DGPS auxiliary .
Drift : \u003c0.02m / s
Timing Accuracy : 1us
reference coordinate system : WGS-84
Maximum altitude: 18,000 m
Maximum speed : 500m / s
Acceleration : \u003c4g
Electrical properties:
Tracking sensitivity :-160dBm
Acquisition sensitivity :-146dBm
Cold start time : 32s [ average ]
Warm start : 32s [ average ]
Hot start time : 1s [ average ]
Recapture Time : 0.1s [ average ]
Operating temperature:
-30 ° to 80 °
Package Dimensions :
49 * 38 * 16mm;
Cable length 2m
Output:
Output Data Baud rate 4800bps or 9600bps or customized according to customer requirements
C / A code , 1.023MHz stream
receive frequency : L1 [1575.42MHz]
Tracking Channels: 50
Support DGPS [WAAS, EGNOS and MSAS]
Positioning performance
2D plane : 5m [ average ]
2D plane : 3.5m [ average ] , there DGPS auxiliary .
Drift : \u003c0.02m / s
Timing Accuracy : 1us
reference coordinate system : WGS-84
Maximum altitude: 18,000 m
Maximum speed : 500m / s
Acceleration : \u003c4g
Electrical properties:
Tracking sensitivity :-160dBm
Acquisition sensitivity :-146dBm
Cold start time : 32s [ average ]
Warm start : 32s [ average ]
Hot start time : 1s [ average ]
Recapture Time : 0.1s [ average ]
Operating temperature:
-30 ° to 80 °
Package Dimensions :
49 * 38 * 16mm;
Cable length 2m
Output:
Output Data Baud rate 4800bps or 9600bps or customized according to customer requirements
