A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!

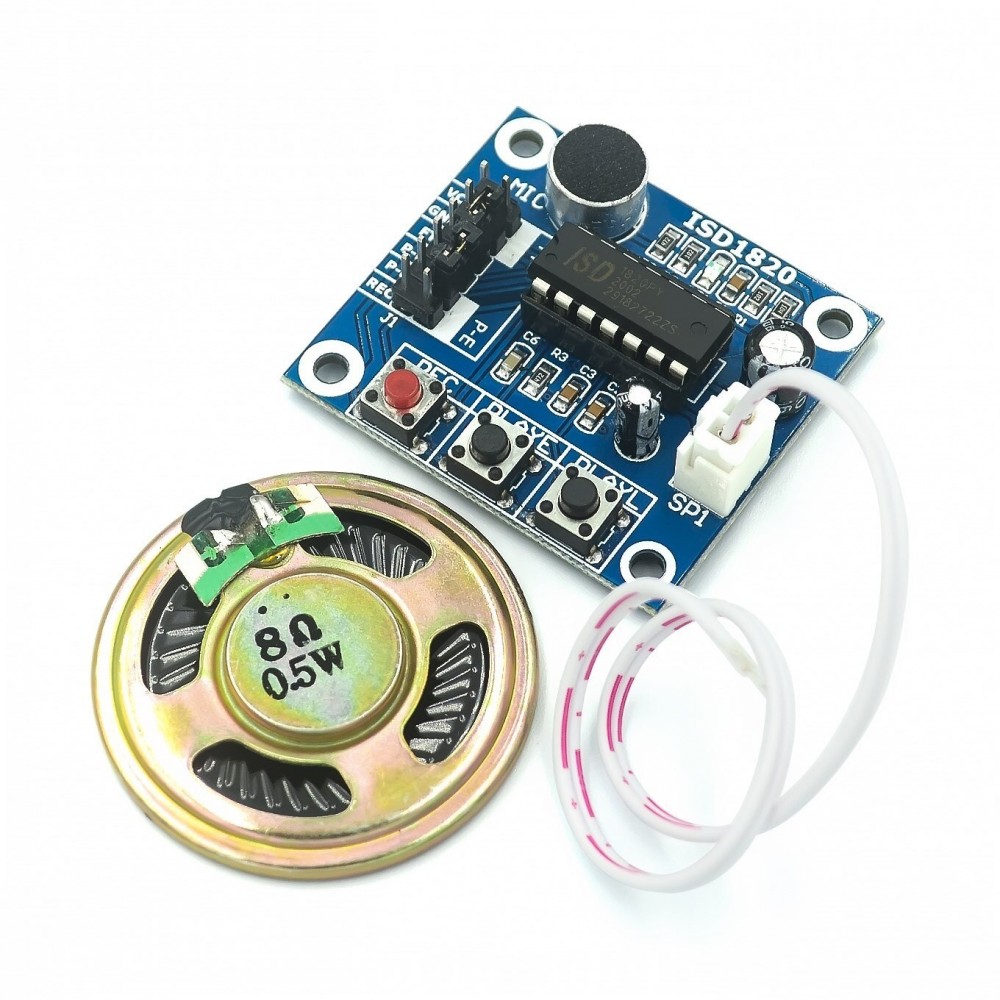

ISD1820 felvevő modul hangmodul a hangkártya telefonmodul kártya mikrofonokkal hangszóró
ISD1820 recording module voice module the voice board telediphone module board with Microphones Loudspeaker for
Product Introduction:

I. Main chip: ISD1820

Two, size: 38mm*42.5mm

Three, working voltage: DC 3-5V

Iv. Main Features:

1. Easy to use 10-second voice recording and playback

2, high quality, natural voice restoration

3, can be used as a propaganda module

4, with circular play, click play, single play function

5, can be controlled by single chip microcomputer

6, this module can directly drive 8 euro 0.5W small horn



Power supply: 3-5V, can be connected to the row pin power;
Recording and playback control mode: button control or single chip microcomputer, control line IO has been led out;
Key control recording and playback operation method:
REC key: recording key, press and hold to record, release the key to stop recording;
RLAYE key: trigger mode playback, click to play the current whole section of the voice;
PLAYL key: click mode play, hold down to play, release to stop playing;
RPL jumper: loop play mode control, can loop play;
FT jumper: direct control, can make the microphone voice through to the loudspeaker playback;
