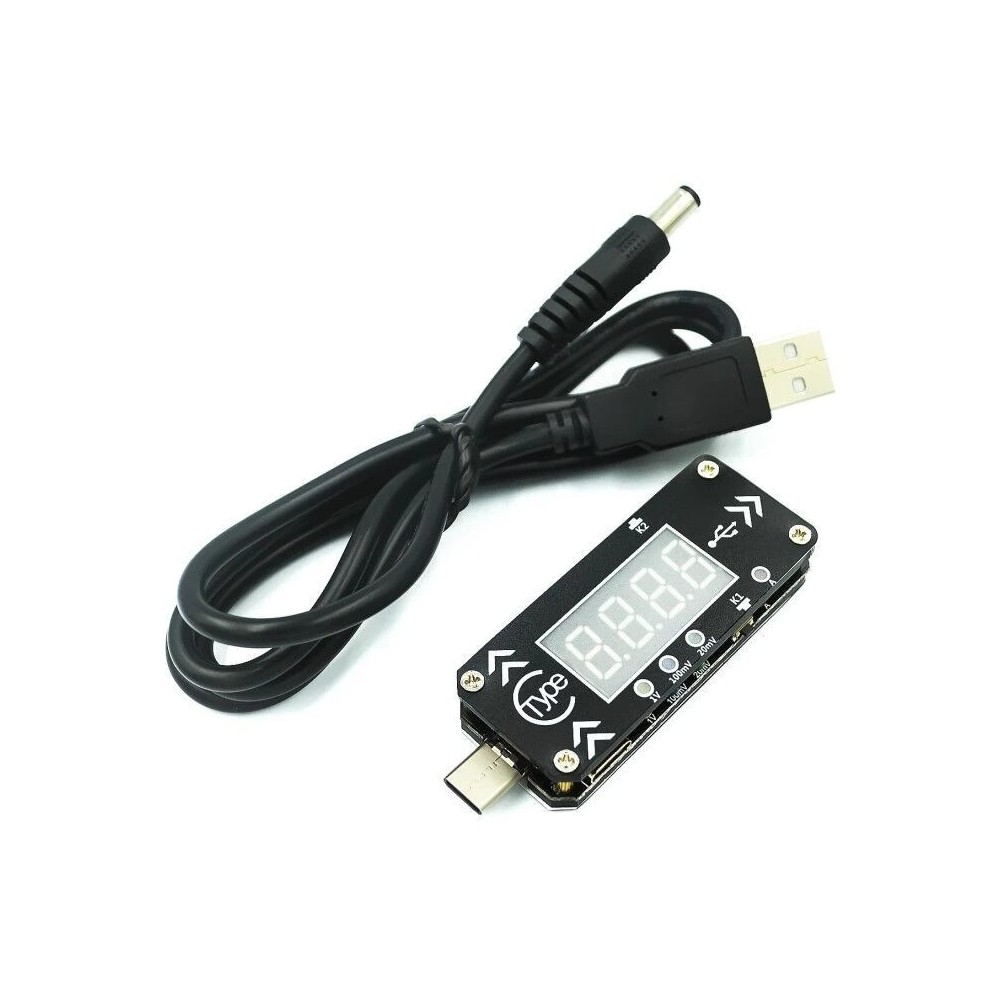

Type-C PD gyorstöltő trigger csali DC digitális kijelző feszültség ampermérő tesztműszer teljes protokoll PPS
Type-C PD quick-charging trigger decoy DC digital display voltage ammeter test instrument full protocol PPS
Key and function details:

The PD protocol type is displayed during each power-on
---- : the PD protocol is not supported

Pd2.0: Supports Pd2.0

Pd3.0: Supports Pd3.0

How to switch display contents
In the operating interface, press K1 button to switch display voltage/current/alternate display; Long press K1 button for 5 seconds to turn off digital tube and indicator light display, and press any button to wake up.

How to adjust the voltage range
1. In the operation interface, press the K2 button to enter the voltage adjustment interface, and the voltage will blink after the digital tube displays the current tap;

2. At this time, by pressing the K2/K1 button to modify (K2 for gear, K1 for gear), gear switch, first display "P7-1" (P7: a total of 7 voltage gear,-1: indicates the number of the current voltage gear), and then display the current voltage value; If the current voltage range supports PPS step voltage adjustment, the step range indicator (20MV 100MV 1V) will be fully on;

3. 5s No button operation or long press K1 button for 2S, automatically return to the operation interface;

Note: The next tap "L" of "P7-L" is the trigger tap in turn. After selecting THE TAP "L" to return to the operation interface, all the supported taps will be triggered in turn (5V/9V/12V/15V/20V/PPS mode). In this mode, the step voltage indicator on the operation interface will be the horse-running indicator. This function can be used for batch testing of charging head manufacturers.

Note: Generally, THE CHARGING head of PD2.0 generally supports 4-5 tap mode, which will display "P4-1" or "P5-1" format, while the charging head of PD3.0 generally supports 6-7 tap mode, which will display "P6-1" or "P7-1" format

How to adjust voltage in PPS step mode
1. First, ensure that the PPS step gear indicator (20MV 100MV 1V) is fully on/one of them is on;

2. Long press K2 to enter PPS voltage regulation, digital tube voltage value flickers, first activate 1V stepping gear regulation;

3. Long press K2 again to switch step gear;

4. After selecting the corresponding step tap, press K1/K2 to modify the voltage; When the step gear indicator is all on, press K1/K2 button to exit PPS voltage regulation mode and select other voltage gear;

5. 5s No button operation or long press K1 button for 2S, automatically return to the operation interface;

This product has power off memory function, remember the voltage gear and PD mode before power off when powering on next time.

Product Application:

1. This product can trigger the voltage of different gears in the PD charging head to supply power to external devices, such as router, light cat, set-top box or notebook computer (adapter should be replaced under the condition that the power of PD charging head meets the requirements).

2. It can be used for PD charging head manufacturer's batch test and aging.
