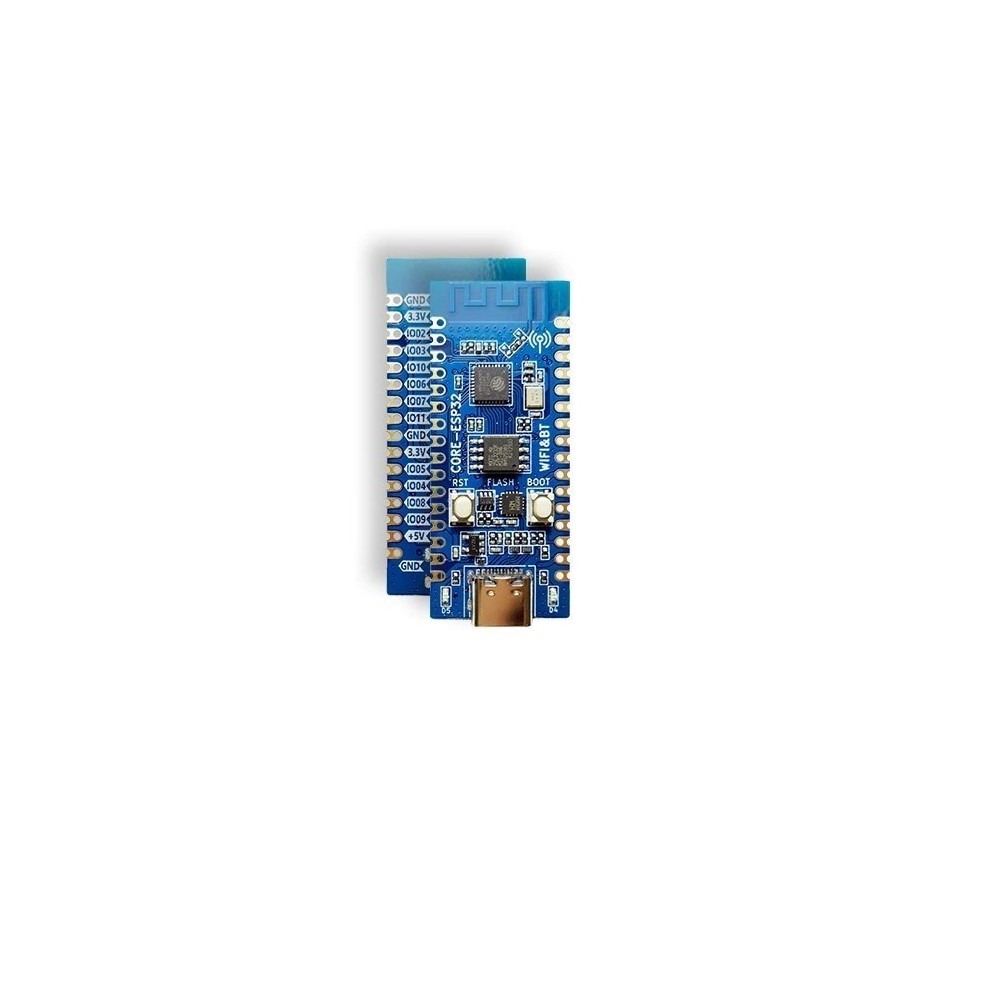

CORE ESP32C3 Fejlesztőkártya CORE kártya beépített 2,4g antenna 32 Pin pin
CORE ESP32C3 Development board CORE board onboard 2.4g antenna 32Pin pin
Function parameters

Model ESP32C3 development board
Size 21, mmX51mm
SPI Flash 1 channel, onboard 4MB
UART Two interfaces, UART0 to UART1
12 bit ADC 2 channels, maximum sampling rate of 100KSPS
One low-speed SPI interface, supporting the main mode
One IIC controller
Four PWM interfaces
GPIO external pin 15 channels, reusable
LED indicator 2 channels
Reset button 1 way
BOOT One key
USB to TTL download debugging port 1, supporting automatic download

2.4g PCB onboard antenna
