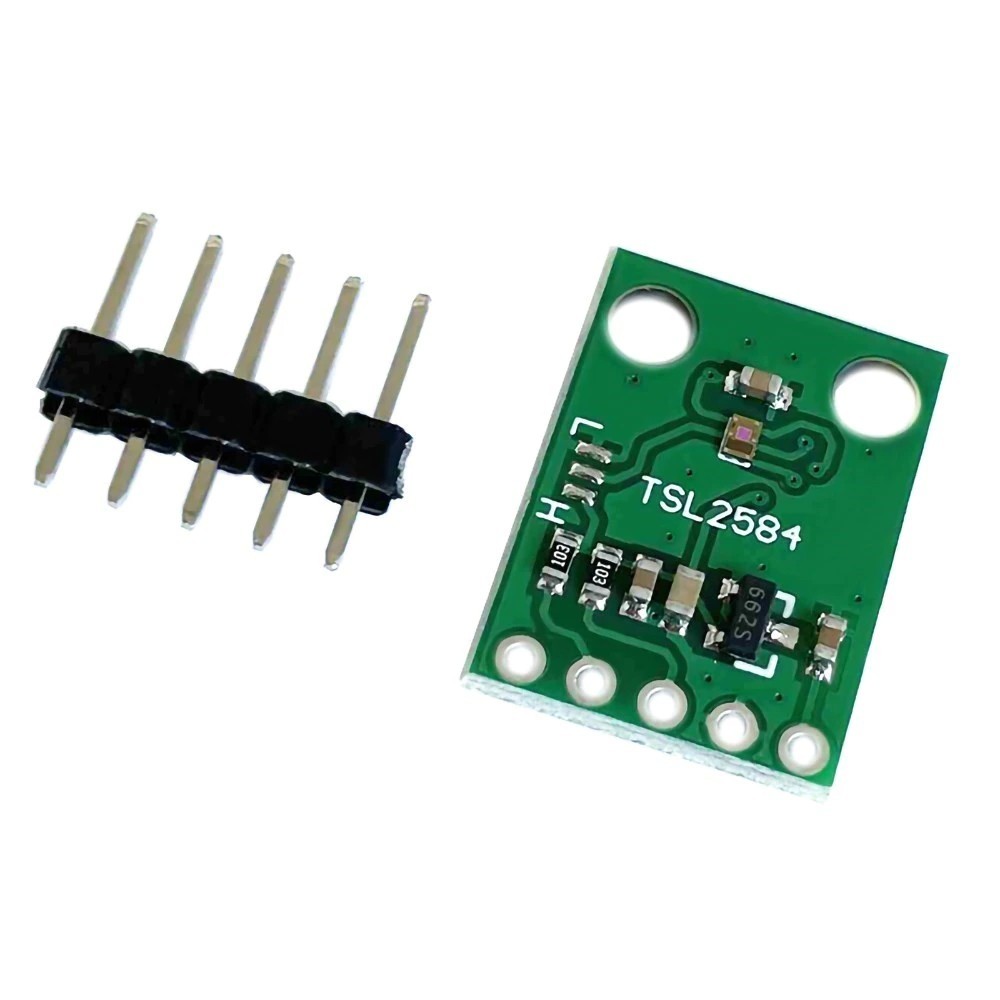

TSL2584TSV digitális környezeti fény érzékelő modul TSL2584 fényintenzitás fényérzékelő I2C kommunikáció
TSL2584TSV Digital Ambient Light Sensor Module TSL2584 Light Intensity Light Sensor I2C Communication
The TSL2584TSV is a very-high sensitivity light-to-digital
converter that transforms light intensity into a digital signal
output capable of direct I²C interface. The device combines one
broadband photodiode (visible plus infrared), one
infrared-responding photodiode, and a photopic
infrared-blocking filter on a single CMOS integrated circuit. Two
integrating ADCs convert the photodiode currents into a digital
output that represents the irradiance measured on each
channel. This digital output can be input to a microprocessor
where illuminance (ambient light level) in lux is derived using
an empirical formula to approximate the human eye response.
The TSL2584TSV supports a traditional level style interrupt that
remains asserted until the firmware clears it.
Key Benefits & Features
The benefits and features of TSL2584TSV, Light-to-Digital
Benefits Features
• Approximates Human Eye Response • Dual Diode with Photopic Filter
• Flexible Operation • Programmable Analog Gain and Integration Time
• Suited for Operation Behind Dark Glass • 1000000: 1 Dynamic Range
• Low Operating Overhead • Programmable Upper and Lower Thresholds
• Programmable Persistence Filter
• Low Power • 3.0 μA Sleep State
• Industry Standard Two-Wire Interface
• I2C Fast Mode Compatible Interface
• Data Rates up to 400 kbit/s
• Input Voltage Levels Compatible with1.8−V Bus
The TSL2584TSV applications include:
• Display Backlight Control
• Keyboard Illumination Control
• Printer Paper Detection
• Medical Diagnostics

【Interface Description】

VCC: positive power supply (3.3V/5V power input)
GND: power ground
SDA: I2C data pin
SCL: I2C clock pin
INT: Interrupt output pin, can not be connected
