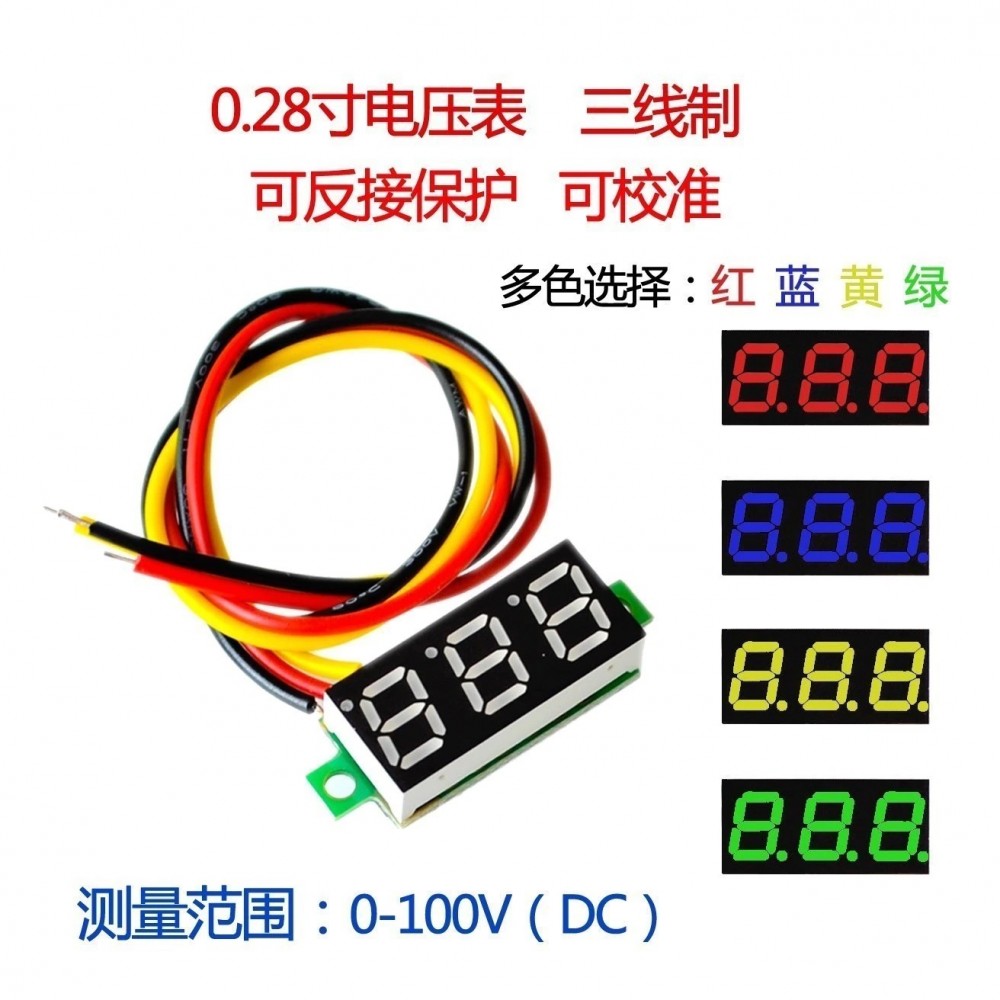

Piros szín - 0,28 hüvelykes 0,28" DC 3,5-30 V Super Mini Digital Piros Zöld Kék Sárga LED Autó Voltmérő
Piros szín - 0,28 hüvelykes 0,28" DC 3,5-30 V Super Mini Digital Piros Zöld Kék Sárga LED Autó Voltmérő
96 Ft
59,25% megtakarítás
235 Ft
Nincs adó
This voltmeter has the smallest volume in the world, and the measuring range dc dc0-100v, 2-wire and 3-wire products are universal. It breaks the conventional voltmeter. Equipped with three connections, it is convenient to access the line in the car/battery car/motorcycle. It has the function of reverse connection protection. It can be used to monitor the voltage of the battery, master the voltage state of the battery in time, and can also be used for voltage measurement of other products. Note that the maximum input voltage of line 2 should not exceed 30V, otherwise there is a risk of burnout.
Note: the three-wire voltage range is 0-100v, which can also be used as a second-line, but the voltage should be within 40V
Technical parameters
Line 2 operating voltage: 4.0-40v (with reverse connection protection function)
Line 2 test voltage: 0.0~40V
Line 3 operating voltage: 4.0-40v (with reverse connection protection function)
Line 3 detection voltage: 0.0~100V
Working current: <20mA
Display mode: 0.28"LED, red blue green yellow (optional color)
Installation dimensions: 30 * 11.7 * 9.2 mm long (wide high)
Installation opening: 23 * 10 mm
Measurement speed: greater than or equal to 200mS/ time
Measurement accuracy: 3
Extreme working condition
Low operating voltage: 4.0v
Maximum operating voltage: 40V
Working temperature: - 10 ~ 65
Working humidity: 10-80% (no condensation)
Working pressure: 80 ~ 106kPa
Sunlight exposure: no direct exposure
Main features:
1. Good product stability and high measurement accuracy
2. The appearance is of standard size and easy to install
3. Protective circuit is adopted for power supply polar power supply
Module code: AS is red, AG is green, AB is blue, and AY is yellow
This voltmeter range DC dc0-100V, 2 line and 3 line products universal, break the conventional voltmeter, is the new design, can directly work in 5V, 9V, 12V, 24V and other circuits, without voltage regulator. Equipped with three wiring, convenient access to car/battery car/motorcycle inside the line, with reverse connection protection function, the line will not burn. Used for monitoring battery voltage, timely grasp battery voltage state, also can be used for other products of voltage measurement purposes. Note The input voltage of line 2 should not exceed 30V, otherwise it may be burnt out.
Note: three-wire voltage range 0-100V, also can be used as two-wire but the voltage should be within 40V
Technical parameters
2-line working voltage: 4.0~40V(with reverse connection protection function)
2 line detection voltage: 0.0~40V
3 line working voltage: 4.0~40V(with reverse connection protection function)
3-wire detection voltage: 0.0~100V
Operating current: <20mA
Display mode: 0.28"LED, red, blue, green and yellow (color optional)
Size: 30×11.7× 9.2mm (long, wide, high)
Installation opening: 23 x 10 mm
Measurement rate: ≥200mS/ time
Measurement accuracy: 3‰
Extreme operating condition
Low operating voltage: 4.0V
Working voltage: 40V
Operating temperature: -10 ~ 65℃
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sunlight exposure: no direct exposure
Main features:
1. Good stability and high measuring accuracy
2. Standard size, easy to install
3. Use polarity protection circuit for power supply
Note: the three-wire voltage range is 0-100v, which can also be used as a second-line, but the voltage should be within 40V
Technical parameters
Line 2 operating voltage: 4.0-40v (with reverse connection protection function)
Line 2 test voltage: 0.0~40V
Line 3 operating voltage: 4.0-40v (with reverse connection protection function)
Line 3 detection voltage: 0.0~100V
Working current: <20mA
Display mode: 0.28"LED, red blue green yellow (optional color)
Installation dimensions: 30 * 11.7 * 9.2 mm long (wide high)
Installation opening: 23 * 10 mm
Measurement speed: greater than or equal to 200mS/ time
Measurement accuracy: 3
Extreme working condition
Low operating voltage: 4.0v
Maximum operating voltage: 40V
Working temperature: - 10 ~ 65
Working humidity: 10-80% (no condensation)
Working pressure: 80 ~ 106kPa
Sunlight exposure: no direct exposure
Main features:
1. Good product stability and high measurement accuracy
2. The appearance is of standard size and easy to install
3. Protective circuit is adopted for power supply polar power supply
Module code: AS is red, AG is green, AB is blue, and AY is yellow
This voltmeter range DC dc0-100V, 2 line and 3 line products universal, break the conventional voltmeter, is the new design, can directly work in 5V, 9V, 12V, 24V and other circuits, without voltage regulator. Equipped with three wiring, convenient access to car/battery car/motorcycle inside the line, with reverse connection protection function, the line will not burn. Used for monitoring battery voltage, timely grasp battery voltage state, also can be used for other products of voltage measurement purposes. Note The input voltage of line 2 should not exceed 30V, otherwise it may be burnt out.
Note: three-wire voltage range 0-100V, also can be used as two-wire but the voltage should be within 40V
Technical parameters
2-line working voltage: 4.0~40V(with reverse connection protection function)
2 line detection voltage: 0.0~40V
3 line working voltage: 4.0~40V(with reverse connection protection function)
3-wire detection voltage: 0.0~100V
Operating current: <20mA
Display mode: 0.28"LED, red, blue, green and yellow (color optional)
Size: 30×11.7× 9.2mm (long, wide, high)
Installation opening: 23 x 10 mm
Measurement rate: ≥200mS/ time
Measurement accuracy: 3‰
Extreme operating condition
Low operating voltage: 4.0V
Working voltage: 40V
Operating temperature: -10 ~ 65℃
Working humidity: 10 ~ 80% (no condensation)
Working pressure: 80 ~ 106kPa
Sunlight exposure: no direct exposure
Main features:
1. Good stability and high measuring accuracy
2. Standard size, easy to install
3. Use polarity protection circuit for power supply
