- -40%

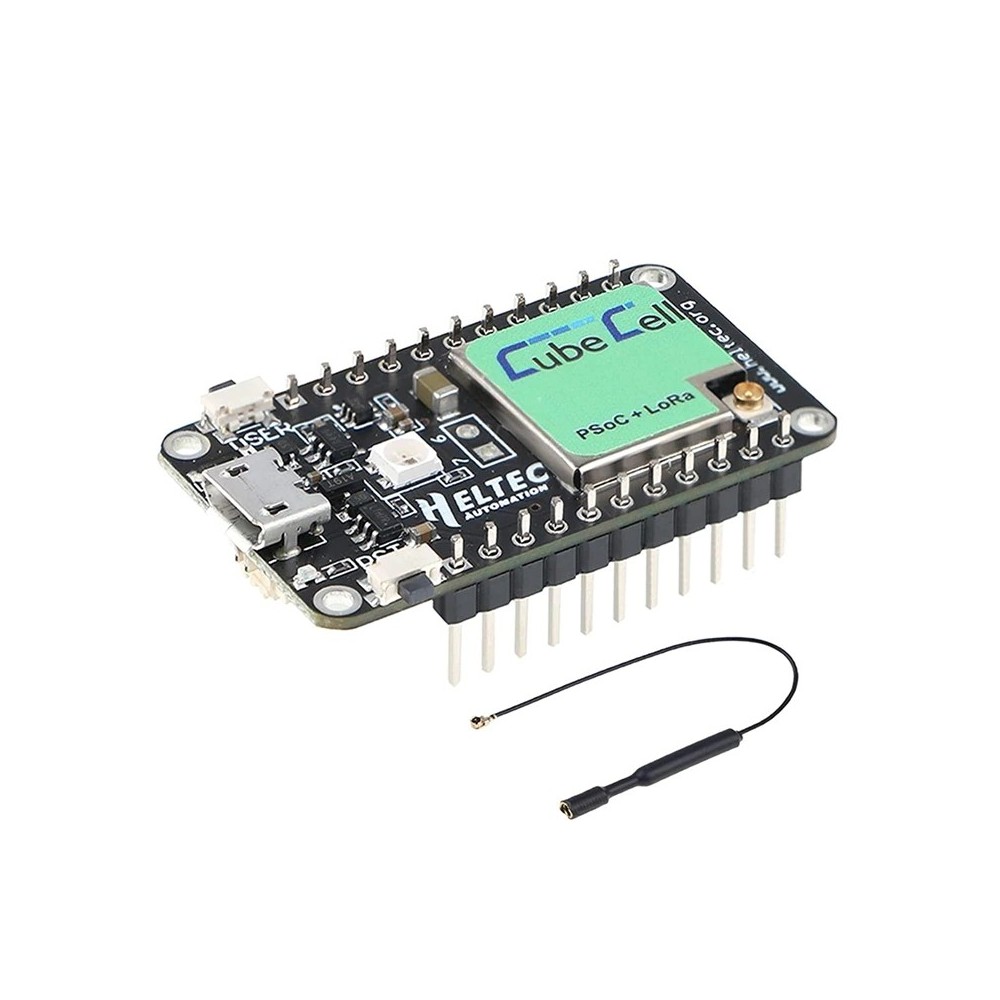

Fekete szín - SX1262 Lora Module 868 915 Mhz Lorawan Iot Fejlesztőkártya ASR6501 MCU 128 KB Flash antennával Arduinohoz
Fekete szín - SX1262 Lora Module 868 915 Mhz Lorawan Iot Fejlesztőkártya ASR6501 MCU 128 KB Flash antennával Arduinohoz
2 002 Ft
40% megtakarítás
3 336 Ft
Nincs adó
1. Ultra low power design, 3.5 uA in deep sleep.
2. Support LoRaWAN 4.4.1, the maximum output power of LoRa is 22dBm.
3. HTCC-AB01 is a new dev board that is suitable for developers to easily review communication solutions.
4. It is based on ASR605x (ASR6501, ASR6502), perfect support for Arduino, the LoRaWAN protocol can run stably and can easily connect lithium batteries and solar modules.
5. Perfect support for Arduino development environment.
Compatible with Windows, Linux, Mac OS three major operating systems.
Can be used for networking or point-to-point communication.
Supports the development of LoRa IoT projects.
Good impendency and long communication distance.
Supports AT command mode.
MCU: ASR6501 (48 MHz ARM-Cortex-M0 MCU, 16 KB SRAM)
LoRa chip: internal integration of Semtech LoRa transceiver SX1262
LoRa working band: 868-915 MHz.
LoRa maximum output power: 22 ± 1 dB
Hardware resources: UART x 1; SPI x 1; I2C x 1; SWD x 1; PWM x 3; 12-bits ADC; 8 - channel DMA motor
6 x GPIO.
Flash: 128 KB internal flash memory.
Interface: 1 x Micro-USB, 1 x LoRa (IPEX).
USB-UART bridge: CP2102
Battery type: 3.7 V lithium (SH1.25 x 2 socket)
Battery detection circuit: Yes.
External device power control (Vext): Yes
Colour:black
Material:plastic
Size:about 41.5 x 24.1mm
Package Contents:
1 x Sx1262 Lora module.
1 x 868-915 MHz antenna.
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
