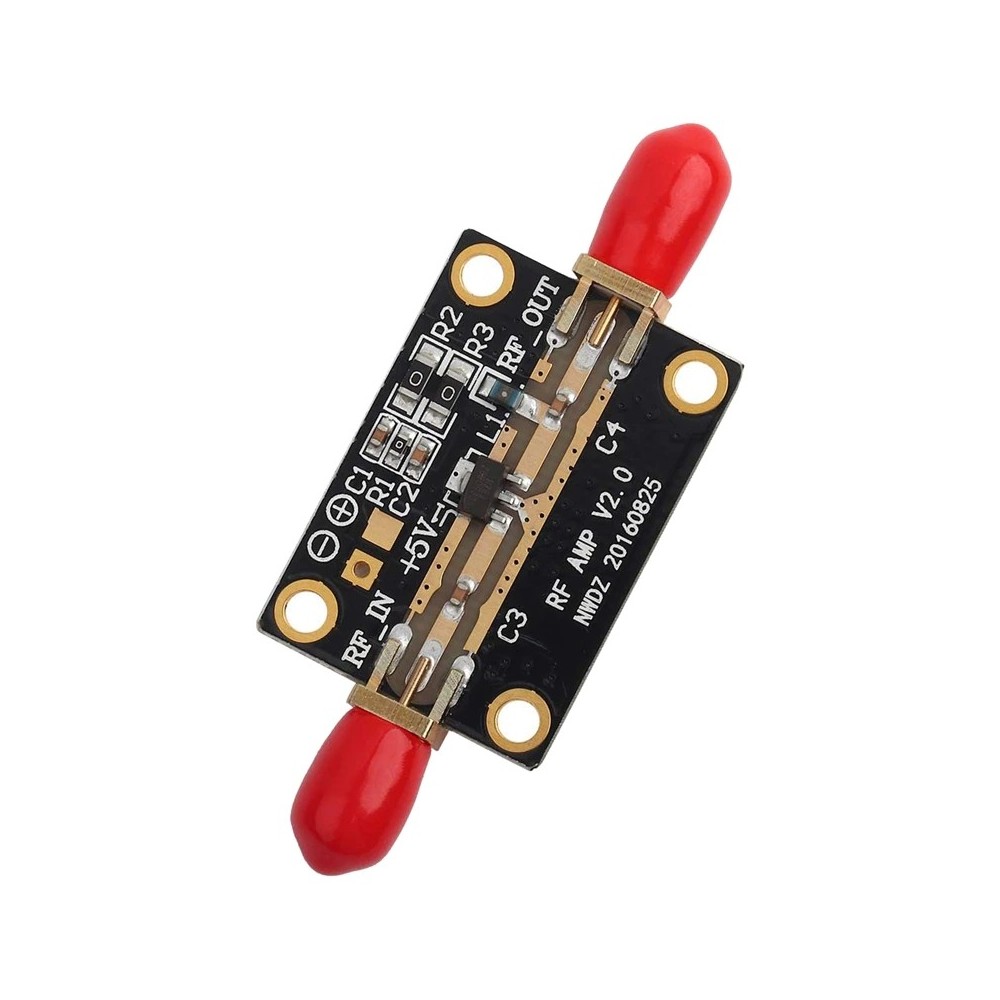

5V 20 DB RF szélessávú alacsony zajszintű erősítő modul 0,05-6G nagy linearitású, nagy nyereségű LNA Darlington erősítőkártya RF FM HF VHF
5V 20 DB RF Broad Band Low Noise Amplifier Module 0.05-6G High-Linearity High Gain LNA Darlington Amp Board RF FM HF VHF
High performance InGaP HBT MMIC amplifier, utilizing a Darlington configuration with an active bias network
The active bias network provides stable current over temperature and process Beta variations
Designed to run directly from a 5V supply, does not require a dropping resistor
The product is designed for high linearity 5V gain block applications that require small size and minimal external components
Widely used for short wave, FM radio, remote control receiver, such as cable TV signal amplifier, etc
Power supply voltage: typical 5V (typical current value 75mA)
Gain: typical value 20dB @2G, input output impedance: 50 ohms
Maximum output power: P1db 20dBm (@2ghz
Input signal: Less than 10dBm (Greater than 10dBm input signal has been distortion)
Bandwidth: 0.05-6Ghz (different frequencies of gain are different)
Noise coefficient: 4.1dB @1Ghz
Colour:Photo Color
Material:ABS
Size:3.2 x 2.3cm
Package Contents:
1 x Low Noise Amplifier Module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is /- 1-3cm.
