Features:

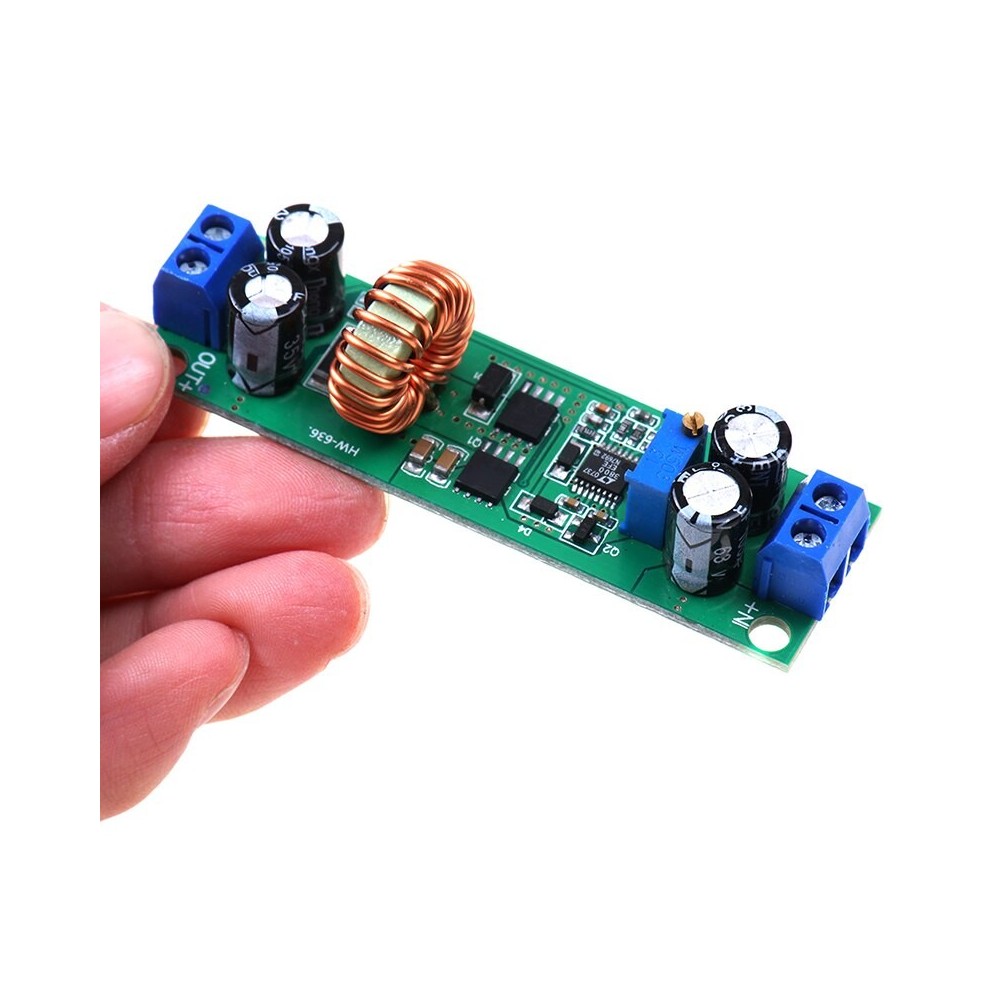

This is a DC-DC step down converter module that convert 6.5V-48V to 1.25-30V, maximum current is 10A.
Buck converter module is used for voltage step-down so please make sure that input voltage is higher than output voltage.
The buck module can be remarkably efficient (maximum 97%), making it useful for voltage step-down.
Input and output are designed with screw terminals for convenient connection.
Widely used for low voltage system power supply, 6V, 12V, 14V, 24V battery charging and regulated power supply.
Specifications:
Input: 6.5V-48V
Output: 1.25V-30V(adjustable)
Efficiency: 97%(Max)
Module: 75*21*16mm / 2.95*0.82*0.63"
Operating Temperature: -40?~+85?
Load Capacity: 10A(Max)
Wiring mode: Welding free terminal, IN for input, OUT for output
Package Includes:1 x Module
