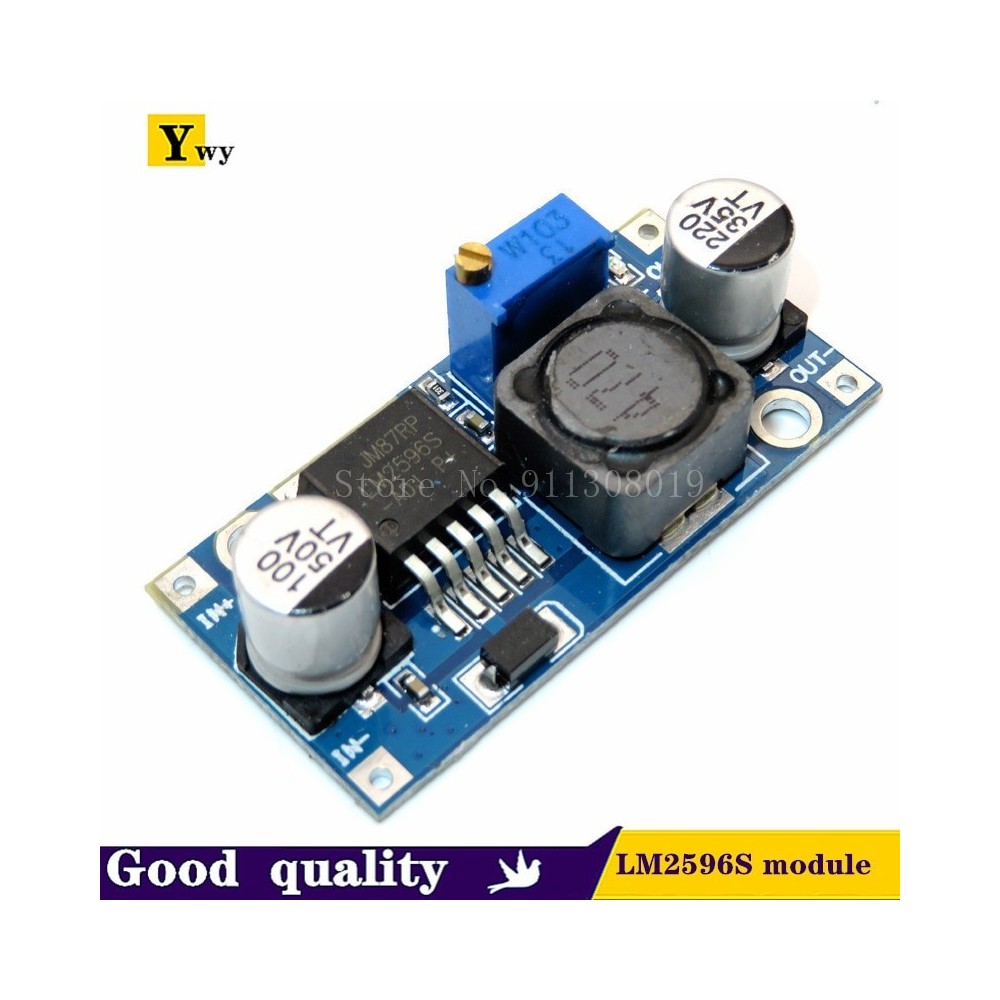

Name : LM2596 DC-DC Buck module
Input voltage :4V ~ 35V
The output voltage : 1.23V ~ 30V
Output Current :3A( Max)
Conversion efficiency:92%( MAX )
Output ripple: <30mV
Switching frequency: 150KHz
Working temperature: -forty Five~ +85
Size :43mm * 21mm * 14mm(Long*Width*Hight)
Features:
1. the range ofinput voltage: 3.2 V to 40 V dc(input voltage must be higher than to the output voltage of 1.5 V above. Can't booster)
2. the range ofoutput voltage: 1.25 V dc to 35 V voltage adjustable,high efficiency (92%)largest maximum output current is 3A.
Instructions:
1. Power (3-40V), power indicator light, the module is working properly.2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.
Note:
Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential.
Package Included:1pcs X LM2596S Module
