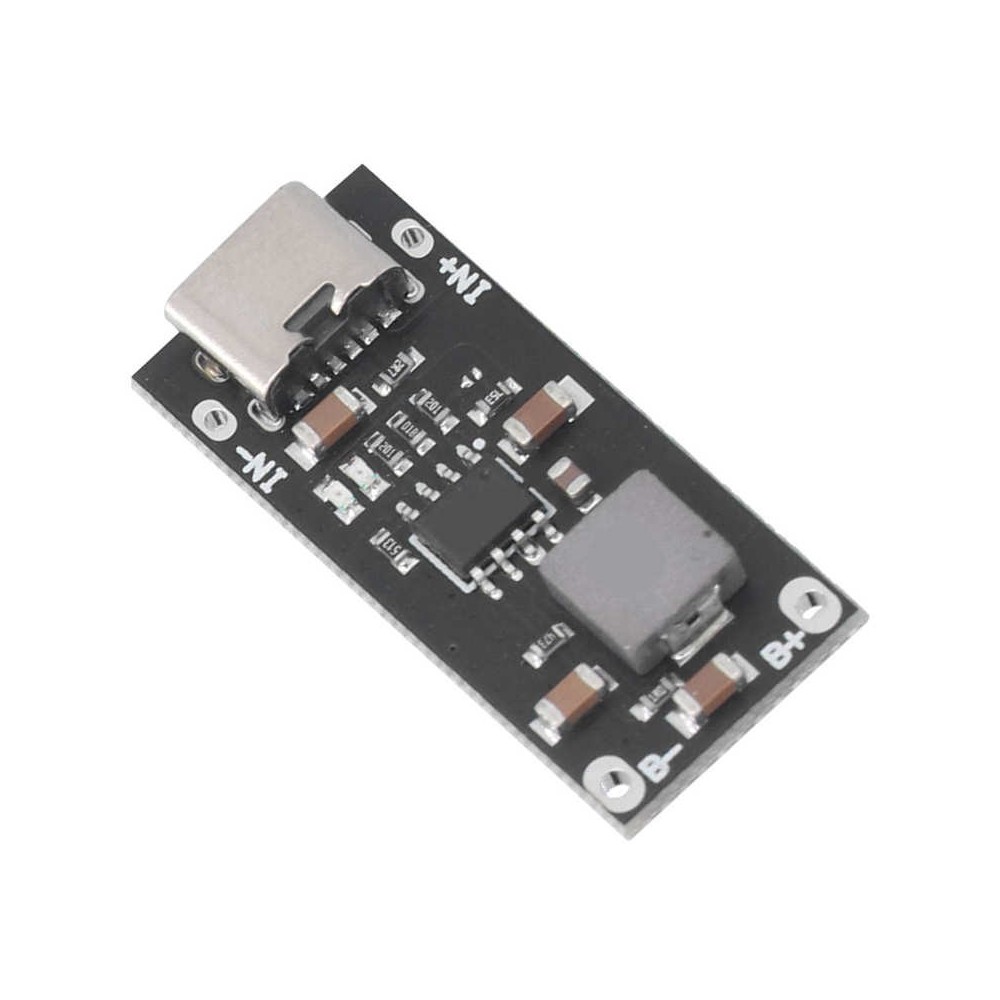

Charging Module Ternary Lithium Battery Charging Board for Lithium Battery
Feature:
1. IP2312 uses full CC/CV charging mode, 3A charging current, 4.2V charging cut-off voltage.
2. When the battery voltage is lower than 3V, it enters the trickle charging mode, charging the battery with a charging current of 100mA.
3. When the battery voltage is greater than 3V, enter the constant current charging mode, and charge the battery with the set constant current charging current.
4. When the battery voltage is close to 4.2V and the charging current is less than 300mA, it enters the constant voltage charging mode.
5. When the battery is fully charged, if it detects that the battery voltage is lower than 4.1V, it will start to charge the battery.
Specification:
Item Type: Charging Module
Main Control Chip: IP2312
Input Voltage: 4.5~5.5V
Charging Cut-Off Voltage: 4.2V
Charging Current: 3A (The Current Can Be Changed by Adjusting the Resistance)
Indicator Light: Red: Working Indicator Light. Blue: Full of Indicators.
Conversion Efficiency: 3A 93%, 2A 94%, 1A 95%
Package List:
1 x Battery Charging Board
Note:
1. Not applicable to 3.2V lithium iron phosphate batteries.
2. This product does not have the power indicator function, and does not have the battery protection function.
3. After entering the constant voltage mode, the charging stops every 4 minutes, and the battery voltage is detected to be higher than 4.15V: the charging is stopped if the battery voltage is higher than 4.15V, otherwise, the charging is continued, and the detection is performed after 4 minutes.
