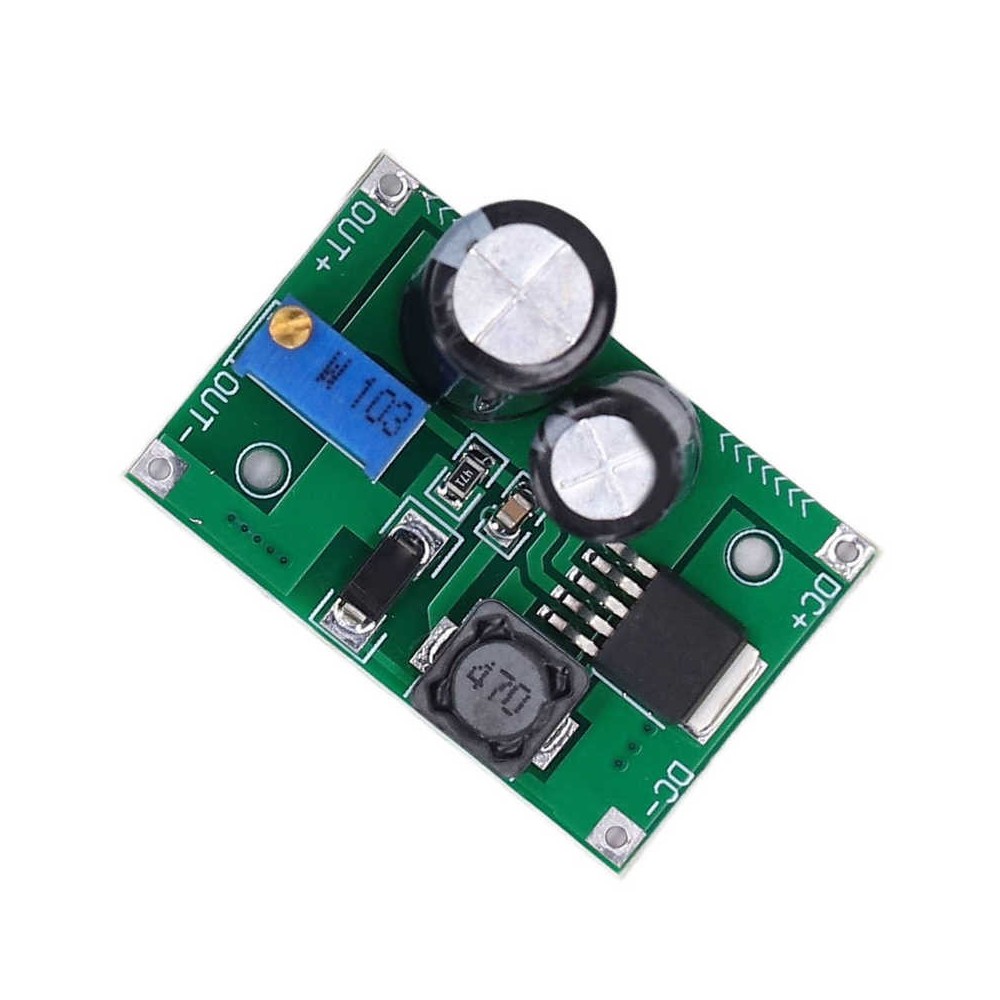

DC?DC Adjustable Module Power Supply Modules High Voltage Input Support Welding Accuracy
Feature:
1. Welding Accuracy: The use of high quality components and adjustable modules, welding accuracy and good performance.
2. Input Voltage Range: The input voltage range is DC3~80V (24/48/60/72V), supporting high voltage input.
3. Output Voltage Range: This is a module with an output voltage range of DC0~24V (3/5/12/24V).
4. Uses: Widely used for DIY mobile power supply, monitoring power supply, communication equipment power supply, etc.
5. Simple Work: This is a module that is simple to work, easy to use, and easy to install.
Specification:
Item Type: DC?DC Adjustable Module
Model: YYPOW-1
Input Voltage Range: DC3~80V (24/48/60/72V) Support High Voltage Input
Output Voltage Range: DC0~24V (3/5/12/24V)
Output Current Capacity: Within 800mA
Interface Information:
DC+: Input Positive.
DC-: Input Negative.
OUT+: Output Positive.
OUT-: Output Negative.
Working Environment Temperature: The highest temperature is 85 ?, the lowest temperature is -25 ?.
Board Size: Approx. 33.5mm x 22.5mm / 1.32in x 0.88in
Package List:
1 x DC-DC Adjustable Module
