Description:
Color: White + Green
Dimension: 3.2cm x 2.4cm x 1.8cm (approx)

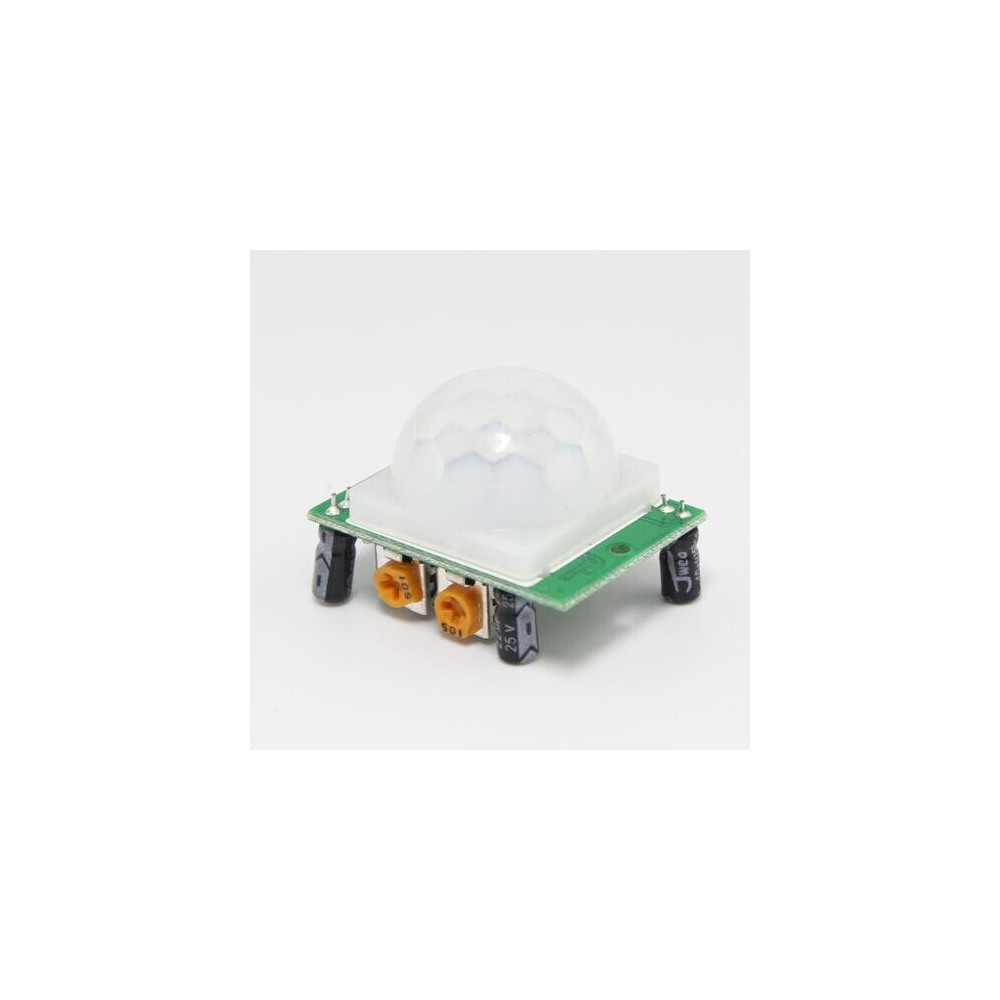

Infrared sensor with control circuit board
The sensitivity and holding time can be adjusted
Working Voltage Range: DC 4.5V- 20V
Current drain:<60uA
Voltage Output: High/Low level signal:3.3V TTL output
Detection distance: 3--7M(can be adjusted)
Detection range: <140°
Delay time: 5-200S(can be adjusted, default 5s +-3%)
Blockade time: 2.5 S (default)
Trigger: L: Non-repeatable trigger
Work temperature:-20-+80°C
Trigger Method: L unrepeatable trigger / H repeatable trigger
Package Included:
1* Sensor Detector Module HC-SR501
