Data List Option 11,12,21,22,31,32,1L, 1S, 2L, 2S
HLMx-Qx00 / Px00

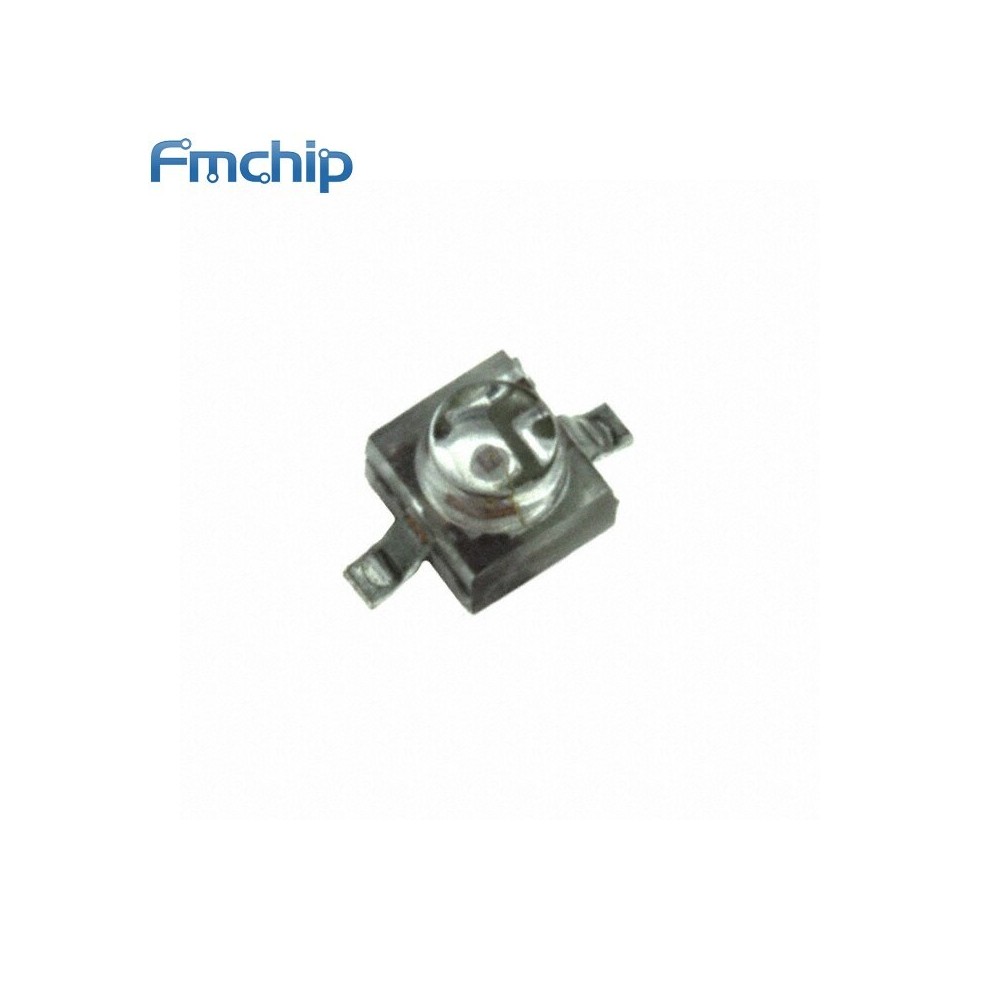

Product Photos HLMT-PL00-P0W11
Catalog Drawings LED Dome Gullwing Top
LED Dome Gullwing Side
Standard Package 1
Category Optoelectronics
Family LED indication - Discrete
series -
package Cut Tape (CT)
Colour amber
Wavelength - Dominant 590nm
Wavelength - 592nm
Cents candlelight rating 150mcd
Voltage - Forward (Vf) ( typical) 2V
Current - Test 20mA
Perspective 125 °
Lens Type Transparent
Lens Style / Size Round with Flat Top , 1.78mm
Package / Case 2-SMD, Gull Wing
Size / Dimensions 1.99mm x 2.21mm width length
height 2.16mm
Mounting Type Surface Mount
Luminous Flux Test Current 800 mlm
Catalog Page 2944 (CN2011-ZH PDF)
Other Names 516-1411-1
