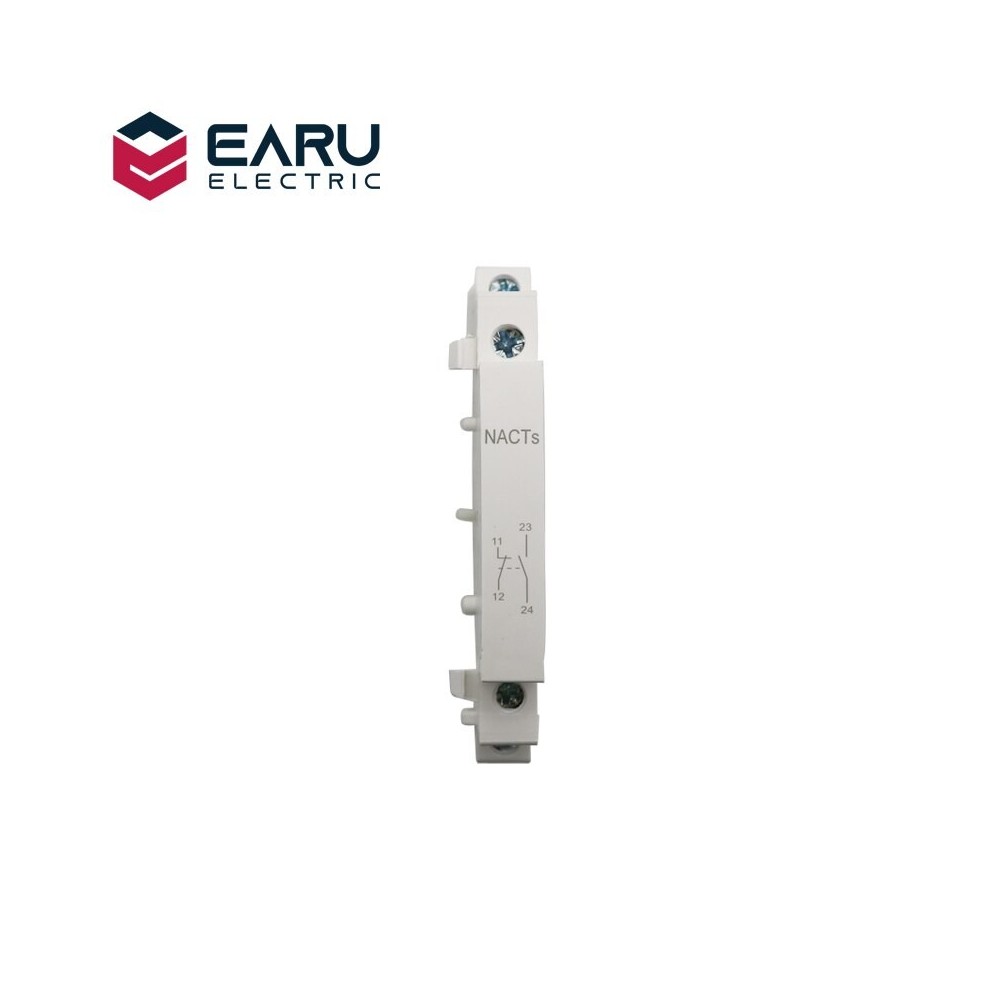

1NO1NC-1db O és F segédkontaktor háztartási AC kontaktorhoz AC 220V 230V 50-60Hz 2NO vagy 1NO 1NC IACTS Smart Home House Hotelhez
DESCRIPTIONS
AC contactor is a kind of control electric appliance which is applied for controlling from long distance on and break of Non-inductance or low-inductance load, electric resistance furnace, household appliances and similar application.
AC contactor belongs to modular controlling electrical equipment, which has novelty structure, compact size, it is DIN-RAIL type, size of modular, modeling artistic. use of safety, direct acting inversion. And it can install in the distribution boards along with breakers.
APPLICATION
Applicable to alternative circuit with rated voltage up to 400V, rated current up to 100A and rated frequency 50/60Hz. The product is used for remote switching and controlling of power circuit.
Normal operation and mounting requirement
Circumstance temperature -5C ~ +40C, average temperature within 24h not exceeding +35C.
Altitude above sea level less than 2000 m.
Humidity not exceeding 50% at 40C and not exceeding 90% at 25C.
Installation class II or III.
Pollution class 2.
Installation method DIN Rail mounting type.
The external magnetism shall not be more than 5 times of terrestrial one.
Product shall be installed at the place where there shall be no severe impact and vibration.
Product shall be vertically mounted onto standard Din rail 35mm.
