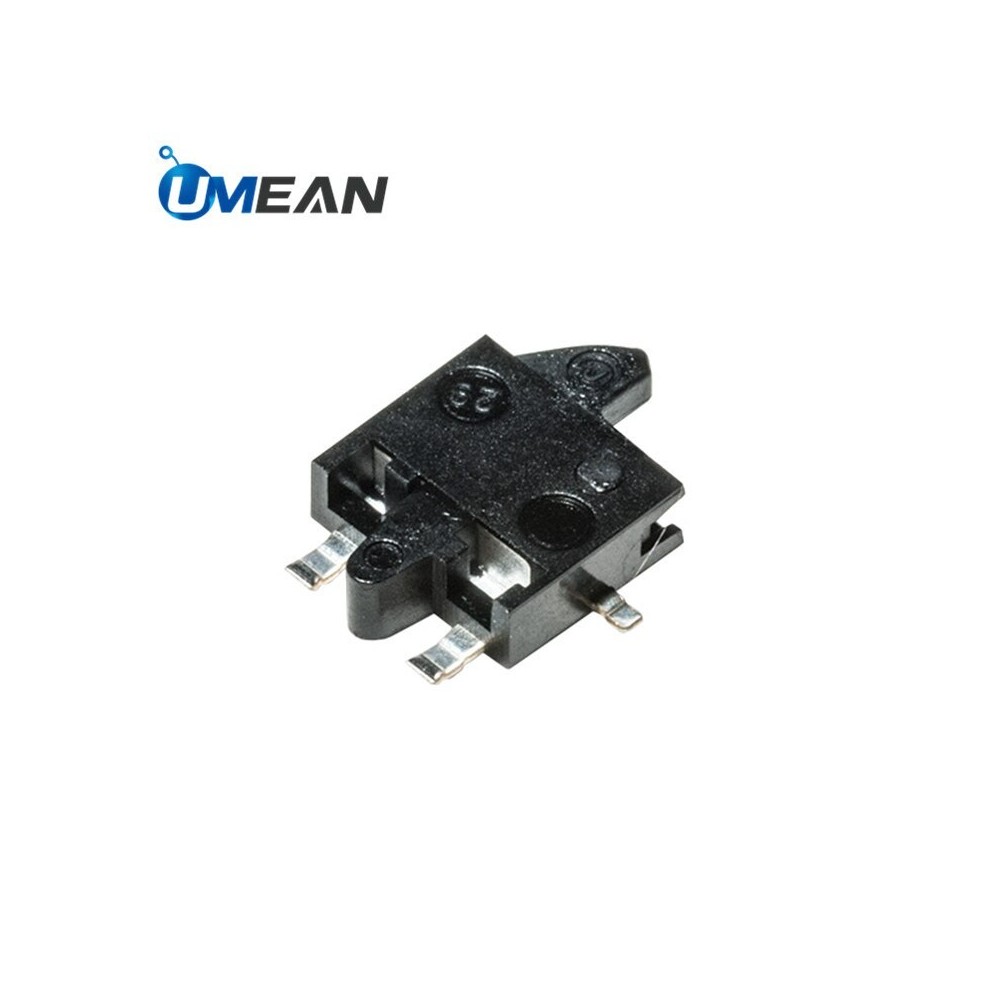

HDP001R Micro Mini Surface Mount Detect Switches
Features/Benefits
• Low profile
• Side actuation
• Right and left options available
• Low actuation force
• Lead free and halogen free
Typical Applications
• Consumer electronics
• Computers
• Medical devices
• Mobile Communications
• ATCA and MicroTCA devices
Specifications
CONTACT RATING: 1 mA 5 VDC
MECHANICAL AND ELECTRICAL LIFE: 100,000 cycles min.
CONTACT RESISTANCE: < 500 m ? initial.
INSULATION RESISTANCE: > 100 M ?
OPERATING TEMPERATURE: -20?C to + 70?C
STORAGE TEMPERATURE: -30?C to + 80?C
PACKAGING: tape & reel, 2,500 per reel.
TRAVEL:
Pre-travel 0.15 mm min.
“ON” starting position 2.96 +/- 0.25 mm
Total: 1.3 mm
Mechanical: 1.9 mm
Materials
BASE: PA 46 (UL94HB) - halogen free
ACTUATOR: PA 46 (UL94HB) - halogen free
HDP001R - black body/actuator
HDP001L - grey body/actuator
MOVABLE CONTACTS: Stainless Steel, Silver over nickel plate.
FIXED CONTACTS/TERMINALS: Phosphor Bronze, Silver plate.
