Specification:

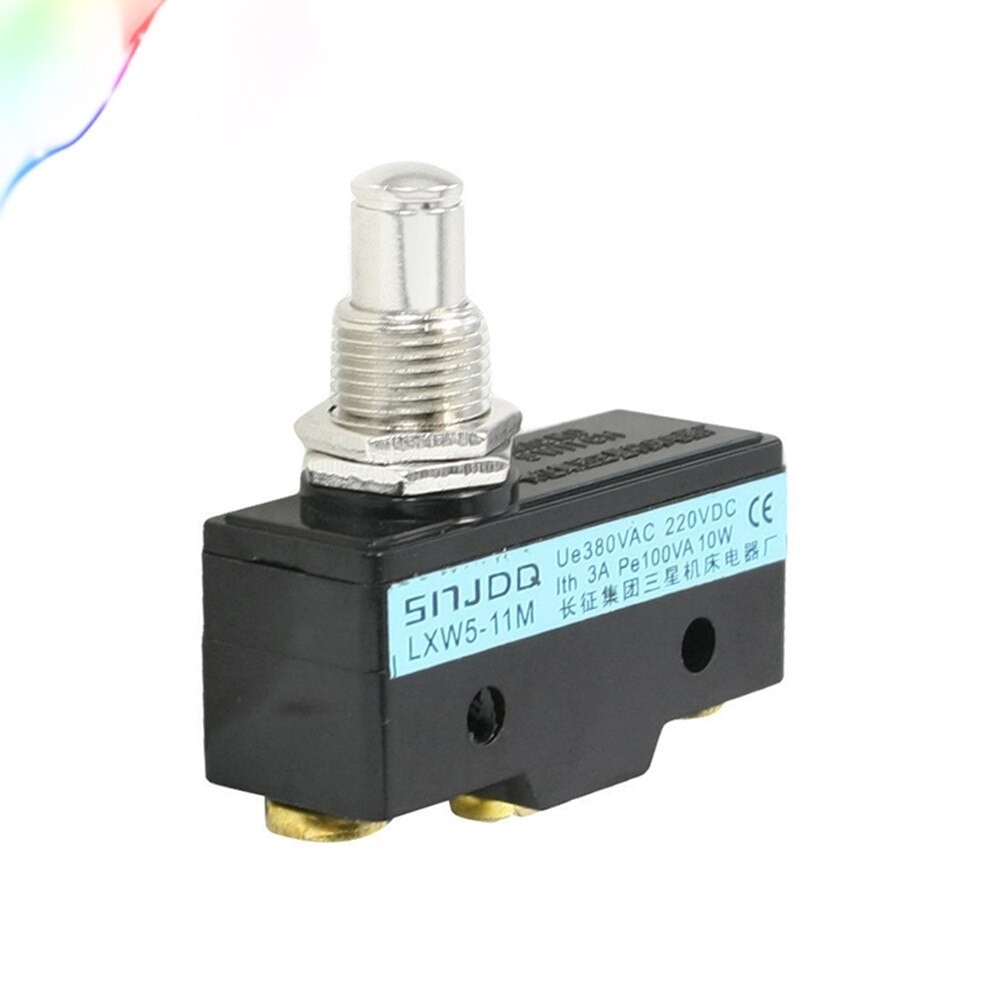

Product Name Limit Switch
Model No. LXW5-11M
Terminal 3 Screw Terminal
Actuator Type Push Plunger
Contact Configuration 1NO,1NC(SPDT)
Ue AC 380V, 220VDC
Ith 3A
Pe 100VA, 10W
Switch Body Size 5 x 1.8 x 2.7cm / 1.97 x 0.7 x 1.1"(L*W*H)
Fixing Holes Dia. ~0.4cm / 0.16“
Distance Between Centers of Fixing Holes ~2.5cm / 0.98"
Actuator Size Height from Body (open): ~1.8cm / 0.71”
Height from body (closed): ~1.3cm / 0.51"
Thread: 1.2 x 1cm / 0.47 x 0.39" (D*H)
Color Black,Gold Tone

Package Content 1 x Limit Switch
Description:
Features: Top Push Plunger Actuator, 1NO+1NC Conatact Congfiguration, 3 Screw Terminals.
Applicable to both AC control circuits and DC control circuits.
Designed to control the movement of a mechanical part.
Typically utilized in industrial control applications to automatically monitor and indicate whether the travel limits of a particular device have been exceeded.
