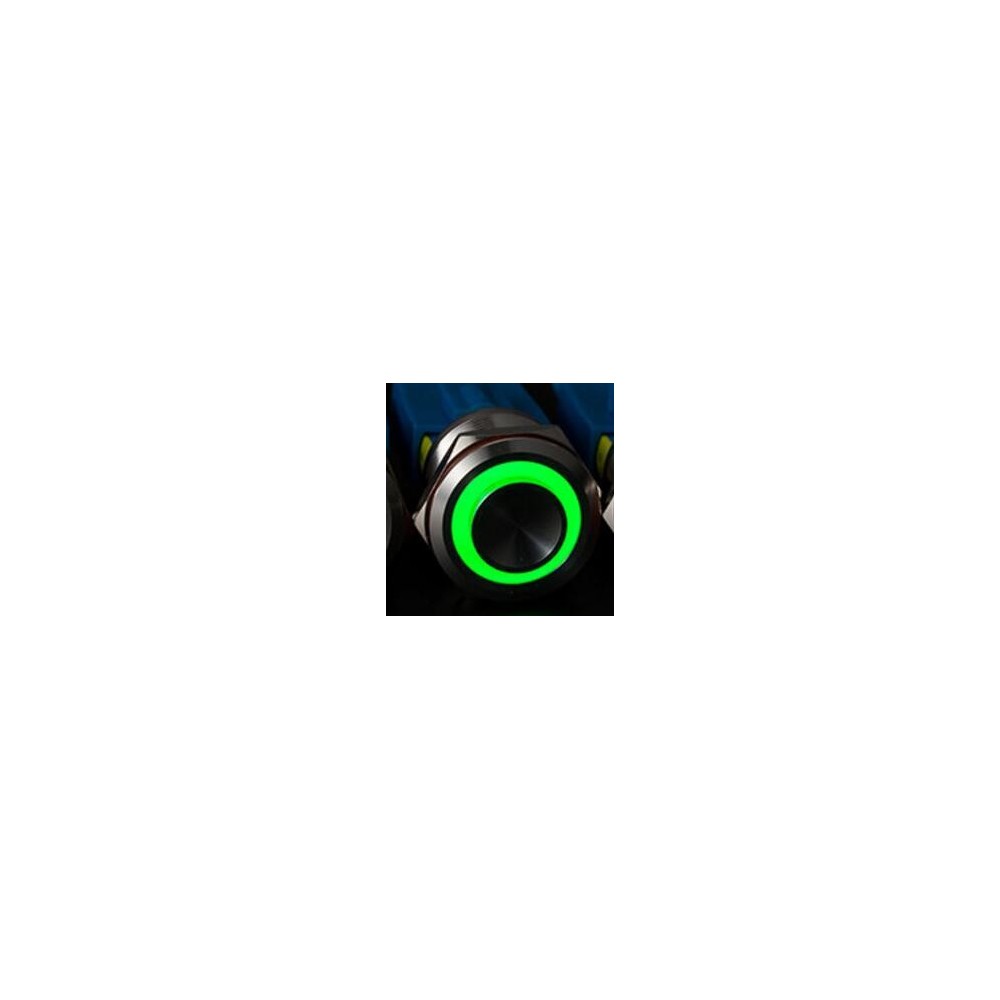

16mm Momentary and Latching High Flat Head Push Button Switch 24V Angel Eye LED Waterproof
Momentary switch
Momentary: Means that when you push switch and then move your finger, the actuator will back to the original position.
Latching: Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
Widely Use
Widely used in various additional electricequipment, relay, inside & outside the car(Such as critical lights,foglight, dome light) or any circuit controls -- any application you can thinkof! The switch is IP67 rated, it is also an anti dust and waterproof one whichmakes it great for outdoor use.
Specification:
- Switch Rating: 5A/250VAC
- Contact resistance: ?30m?
- Insulation resistance: ?1000m?
- Dielectric intensity: 2000VAC
- Operation Temperature: -20 ?~ +55?
- Mechanical life: 1,000,000 cycles
- Electrical life: 200,000 cycles
- Panel thickness: 1 - 10mm
- Nut torque: 5 - 14Nm
- Protection level: IP65, IK10
- Mounting Cut Hole: 16mm
- Switch Contact: 1NO 1NC
- LED Pattern: Ring Indicator
- Contact Material: Silver alloy
Note:
- The switch come with a rubber O-ring whichmakes it splash resistant but it can NOT be submerged underwater.
