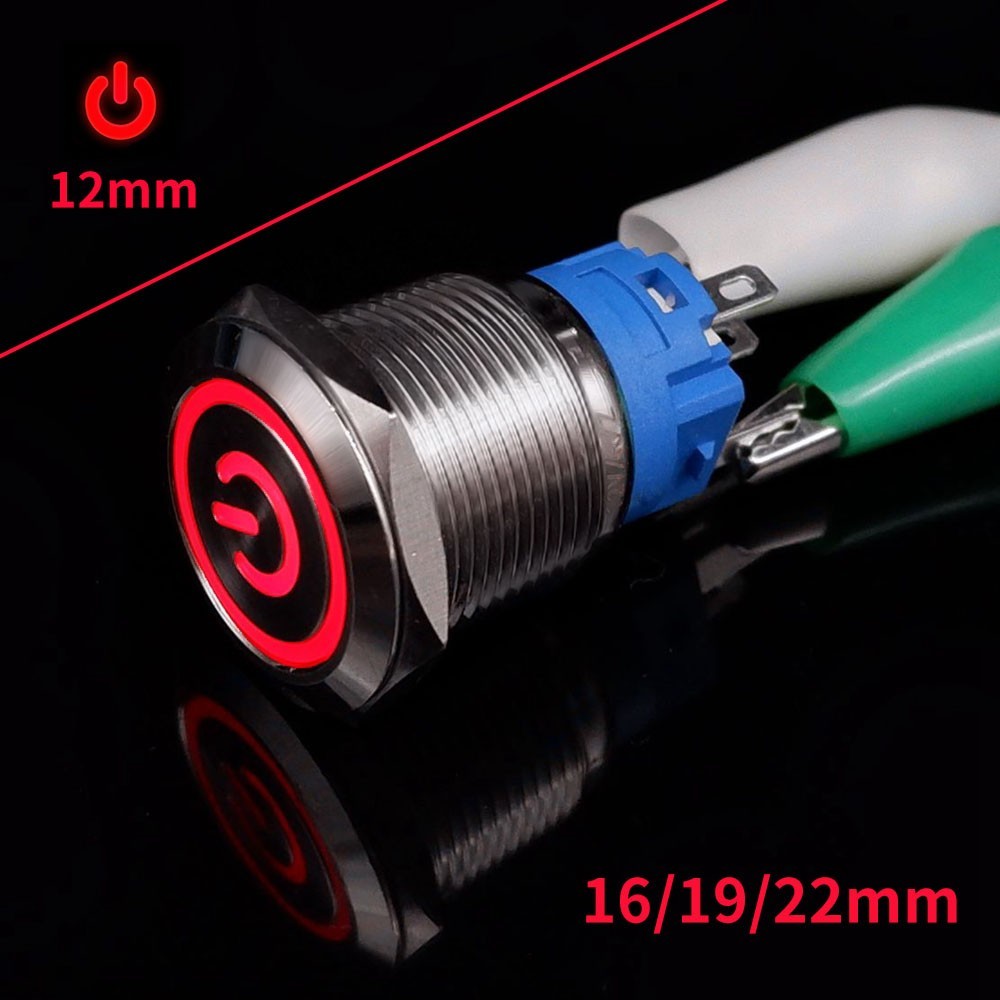

Product Name: Push Button Switch
12mm:1NO
16/19/22mm:1NO1NC
Opening Diameter:12mm/16mm/19mm/22mm
Max Current: 3A
Operation Type: Self-recovery ?Self-locking
Material: Brass nickel plating
LED Colors: Red Yellow Blue White Green
LED Voltage: 3-6V, 9-24V, 110-220V
Waterproof Level: IP65?16/19/22mm?
No waterproof design for 12mm
Customization: Yes , please leave a message to us
Due to manual measurement, please allow a little error.
Non-polarity LED lamp makes wiring more convenient. High brightness and long service life.
The metal shell can resist corrosion, pressure and wear.
With rubber sealing ring, waterproof and dustproof.
Flame retardant base, fire and electricity proof, safer use.
Certificate
This metal push-button switch has many uses. For example, it is used in cars, computer mainframe, audio, socket, remote control and other places where you need switch control.
Factory direct sales, sufficient supply.
Switch Tip
1.Momentary/Self-reset: When you press the button, press-key will automatically return.
2.Fixed/Self-locking: When you press the button, press-key will stay in position until you press again.And then the press-key return.
Wiring Instructions
1.What does the signal “C”?"NC" and "NO" means?
" NC ": Normal Close
" NO ": Normal Open
" C " : Common
2.How to connect?
(1).Connect " NO " and " C " : The circuit is alway open unless press the button.
(2).Connect " NC " and " C " : The circuit is alway close unless press the button.
3.Do lights and switches have electrodes?
The lamp and switch have no electrode, no need to divide the positive and negative poles when wiring.
Wiring Diagram(12mm)
1?The button turns the LED light on and off?the circuit is alway open unless press the button.
2?LED lights are always on?the circuit is alway open unless press the button.
Wiring Diagram(16/19/22mm)
1?The button turns the LED light on and off?the circuit is alway open unless press the button.
2?LED lights are always on?the circuit is alway open unless press the button.
3? The button turns the LED light on and off?the circuit is alway close unless press the button.
4?LED lights are always on?the circuit is alway close unless press the button.
