Nincs szín - 0,86 hüvelykes Oled Iic soros fehér Oled kijelzőmodul I2C 12864 LCD SSD1306 W1G2
Nincs szín - 0,86 hüvelykes Oled Iic soros fehér Oled kijelzőmodul I2C 12864 LCD SSD1306 W1G2
113 Ft
58,5% megtakarítás
273 Ft
Nincs adó
Description:
Description:

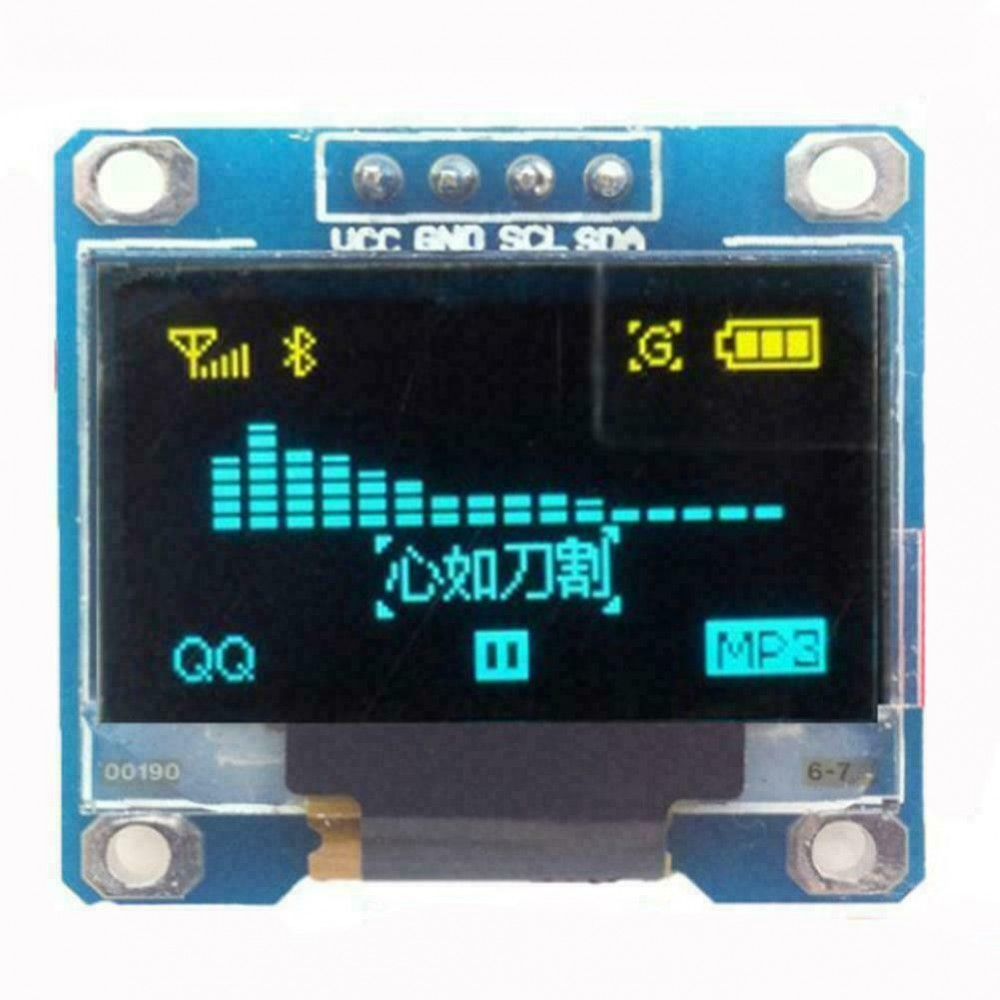

128*64 LED display module for Arduino, supports many control chip.
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V 5V DC
Working Temperature: -30 â„ 70 â„
Character Colors: WhiteBlueYellow blue
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306
Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of
your monitor and light brightness
Package Includes:
1PC*128x64 Blue LED display module
Preview:
Description:
128*64 LED display module for Arduino, supports many control chip.
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V 5V DC
Working Temperature: -30 â„ 70 â„
Character Colors: WhiteBlueYellow blue
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.70* 19.26* 1.85mm/1.03*0.76*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306
Note: The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of
your monitor and light brightness
Package Includes:
1PC*128x64 Blue LED display module
Preview:
