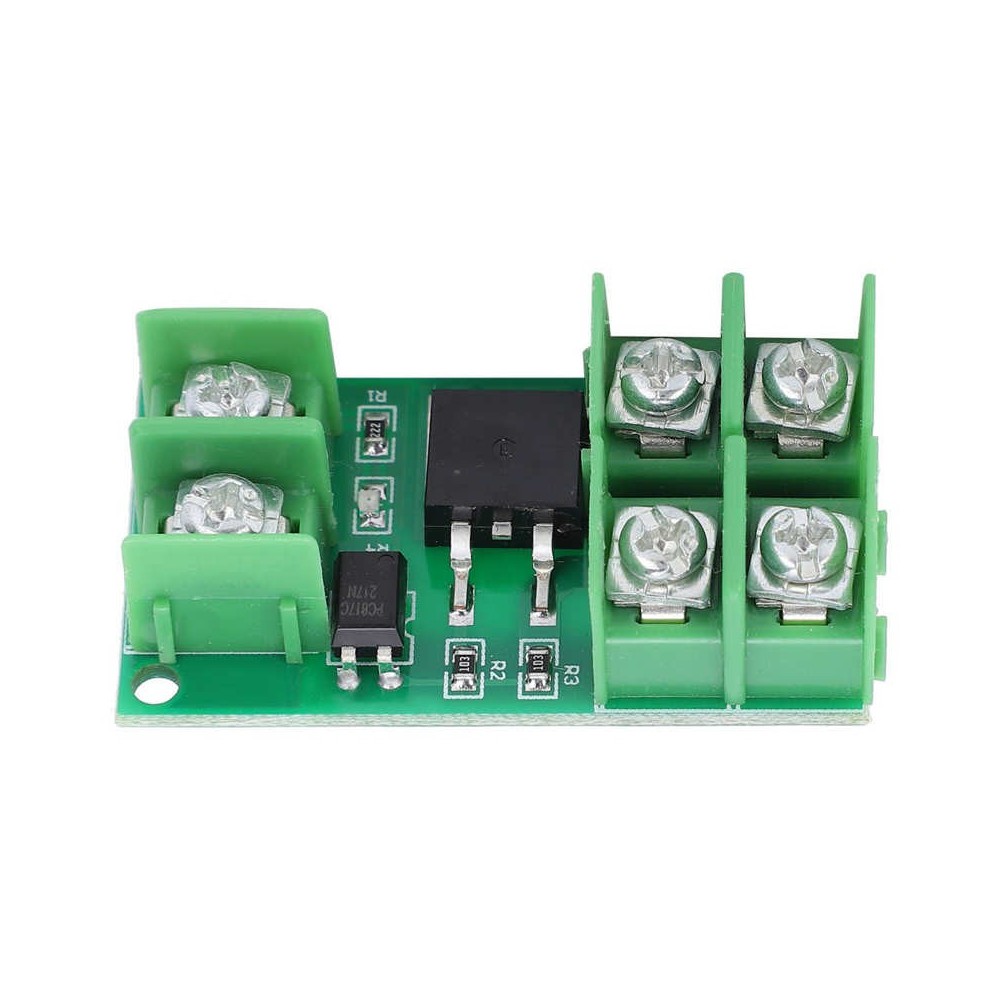

MOS Tube Module PMOS Switch Field Effect Tube Board for High?Power Equipment Control
Feature:
1. Signal trigger terminal: digital high and low level. Can be connected to MCU IO port, PLC interface, DC power supply, etc.
2. Our MOS tube module adopts MOS active output to show lower internal resistance,greater electric current and power.
3. The original F5305S power field effect tube is used, which can input PWM to control the motor speed and the brightness of the lamp.
4. Low voltage and low current of our product can be used to control high?power devices, such as motors, large bulbs, high?power LEDs, etc.
5. With professional design and reasonable structure, our MOS tube module is easy to replace and install.
Specification:
Item Type: MOSTubeModule
Product Description:
1. Field effect tube module, input and output are completely isolated.
2. Input Signal Voltage: 3V~24V; current: Approx. 5ma.
3. The output terminal can control high-power equipment, motors, bulbs, LED strips, DC motors, micro water pumps, solenoid valves, etc.
4. Output controlled voltage: 5V~36V. Current: less than 5A, more than 5A need to add a heat sink, the maximum can not exceed 20A.
Package List:
1 x MOSTubeModule
