Description:

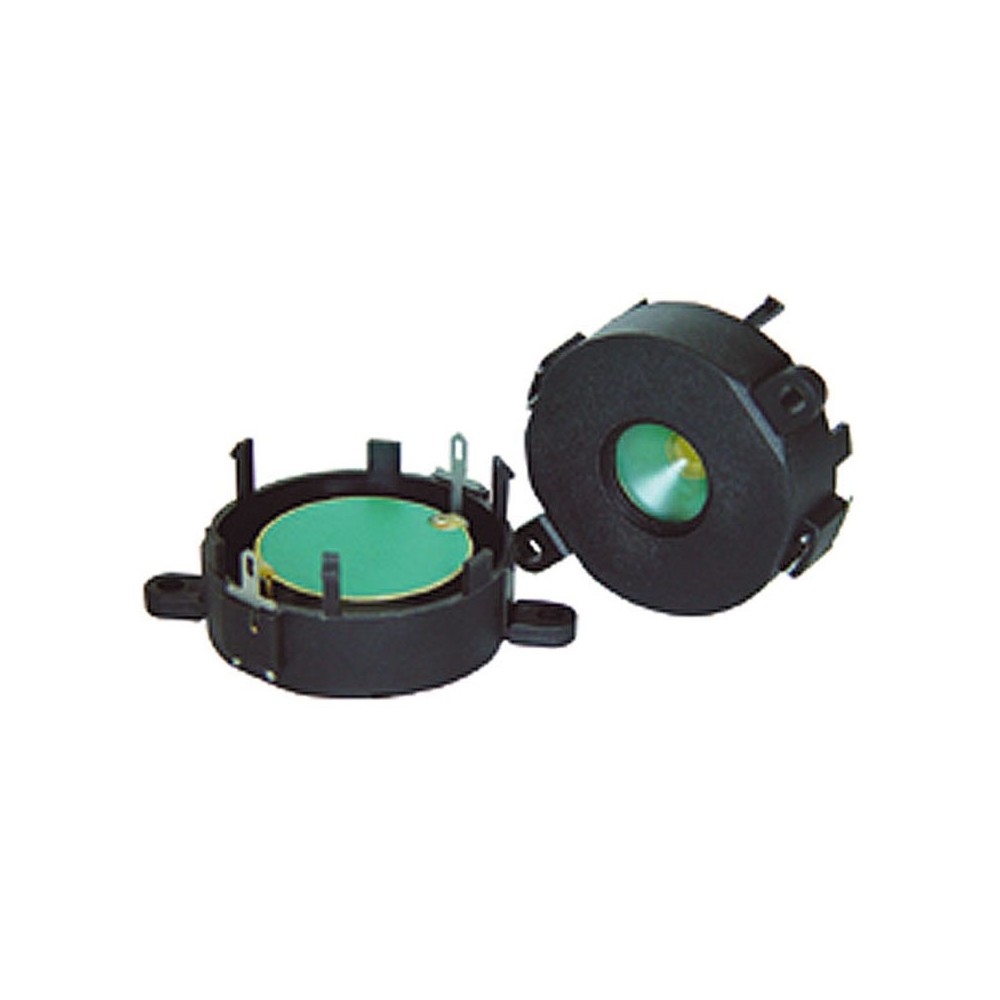

Piezoelectric passive buzzer is small in size, good in stability and widely applicable.
Thickened ABS shell, made of ABS material, excellent material, long service life.
High decibel prompt, the buzzer sound is loud, so people can not ignore it, and respond in time.
Stable performance, small volume, light weight and good stability.
It is applicable to a variety of equipment, and is widely used as a sound emitting device in electronic products such as computers, printers, copiers, alarms, electronic toys, automobile electronic equipment, telephones, timers, etc.
New and high quality
Name: 4523
Size: as shown in the figure
Material: ABS
Color: Black
Model: sw4523p-3012 processing customization: Yes
Type: buzzer (chip) drive mode: piezoelectric (crystal)
Rated frequency (kHz): 3.0 ± 0.3
Operating frequency (kHz): 2.2 ~ 4.0
Rated voltage (VDC): 12
Operating voltage (VDC): 5 ~ 50
Sound output at 30cm (DB): ? 95 (squ ave wave)
Current consumption (MA): ? 100
Capacitance at1000hz (PF): 250 ± 30%
Operating temperature (?): - 30 ~ + 90
Storage temperature (?): - 40 ~ + 100
Package includes:
1pc
Note:
1. Due to manual measurement, please allow an error of 1-3mm.
2. As different computers display different colors, thank you for your understanding, the actual product color may be slightly different from the image.
