Product Description:
Supports development boards such as for Arduino UNO and Mega2560 for plug-in use without wiring
480X320 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Provides an for Arduino library with a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support
Product Parameters
Name Parameter
Display Color RGB 65K color
Screen Size 3.5(inch)
Type TFT
Driver IC ILI9486
Resolution 480*320 (Pixel)
Module Interface 8-bit parallel interface
Active Area 73.44*48.96(mm)
Module PCB Size 85.49*55.63(mm)
Operating Temperature -20?~70?
Storage Temperature -40?~70?
Operating Voltage 5V/3.3V
Power Consumption TBD
Applicable for Arduino UNO & MEGA 2560 development board, compatible with UTFT / UTFT_Buttons / Utouch Library for Arduino Mega2560.
This LCD display module is based on ILI9486/ILI9488L controller, high quality for a long time use.
Packing list:

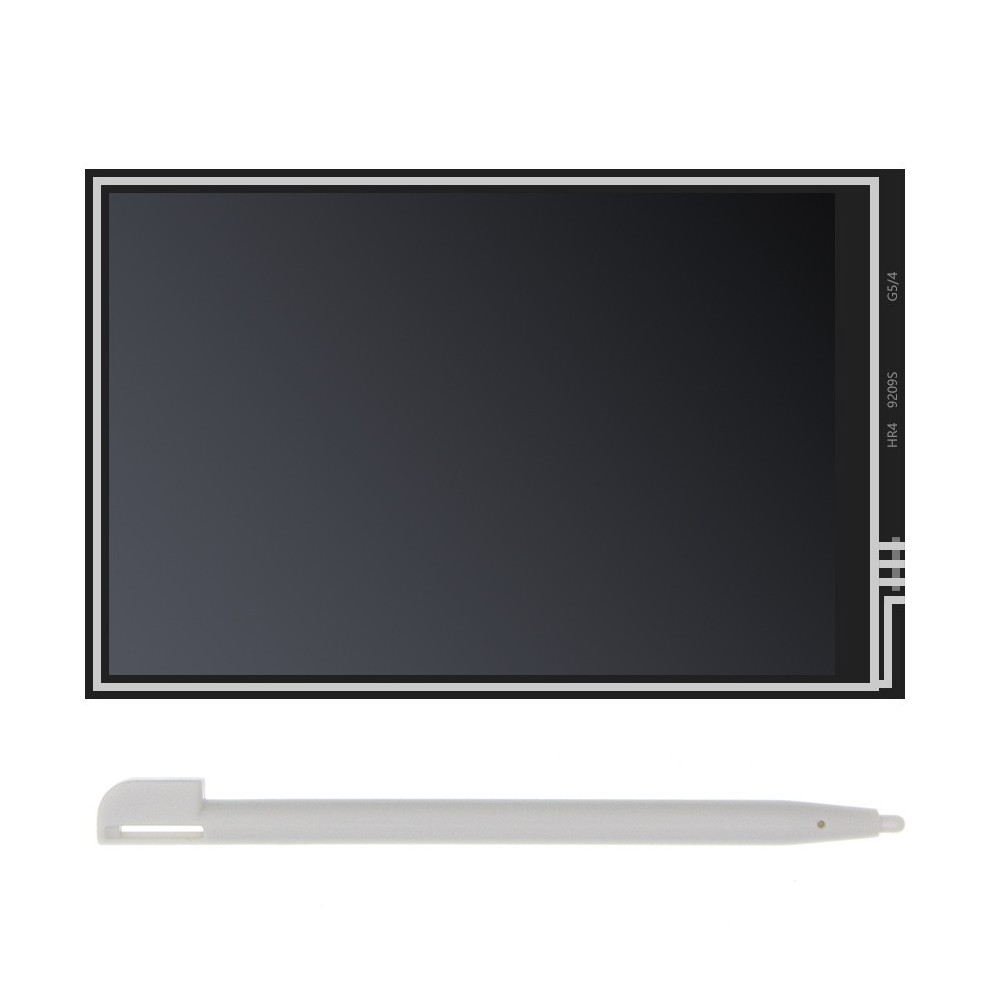

1 * LCD Screen with Touch Panel
Note:
1. Due to the difference between monitors and light effect, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
