Detail Description:
Description:

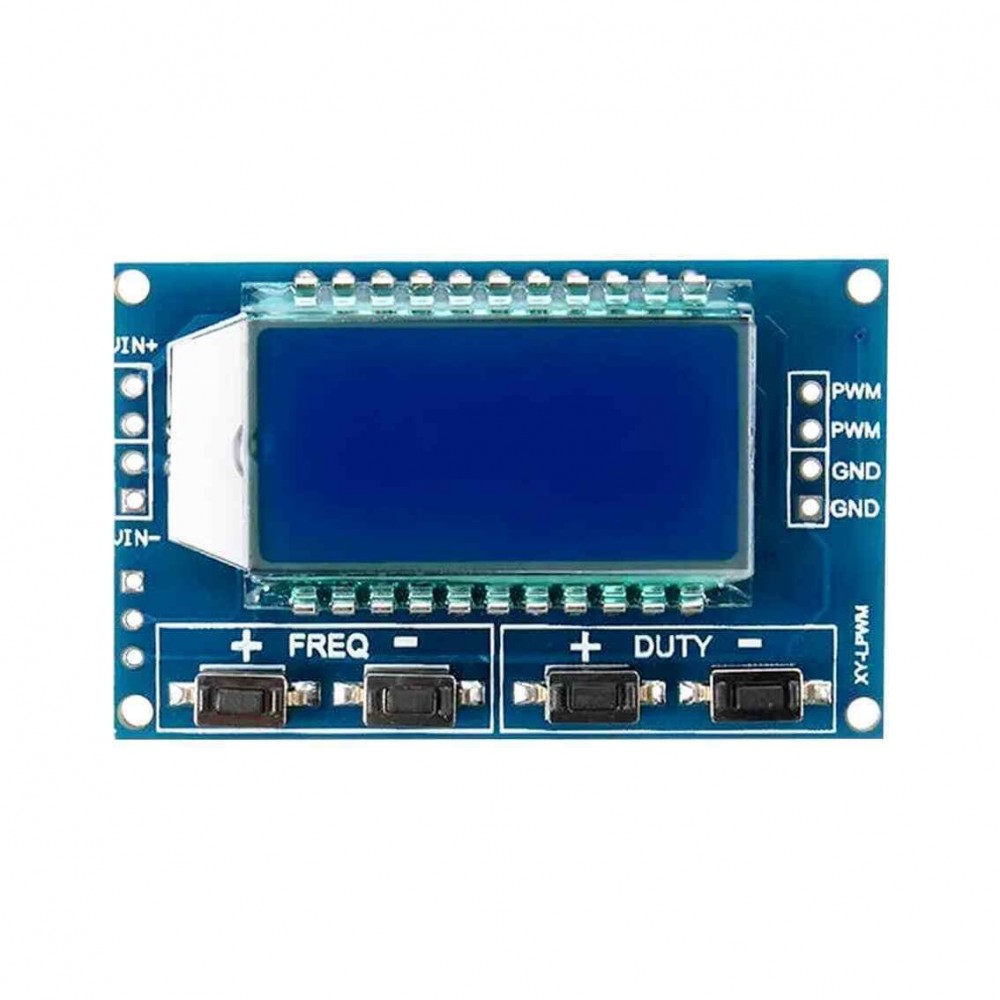

The PWM Pulse signal generator module is completely adjustable from 1Hz to 150KHz, adjustable duty ratio and equipped with TTL serial communication interface.
The amplitude of pulse output is equal to voltage supply input.
The module has for stand-alone keys which are used for setting the frequency and duty cycle. The module automatically saves set parameters.
Specifications:
Frequency Range: 1Hz – 150KHz
Duty Ratio Range: 0 – 100%
Supply Voltage: 3.3 – 30V
Output PWM amplitude is equal to supply voltage
Dimensions: 32.5mm x 52.5mm
Contents:
1 x PWM Adjustable Pulse Duty Cycle Module
