Description:

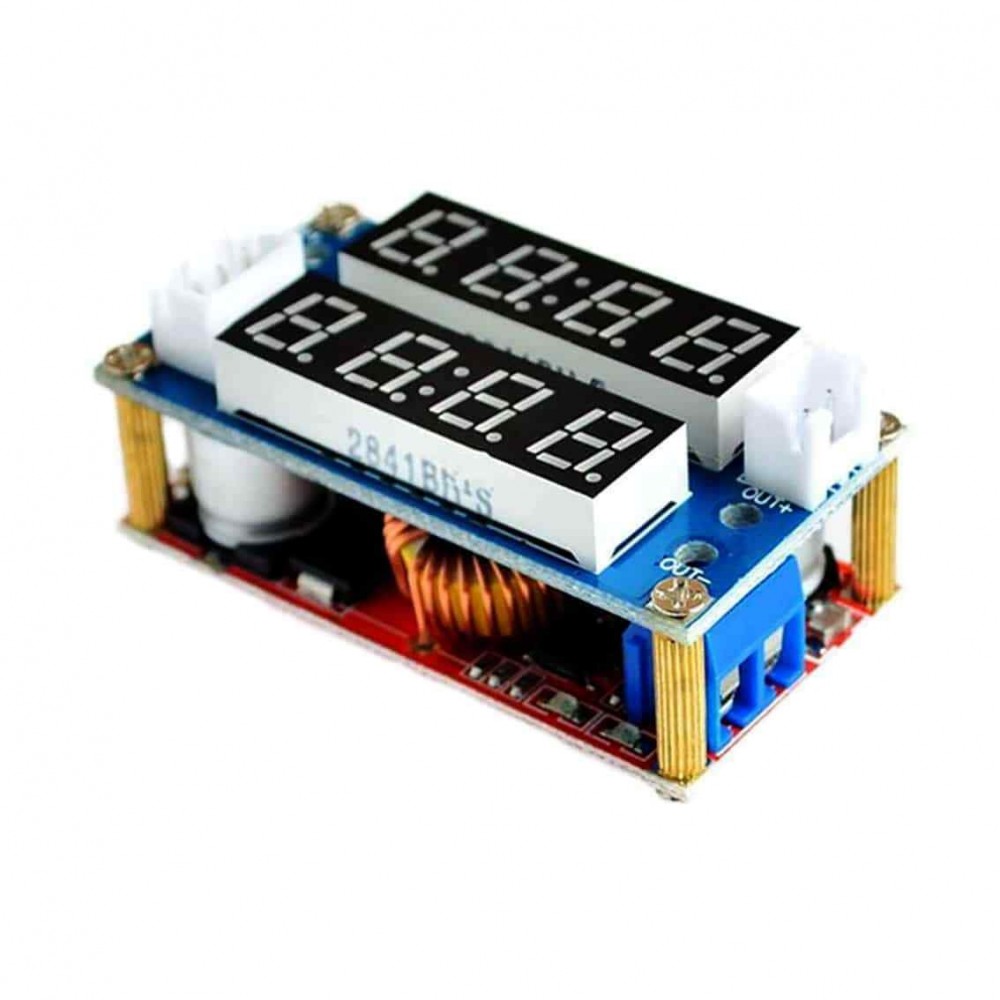

This Power Supply module that can output constant current (CC) or constant voltage (CV) up to 5A max.
The module is also equipped with voltmeter and ammeter for info/monitoring of voltage and current outputs.
Specifications:
Input voltage: 5V – 32V DC
Output voltage: 0.8V – 30V DC
Output current: 5A (Maximum)
Switching frequency: 300KHz
Output ripple: 50mV (Maximum) 20M bandwidth
Load regulation: + / – 0.5%
Voltage regulation: + / – 2.5%
Measurement accuracy: 0.1%
Display refresh rate: ~ 200ms
Operating temperature: -40C – 85C
Dimensions: 51mm x 26.3mm x 14mm
Contents:
1 x 5A DC-DC Adjustable Step Down CC CV Power Supply Module with Voltmeter and Ammeter
