Description:

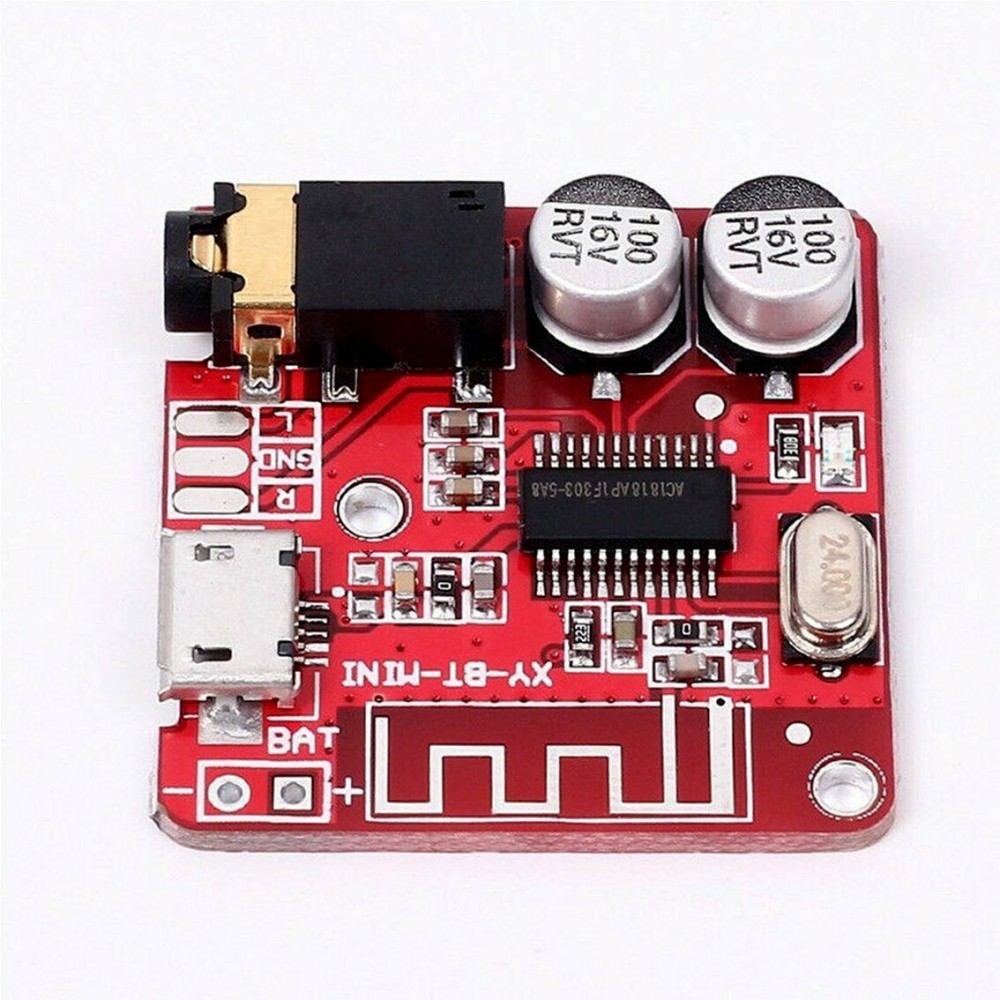

The XY-BT-Mini is Bluetooth audio module with a 3.5mm stereo jack output.
When the board is powered up the board enters Bluetooth mode and blue light is on, a voice will announce "The Bluetooth device is ready to pair" advising the board is in a ready to pair state. Search the board on your device you wish to connect with, the board's name is "XY-BT", connect to the device. Once the device is successfully connected another voice will announce "The Bluetooth device is connected successfully". You will now be able to stream audio to the board.
Specifications:
Operating voltage: 3.7 – 5V DC
Power input: Micro USB
Output power: 3W * 2
Audio output: 3.5mm stereo jack
SNR: 90dB
THD+N: -70dB
Crosstalk: -86dB
DNR: 91dB
Profiles: A2DP / AVCTP / AVDTP / AVRCP / HFP
LOS: >15m
Bluetooth version: 4.1
Dimensions: 68mm x 48mm x 10mm
Contents:
1 x XY-BT-Mini 4.1 Bluetooth Module
