Description:
Microcontrollers that do not have an analog-to-digital converter or when you want a higher-precision ADC. This ADS1015 based breakout board provides 12-bit precision at 3300 samples/second over I2C. It can be configured as 4 single-ended input channels or two differential channels. It even includes a programmable gain amplifier, up to x16, to help boost up smaller single/differential signals to the full range. It runs from 2V to 5V power/logic, can measure a large range of signals and it's very easy to use. It is a great general-purpose 12-bit converter.
Specifications:
Resolution: 12 Bits
Programmable Sample Rate: 128 to 3300 Samples/Second
Power Supply/Logic Levels: 2.0V to 5.5V
Low Current Consumption: Continuous Mode: Only 150¦?A Single-Shot Mode: Auto Shut-Down
Internal Low-Drift Voltage Reference
Internal Oscillator
Internal PGA: up to x16
I2C Interface: 4-Pin-Selectable Addresses
Four Single-Ended or 2 Differential Inputs
Programmable Comparator
Contents:

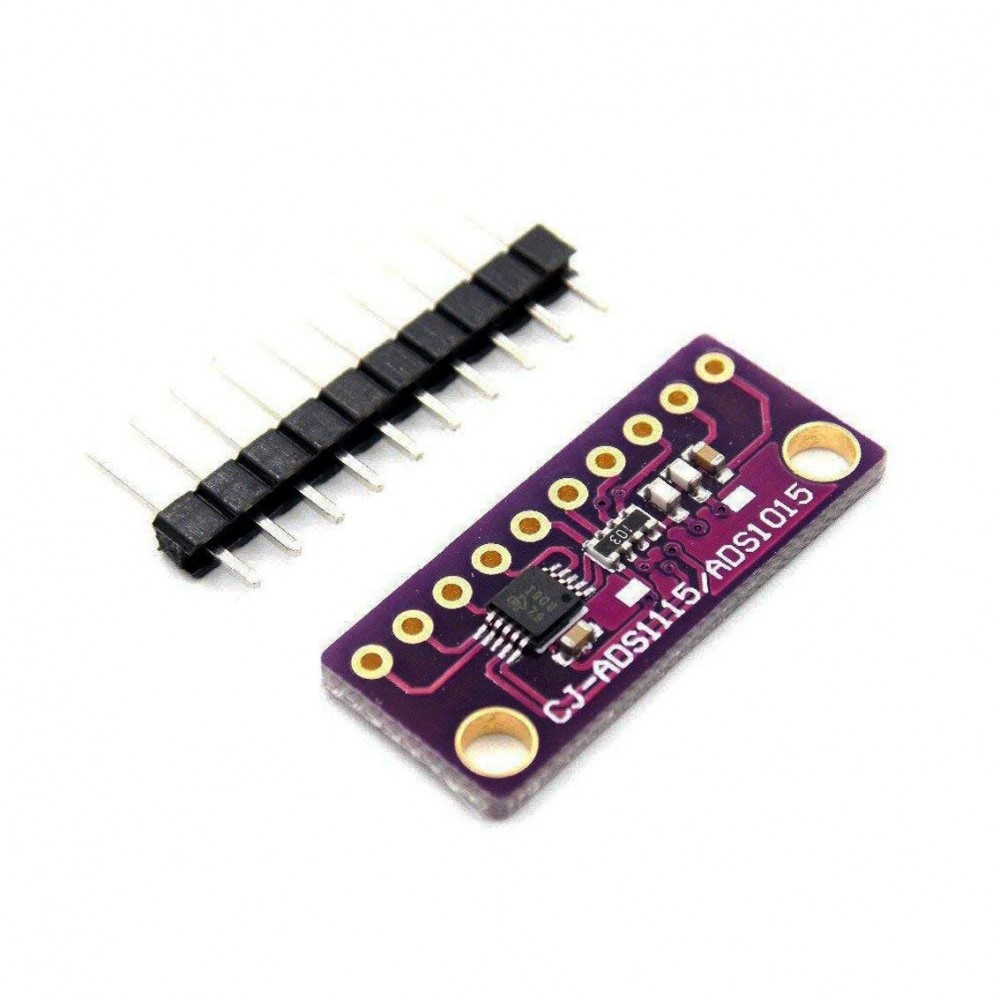

1 * ADS1015 I2C 12 Bit ADC Module
1 * Headers
