Description:

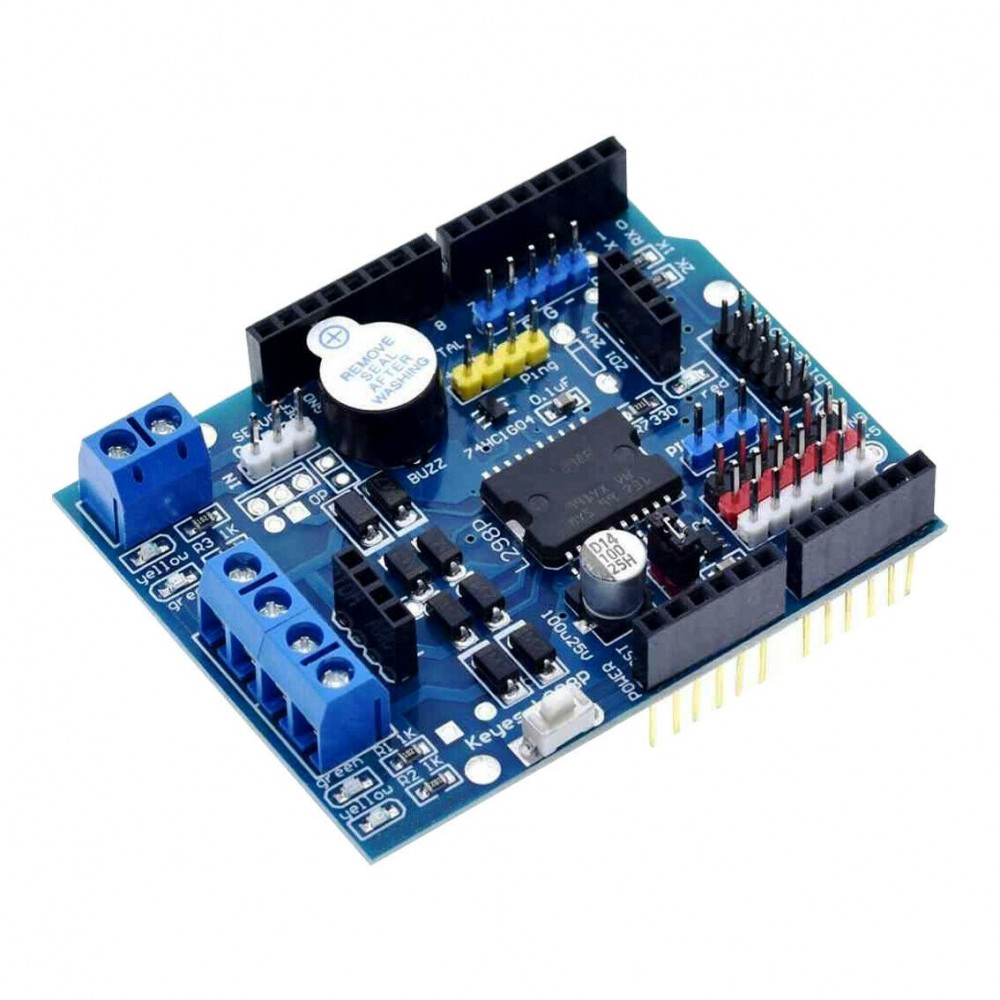

The L298P PWM Motor Drive Expansion Shield can drive two DC motors up to 2A.
Speed and direction of the motors are controlled by using PWM. The Arduino pins are exposed on this shield for easier connection to other devices.
Specifications:
Logical input voltage VD: 5V
Drive input voltage: VIN 6.5 -12V, PWR IN 4.8 -24V
Logical working current Iss: ? 36mA
Drive working current Io: ? 2A
Maximum power dissipation: 25W (T= 75°C)
Control signal input electric level:
High-level:2.3V? Vin ? 5V
Low-level: -0.3 V ? Vin ? 15V
Contents:
1 x L298P PWM Motor Drive Expansion Shield
