Detail Description:
Description:
This module features the MPU-6050 3-axis gyroscope and accelerometer. Also included on the board are pull-up resistors on the SDA and SCL lines as well as a 3.3V voltage regulator.
Specifications:
Three-axis gyroscope and a three-axis accelerometer
Power Supply: 4.3 to 9 V (on-board KB33 low dropout regulator)
Communication Modes: standard IIC (I2C) communications protocol
Chip built-in 16bit ADC converter, 16-bit data output
Gyroscope Range: +/-250, +/-500, +/-1000, +/-2000 °/s
Acceleration Range: +/-2g, +/-4g, +/-8g, +/-16g
Dimensions (excluding pins): 21.2mm (0.84?) length x 16.4mm (0.65?) width x 3.3mm (0.13?) height
Contents:

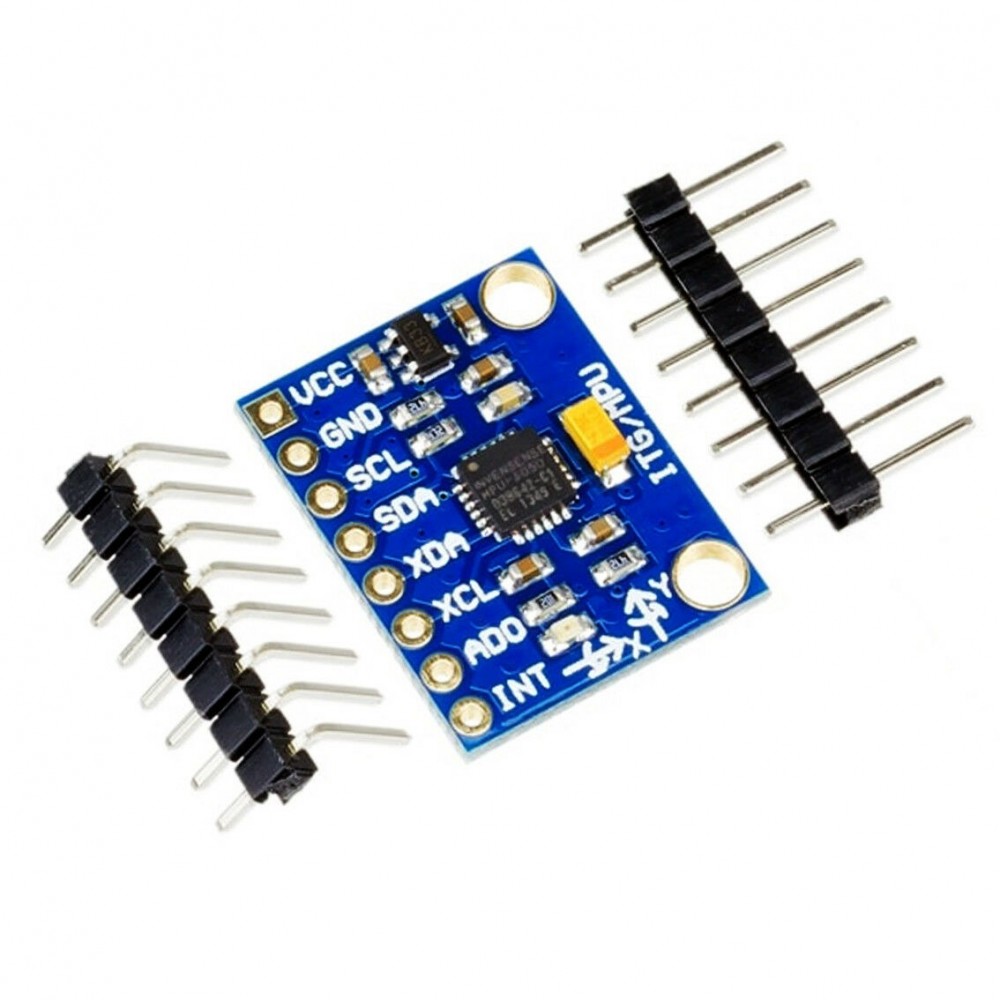

1x GY-521 MPU 6050 3-Axis Analog Gyroscope and Accelerometer
1x Eight pin straight header
1x Eight pin angled header
