Description:

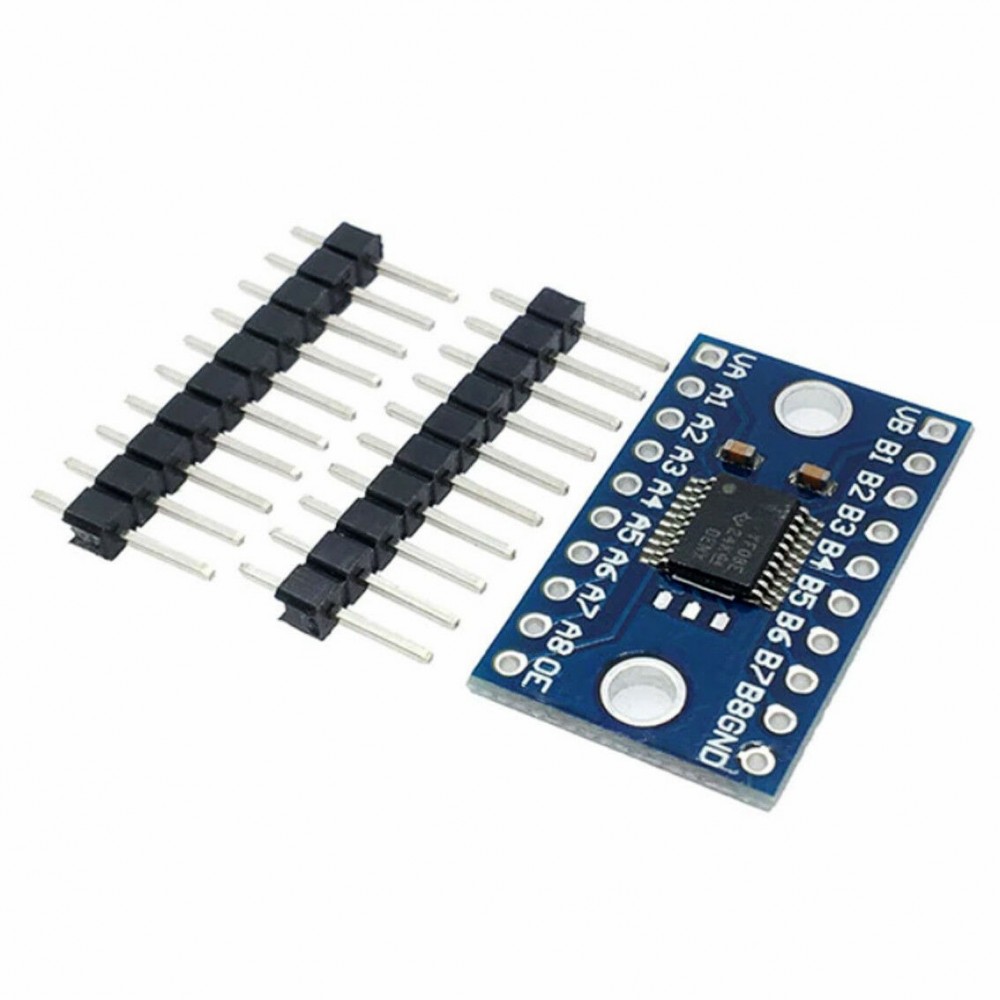

This 8 Channel Bi-Directional Logic Level Converter gives the ability to make a connection between devices operating at different voltages. The device can provide 3.3V – 5V, 1.8V – 3.3V and other common level conversion capabilities. The VCCA side of the board supports voltages from 1.2V to 3.6V and the VCCB side of the board supports 1.65V to 5.5V.
Specifications:
Voltage:
VCCA: 1.2V – 3.6V
VCCB: 1.65V – 5.5V
Current: 50 mA
Maximum transfer speed for push-pull: 110 Mbps
Maximum transfer speed for open drain: 1.2 Mbps
Dimensions: 26 mm x 16 mm x 3 mm
Contents:
1 * 8 Channel Bi-Directional Logic Level Converter TXS0108E
