Description:

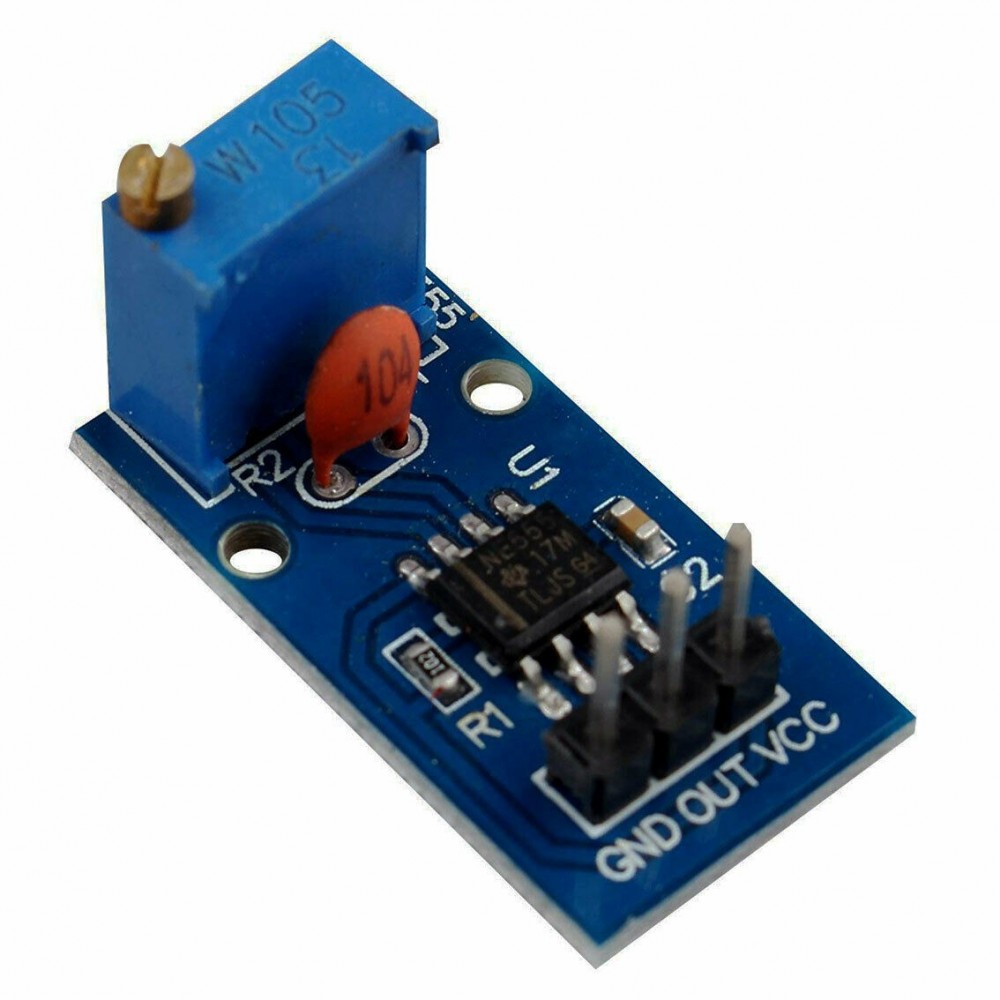

The NE555 Frequency Adjustable Pulse Generator Module is a square wave pulse generator based on the ubiquitous NE555 timer IC.
The module can be powered from a wide power supply range (4.5 to 12V) and will produce a continuous square wave output between 15Hz to 24KHz which can be adjusted via the on-board multi-turn potentiometer.
Useful for where an approximate frequency clock source is required such as for stepper motor step generation tone generation etc.
Specifications:
Supply voltage: 4.5V – 12V
Supply current: 3mA at 5V Vcc
Min freq (approx.): 15Hz 49% duty cycle at 5V Vcc
Max freq (approx.): 24KHz 89.4% duty cycle at 5V Vcc
Output voltage: 4.5V at 5Vcc / 11.5V at 12Vcc
Onboard chip: NE555
Dimensions: 25mm x 13mm
Contents:
1 x NE555 Frequency Adjustable Pulse Generator Module
