This protection board is for Lithium Polymer and Lithium Ion battereis only, it cannot be used for lithium iron phosphate batteries.

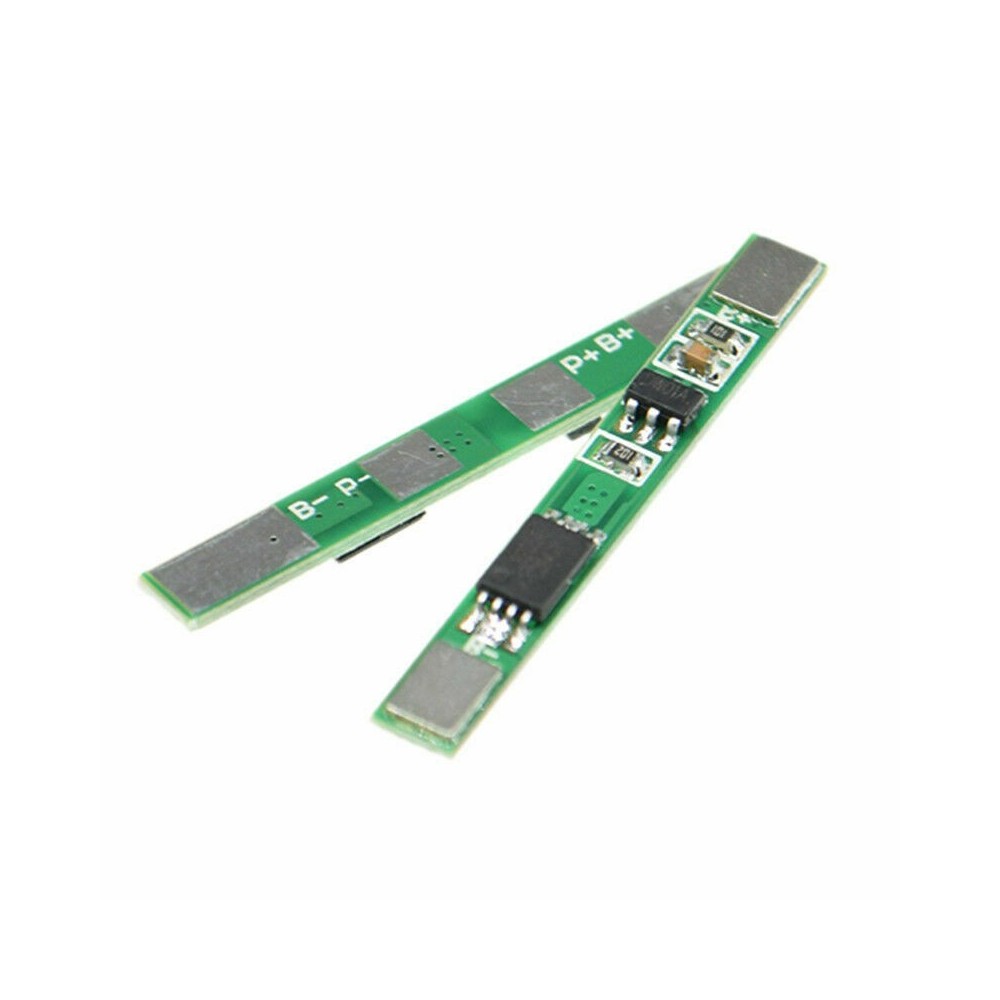

Module:1S Li-ion Lithium Battery Protection Board
Overcharge detection voltage per cell: 4.25±0.025V
Overcharge Lift the voltage per cell: 4.15±0.05V
Over discharge detection voltage per cell: 2.50±0.08V
Over discharge Lift the voltage: per cell: 3.00±0.1V
Overcurrent current: 5A
Remove protection condition automatic recovery, without activation
Protections:
Short circuit protection
Overcharge protection
Over-discharge protection
Overcurrent protection
Operating temperature: -40-85?
Size: Approx. 35*4*2mm
Package includes:
1 x 1S 2.5A Li-ion Lithium Battery 18650 Charger Protection Board
