Replaces Power Schottky Diodes
n Controls N-Channel MOSFETs
n 0.3?s Turn-Off Time Limits Peak Fault Current
n Wide Operating Voltage Range: 9V to 80V
n Smooth Switchover without Oscillation
n No Reverse DC Current
n Monitors VIN, Fuse, and MOSFET Diode
n Available in 14-Lead (4mm × 3mm) DFN,
16-Lead MS and SO Packages

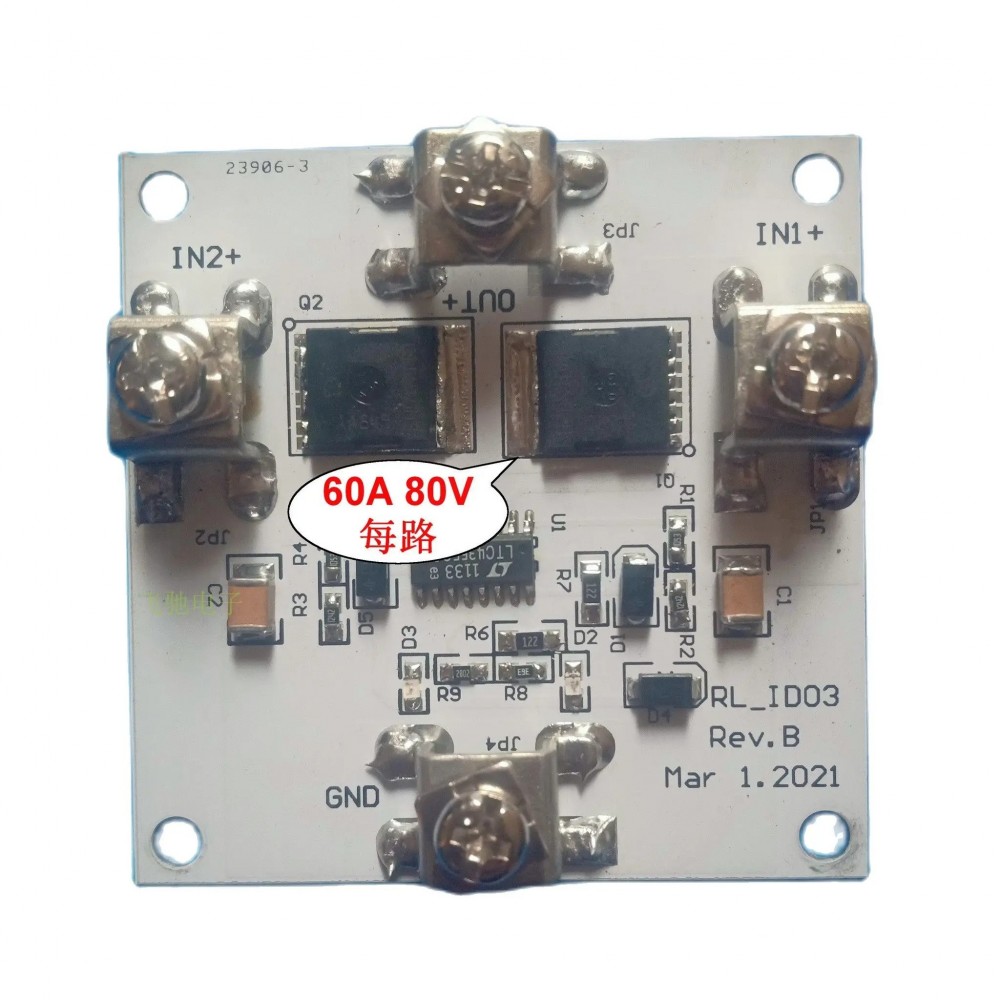

The default power input is 20V-80V. Each circuit is rated at 40A for long time operation. The maximum current is 100A. Pay attention to heat dissipation when working with 60A high current!
The MOSFET adopts IPT015N10N5 with high current and low internal resistance, the maximum on-resistance is 1.5 milliohm, the maximum current differential voltage of 60A is 90MV, and the power consumption is 5.4W
The circuit has anti-reverse connection protection and anti-surge protection.
