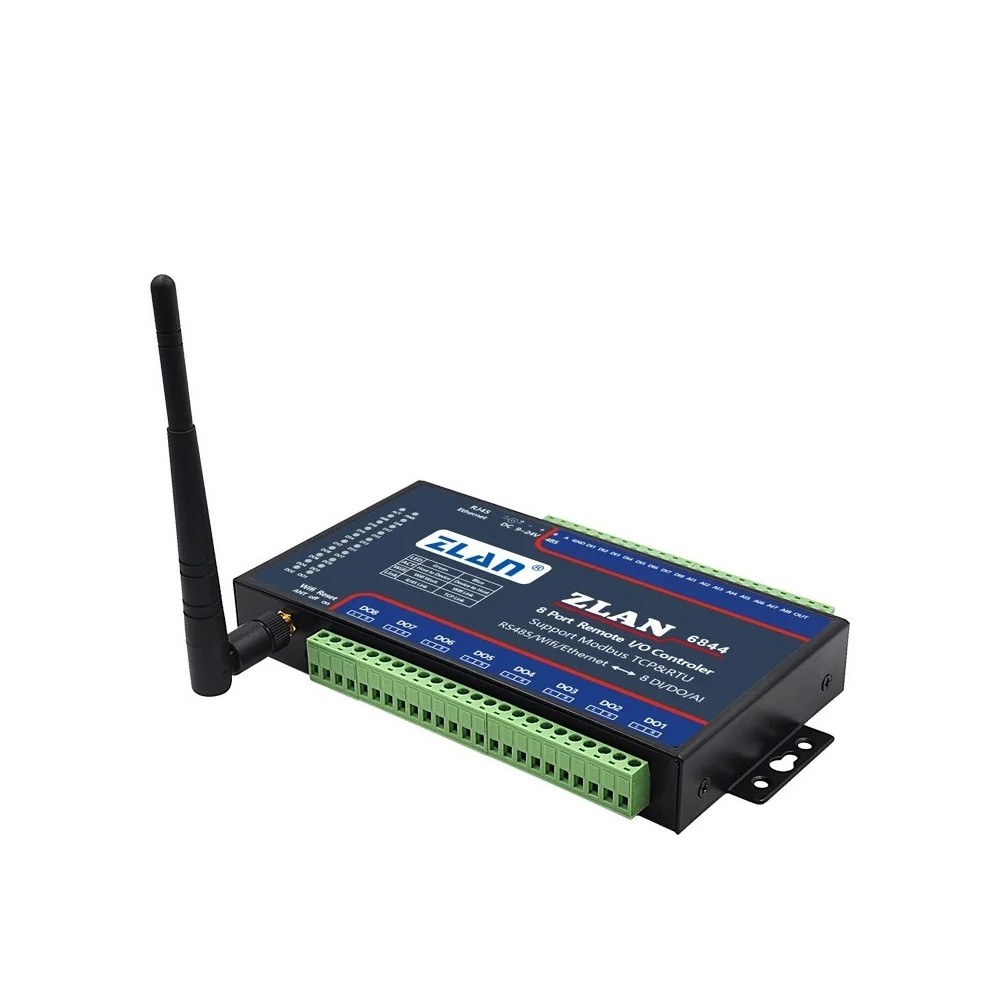

ZLAN6844 8 channels remote IO controller
Summary
ZLAN6844 IS 8 channels remote IO controller launched by Shanghai ZLAN after ZLAN6042. The controlled channels from 4 channels of 6042 extending to 8 channels, including 8 channels Digital Input(DI), Digital Output(DO), Analog Quantity Input(AI). The DI support dry contact and wet contact with opto-isolator, DO is relay output with 5A 250VAC or 5A 30VDC control ability, the before 4 channels of AI input support 0~5V voltage quantity input, the after 4 channels support 4~20mA current input, the accuracy is 10 bits. ZLAN6844 support 3 communication methods of Ethernet, RS485, Wifi.
ZLAN6844?Compared with 6842, 6844 adds WiFi interface, it can save the wiring trouble. Meanwhile it has Ethernet interface. WiFi can be neither as AP nor as SAT style to connect router.
Feature
1) 8 channels digital quantity input:
Support passive switch value (dry contact) and active level (wet contact).
2) 8 channels digital quantity output?
The output type is relay output (5A@AC250V/DC30V).
3) 8 channels analog quantity input: in default the first 4 channels are 0~5V voltage input, the after 4 channels are 4~20mA. If need customized, can modify any channels to the below 4 types:
(1)Current signal input: 4~20mA ( If you need analog input, pls contact us first and give us the application, because the current signal maybe have some problem of our product )
(2)Voltage signal input: 0~5V
(3)Voltage signal input: 0~10V
(4)Resistance impedance input: 0~10k or resistor-type temperature humidity sensor, etc.
4) 8 channels switch value input state and 8 channels switch value output state both have independent indicator, can immediately know switch input/output state through indicator.
5) Provide demo software Remote IO controlled by RS485 or TCP/IP, can demonstrate IO control and AI data acquisition for devices.
6) Can provide complete RS485 control instructions and Modbus TCP commands, convenient for integrated development of engineer.
7) ZLAN6844 is freely equipped Windows virtual port & device management tool ZLVircom, support ZLVircom, can one-key search and modify parameters.
Figure
Size:
L x W x H =9.2cm×19.7cm×2.5cm
Serial Port Parameter (ZLAN6802)
RS485 Interface, 1200~115200 (default 9600bps), 8 bits data bit, None parity, 1 stop bit
Software
Upper protocol:
MODBUS TCP/ MODBUS RTU
Low-level Communication:
Ethernet, RS485, Wifi
Relay Transmition Speed (Response Time)
ZLAN6842/ ZLAN6802:<30ms
AI Input Type
Current signal input: 4~20mA
Voltage signal input: 0~5V, 0~10V
Resistance impedance input: 0~10k or resistor-type temperature humidity sensor, etc.
Power Consumption (Relay in Non pull-in State)
ZLAN6802: <12mA@24V
ZLAN6842: <92mA @24V
ZLAN6844/6844N <220mA @24V
Environment
Running temperature:
-40~85?
Storage temp:
-45~165?
Humidity:
5~95%RH
Specifications
Material
+
