DSA CD controller can control Philips based on DSA interface, such as VCD CDT612, CDT713 and a full range of CDPRO.

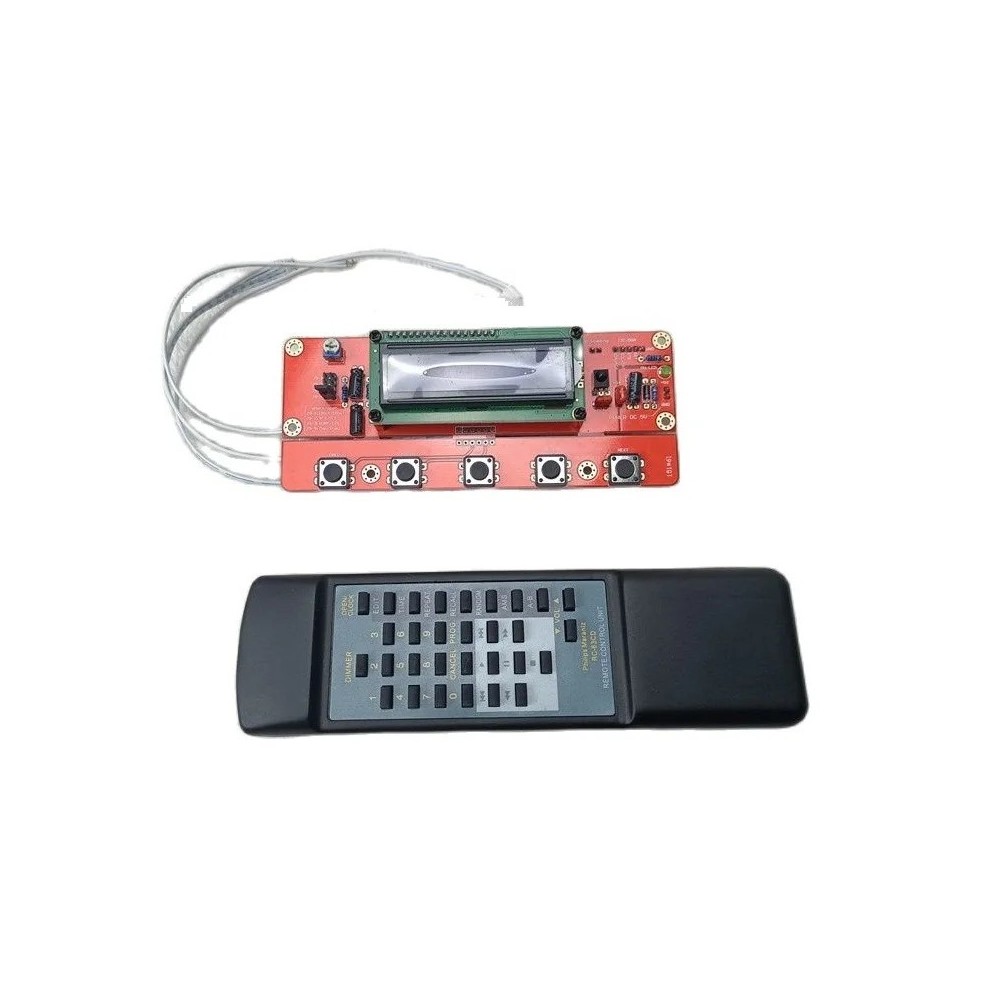

The product you purchased for this connection is shown below: (contains remote control).
Functional characteristics:
1, achieve full function CD playback,The core servo code provided by Philips is used to ensure the reliability and stability of the system.
2,2X16 blue background white LCD display, four playback time display mode: single playback time, single remaining time, full disc playback time, full disc remaining time.
3, equipped with CD original remote control.
4It supports two kinds of disc loading mechanism: tray and push.
5.I2S audio output format is optional.
I2S, 1FS/4FS
16 1FS/4FS
18 1FS/4FS
Baby pictures show:
The selection of functional configuration is as follows:
J9-1: open circuit is in and out mode, short circuit is pushing mode.
J9-2: the open circuit is I2S format, and the short circuit is format.
J9-3: open circuit is 1 times sampling, short circuit is 4 times over sampling.
The J9-4: format is useful. The open circuit is 16 bit data and the short circuit is 18 bit data.
Display effect
Remote-controlled +10 element with digital selectionsHttp://item.taobao.com/item.htm? Id=44043573620
The test results are as follows
The controller and servo connection are as follows:
If the lower left corner logo is shown,DSA servo boardThe DSA interface arrangement is basically fixed, so as long as the GND foot is determined, you can determine how to connect the DSA port of the movement and the DSA port of the control board.
In some cases, STB and RST need to be exchanged.
Specifications
Material
+
Origin
Mainland China
