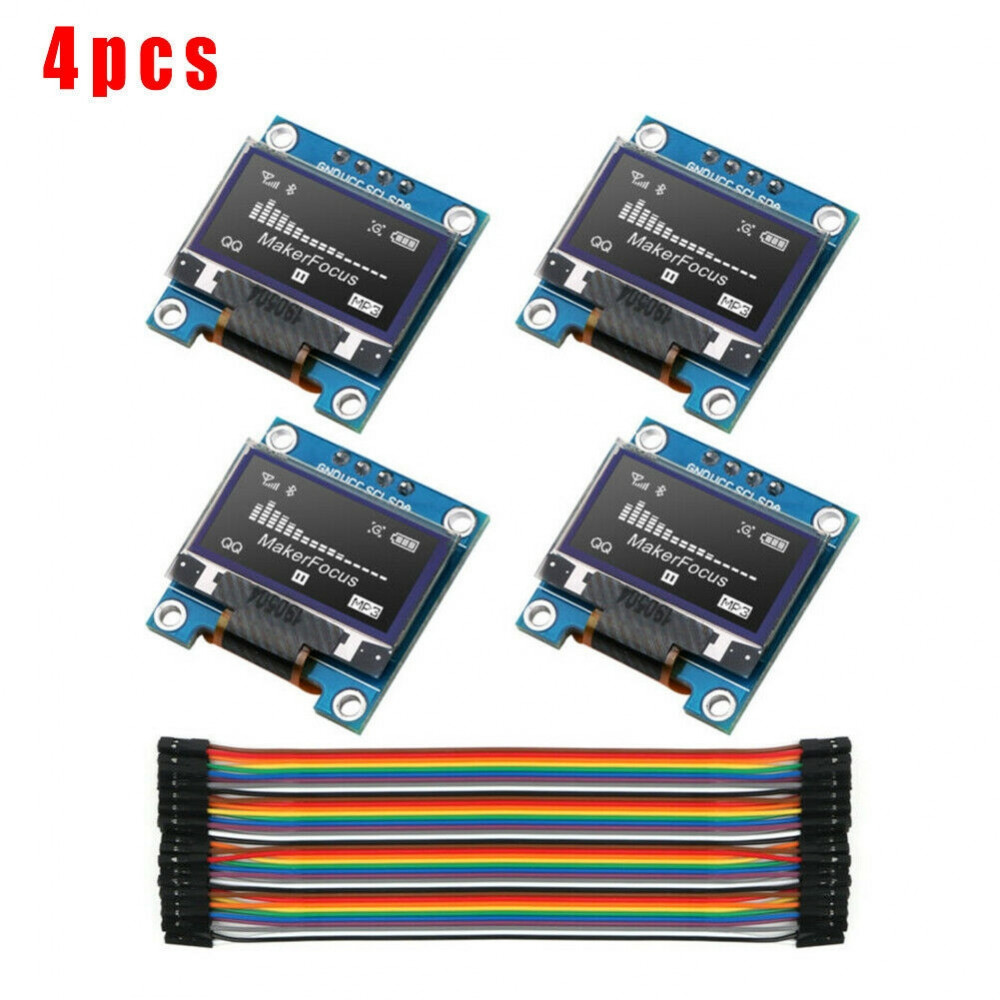

4pcs OLED LCD Display Module IIC I2C Interface With Du-pont Wire For Arduino
Item Details:
100% brand new and high quality
Made of high quality material, durable and practical to use
New version: GND pins are arranged in the first place instead of VCC, and the pins are already soldered and do not need to be soldered by yourself
Resolution: 128*64
OLED Display Color: White(As pictures show)
Viewing Angle: Greater Than 160 Degrees
Support Wide Voltage: 3.3V-5V DC
Driver IC: SSD1306
Communication IIC, Only Two I / O Ports
I2c IIC Serial Oled LCD LED Blue Display Module:
Size: 0.96 Inch(Approx.)
Resolution: 128*64
OLED Display Color: White(As pictures show)
Viewing Angle: Greater Than 160 Degrees
Supported Platforms: For Arduino, 51 Series, MSP430 Series,
STIM32 / 2, SCR chips
Low Power Consumption: 0.04W During Normal Operation
Support Wide Voltage: 3.3V-5V DC
Working Temperature: -30-80 Degrees
Volume: 27 mm * 27 mm * 4.1 mm(Approx.)
Driver IC: SSD1306
Communication: IIC, Only Two I / O Ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight
Interface:
GND: Ground
VCC: 3.3-5V
SCL: Serial Clock
SDA: Serial Data
Du-pont Wire:
Female to Female
Quantity: 40pcs
Length: 20cm/7.87 Inch(Approx.)
2.54mm 1p-1p Pin Head.
Package Contents:
4 * 0.96 Inch I2C White Display Module
40 * 20CM Du-Pont Wires Female to Female
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
