mini360 - 1db Mini360 DC-DC bakkonverter átalakító 4,75V-23V-tól 1V-17V-ig 17x11x3,8mm SG125-SZ
mini360 - 1db Mini360 DC-DC bakkonverter átalakító 4,75V-23V-tól 1V-17V-ig 17x11x3,8mm SG125-SZ
50 Ft
41% megtakarítás
84 Ft
Nincs adó
T

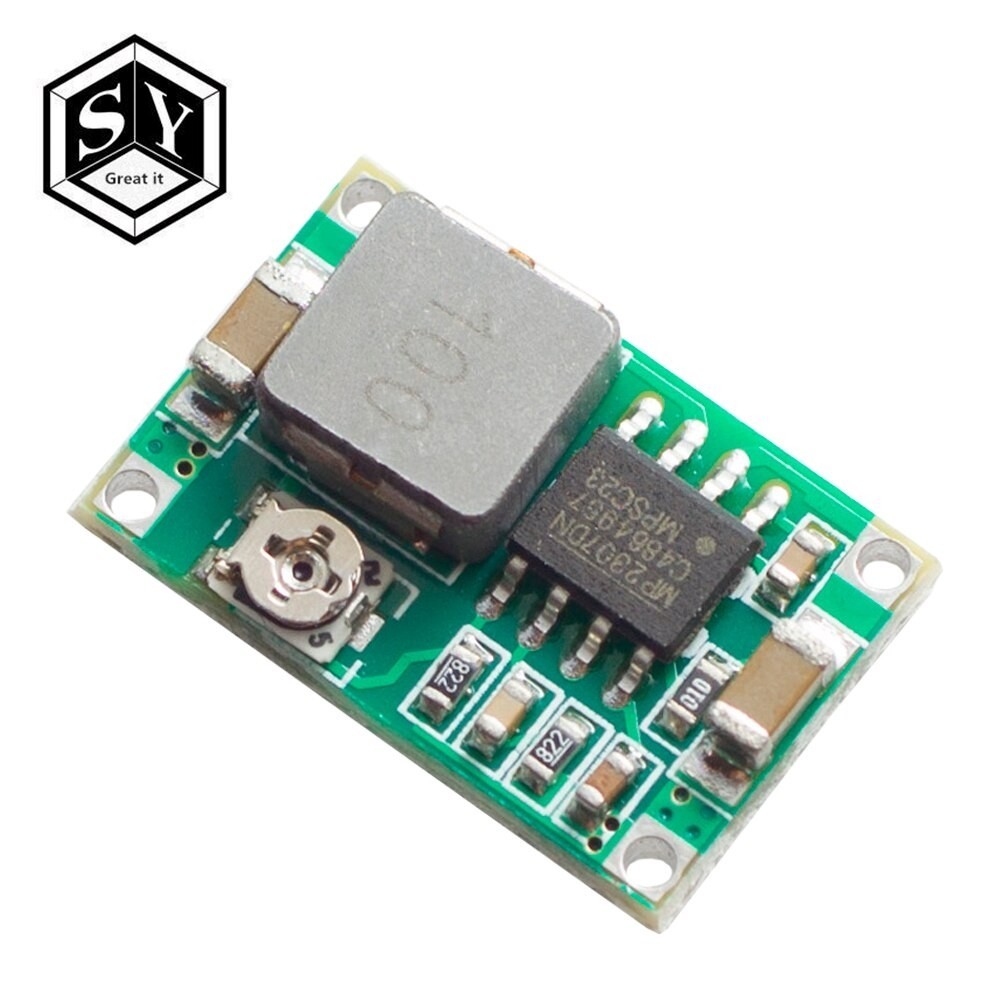

Model Name:Mini-360 (ultra small size DC-DC synchronous rectifier buck module)
Module Properties:non-isolated buck
Rectification:synchronous rectification
Input voltage:4.75V-23V
Output voltage:1.0V-17V
Output Current:lowering the value of 3A, long 1.8A
Conversion efficiency:96% (maximum)
Switching Frequency:340KHz
Output ripple:30mV (no-load)
Load regulation:± 0.5%
Voltage regulation:± 2.5%
Working temperature:-40 Celsius to 85 Celsius
Features:Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
42239
step down module
Model Name:Mini-360 (ultra small size DC-DC synchronous rectifier buck module)
Module Properties:non-isolated buck
Rectification:synchronous rectification
Input voltage:4.75V-23V
Output voltage:1.0V-17V
Output Current:lowering the value of 3A, long 1.8A
Conversion efficiency:96% (maximum)
Switching Frequency:340KHz
Output ripple:30mV (no-load)
Load regulation:± 0.5%
Voltage regulation:± 2.5%
Working temperature:-40 Celsius to 85 Celsius
Features:Use integrally molded power inductor and synchronous rectifier control chip, smaller and more efficient.
42239
step down module
