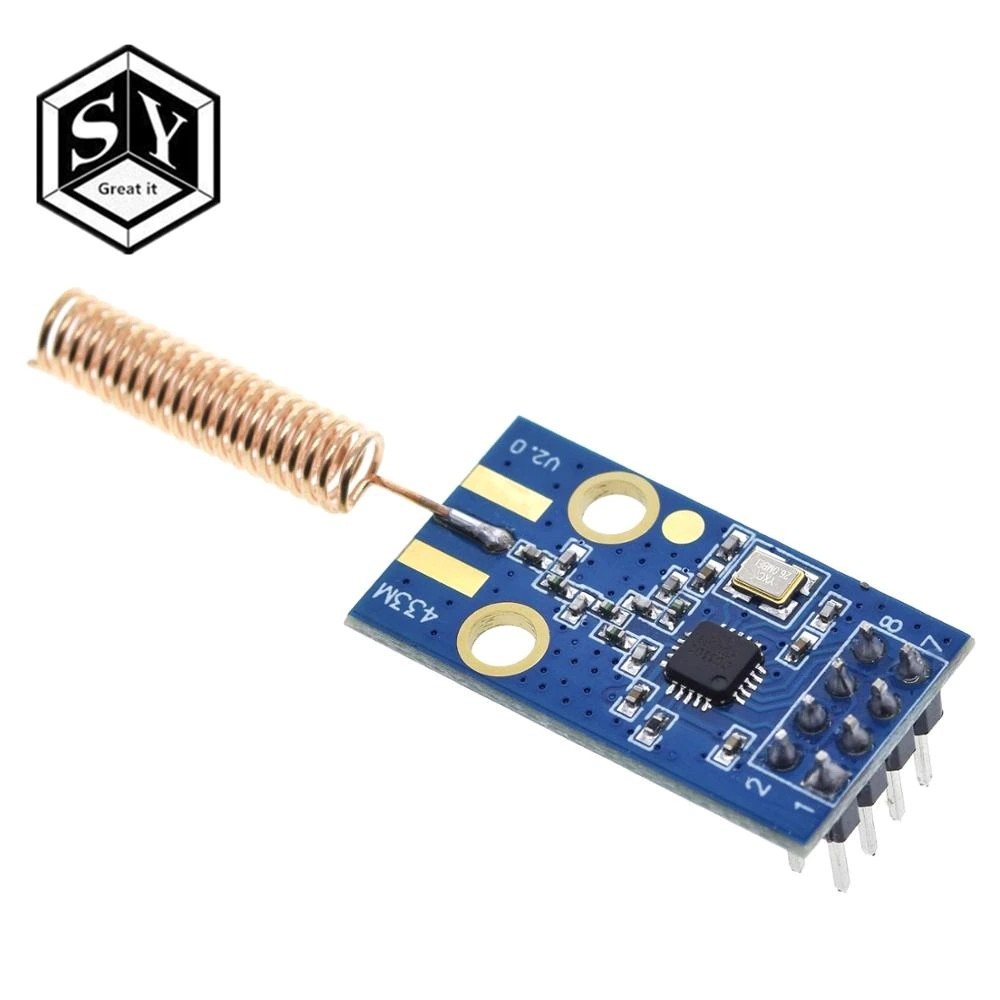

KÉK - CC1101 vezeték nélküli adó-vevő modul 433MHz 2500 NRF távvezérlő kártya OOK ASK MSK moduláció programozható

KÉK - CC1101 vezeték nélküli adó-vevő modul 433MHz 2500 NRF távvezérlő kártya OOK ASK MSK moduláció programozható

142 Ft 42% megtakarítás
245 Ft
Nincs adó
Descriptions:

High sensibility,sight distance reliable transmission distance up to 350m;
Adopt FSK modulation,support OOK/ASK/MSK modulation;
Carrier frequency 433MHz,other ISM band such as 315M/868M/915M can be made;
Programmable control data transfer rate,as high as 500kbps;
Programmable control output power can reach 11dBm for all support band;
Can flexibly allocate various communication channels,fast frequency switching can meet the need of frequency hopping system;
Low power consumption:Power 11mw,receive current <15mA ,emission current <25mA ,dormancy current 2uA ;
Data buffer,sudden data transmission,data RSSI output,link quality indication;
Support automatic cleaning channel access(CCA) before transmission,carrier detect system;
Powerful digital features,can use cheap micro controller to get high performance RF system;
10K rate in 350m



Package included:

1PCS x CC1101 wireless module /433MHz/2500/NRF 350m Distance Transmission TOP
Wireless Module



Mennyiség
Add to Compare
Add to Wishlist



Biztonsági feltételek



Szállításii feltételek



Visszaküldési feltételek

A cím elején, valamint az első képen szereplő szín/minta/méret/típus kerül kiszállításra!
CC1101 Wireless Transceiver Module 433MHz 2500 NRF Distance Transmission Board OOK ASK MSK Modulation Programable Control 2500
Descriptions:

High sensibility,sight distance reliable transmission distance up to 350m;
Adopt FSK modulation,support OOK/ASK/MSK modulation;
Carrier frequency 433MHz,other ISM band such as 315M/868M/915M can be made;
Programmable control data transfer rate,as high as 500kbps;
Programmable control output power can reach 11dBm for all support band;
Can flexibly allocate various communication channels,fast frequency switching can meet the need of frequency hopping system;
Low power consumption:Power 11mw,receive current <15mA ,emission current <25mA ,dormancy current 2uA ;
Data buffer,sudden data transmission,data RSSI output,link quality indication;
Support automatic cleaning channel access(CCA) before transmission,carrier detect system;
Powerful digital features,can use cheap micro controller to get high performance RF system;
10K rate in 350m



Package included:

1PCS x CC1101 wireless module /433MHz/2500/NRF 350m Distance Transmission TOP
Wireless Module
