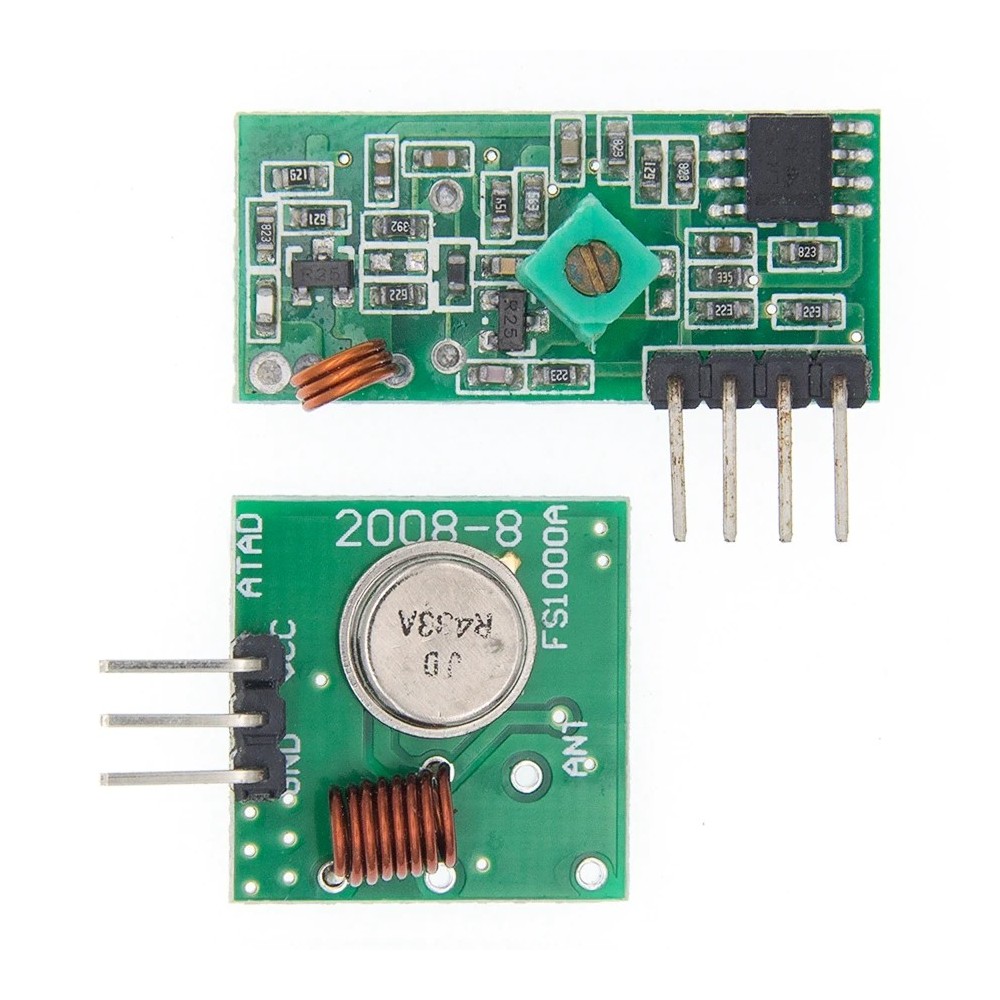

433Mhz RF vezeték nélküli adó modul és vevő készlet 5V DC 433MHZ vezeték nélküli Arduino Raspberry Pi /ARM/MCU WL barkácskészlethez
433Mhz RF Wireless Transmitter Module and Receiver Kit 5V DC 433MHZ Wireless For Arduino Raspberry Pi /ARM/MCU WL Diy Kit

Receiver
- Model:MX-05V
- Voltage:DC5V
- Current:4MA
- Frequency:433.92MHZ
- Sensitivity:-105DB
- Antenna:32CM single core wire,heliciform shaped
- Size:30*14*7mm
Transmitter:
- Model:MX-FS-03V
- Transmitter distance:20-200Meters(influenced the voltage)
- Voltage:3.5-12V
- Size:19*19mm
- Working mode:AM
-  Transmitter speed:4KB/S
- Transmitter power:10mW
- Frequency:433M
- Attenna:25cm Single core wire or mutil-core wire
- Pin arrangement: left-right(DATA;VCC;GND)
Applications:
- Remote controller,receive modulr,car bugular alarm,Rolling door,window,remote control LED, Amplifer and so on.
Note:
- VCC Voltage should be comply with working voltage
- Antenna is very important for working voltage,and the length of the antenna is 17cm
- the placement of the antenna is also critical for the performance of receiver, unbend the antenna when you install it , and avoid shilder and high voltage
