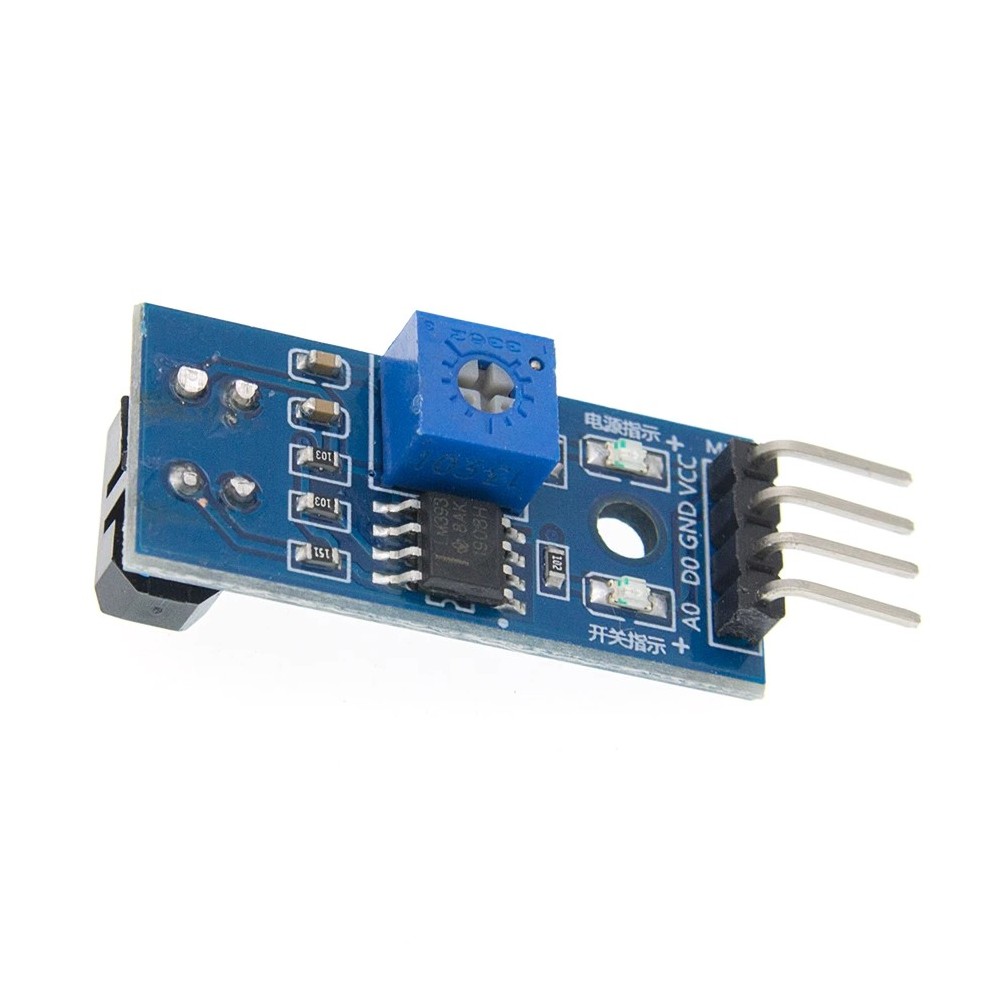

TCRT5000 infravörös fényvisszaverő érzékelő IR fotoelektromos kapcsoló akadályvonal nyomkövető modul Arduino dióda trióda kártyához 3.3v
TCRT5000 Infrared Reflective Sensor IR Photoelectric Switch Barrier Line Track Module For Arduino Diode Triode Board 3.3v
Disclaimer:
Use for:
The electricity meter pulse data sampling
Fax machine, shredder paper detection
Obstacle detection
Black and white line detection

Module features:

Using infrared reflection sensors TCRT5000
Test reflection distance: 1mm to 25mm
Clean and 3, the comparator output, signal waveform, driving ability is strong, for more than 15 ma.
With many adjustable precision potentiometer to adjust sensitivity
The working voltage of 3.3V to 5V
Output form: digital switch output (0 and 1)
Has a fixed bolt hole, convenient installation
Small board PCB size: 3.2cm x 1.4cm
The LM393, use of wide voltage comparator
Size:3.1x1.3cm(approx)

Module functions is introduced:

TCRT5000 sensor of infrared emission diode constantly launch infrared, the infrared ray is emitted when the intensity of reflected back has not been reflected or but is not big enough, the light activated triode has been in the off state, the output end of the module at this time for the high level, indicating diode has been put out state; Detected objects appear within the scope of testing, infrared light is reflected back and strength is enough big, light activated triode saturation, at this time the output of the module for the low level, instructs the diode lights.
